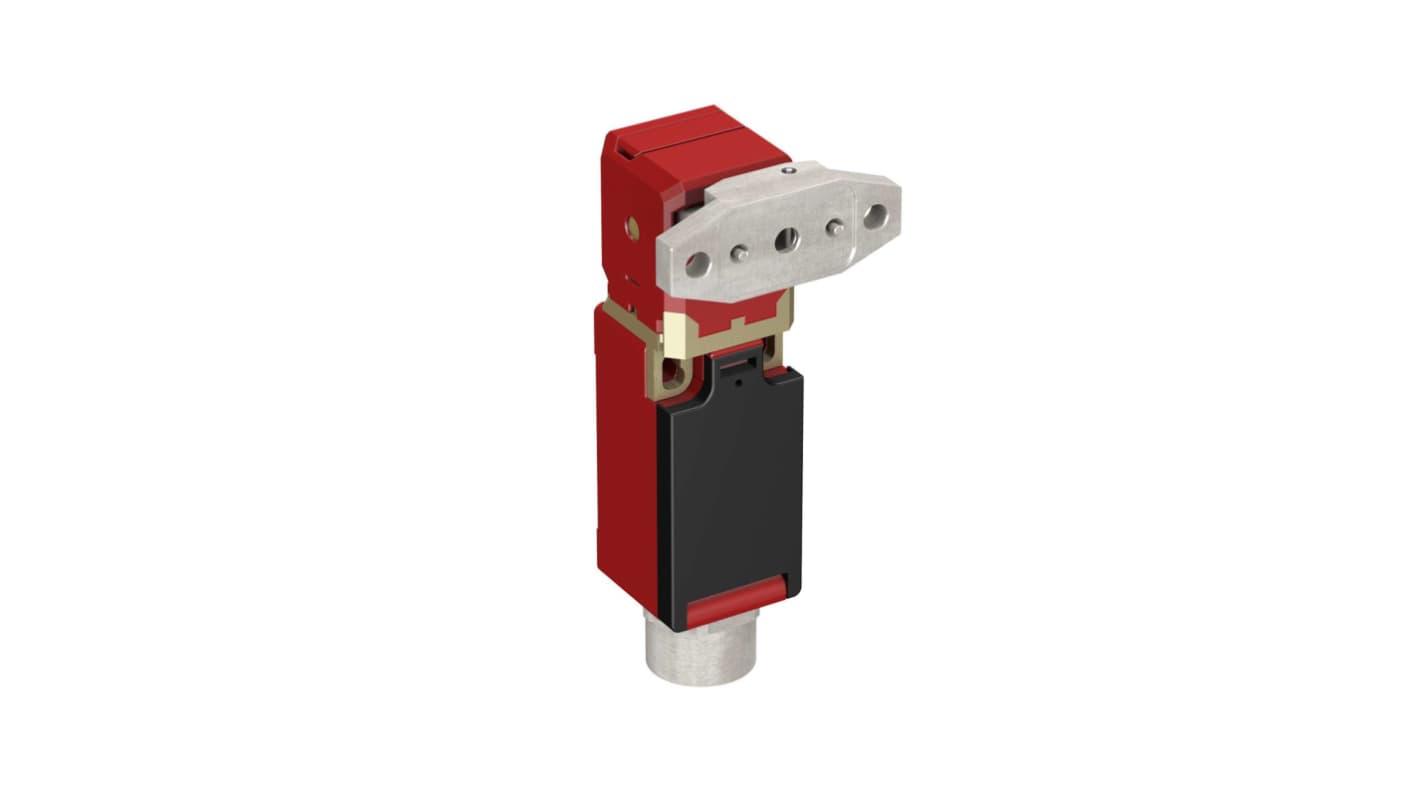

Banner SI-LS42 Safety Interlock Switch Actuator Included, Thermoplastic, Interlock
- RS Stock No.:
- 292-764
- Mfr. Part No.:
- SI-LS100MRFF
- Manufacturer:
- Banner
Subtotal (1 unit)*
PHP11,833.44
(exc. VAT)
PHP13,253.45
(inc. VAT)
FREE delivery for orders over ₱5,000.00
Stocked by manufacturer
- Ready to ship from December 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP11,833.44 |
*price indicative
- RS Stock No.:
- 292-764
- Mfr. Part No.:
- SI-LS100MRFF
- Manufacturer:
- Banner
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Safety Interlock Switch | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Safety Contacts | 2 | |
| Housing Material | Thermoplastic | |
| Series | SI-LS42 | |
| Switch Contact Current | 10A | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP65 | |
| Contact DC Voltage | 250V dc | |
| Contact AC Voltage | 240V ac | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 80°C | |
| Length | 100mm | |
| Number of Head Directions | 4 | |
| Depth | 30.5mm | |
| Standards/Approvals | CE, UL, EN 50047, NFPA, ISO/IEC, IEC 60947-5-1, UKCA, ANSI, CSA, OSHA | |
| Width | 22mm | |
| Conduit Entry | M20 x 1.5 | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Safety Interlock Switch | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Safety Contacts 2 | ||
Housing Material Thermoplastic | ||
Series SI-LS42 | ||
Switch Contact Current 10A | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP65 | ||
Contact DC Voltage 250V dc | ||
Contact AC Voltage 240V ac | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 80°C | ||
Length 100mm | ||
Number of Head Directions 4 | ||
Depth 30.5mm | ||
Standards/Approvals CE, UL, EN 50047, NFPA, ISO/IEC, IEC 60947-5-1, UKCA, ANSI, CSA, OSHA | ||
Width 22mm | ||
Conduit Entry M20 x 1.5 | ||
- COO (Country of Origin):
- DE
The Banner Advanced safety interlock switch designed to enhance workplace safety and ensure compliance with international standards. Offering a robust limit switch design, this model features positive opening safety contacts that are not reliant on springs, effectively reducing the risk of mechanical failure. With a low-profile design, it fits conveniently into restricted spaces, and its tough, glass-reinforced thermoplastic housing assures durability in industrial environments.
Two independent operating elements to minimise tampering risks
Accommodates lowprofile installations for challenging space constraints
Designed to withstand a wide temperature range for versatile applications
