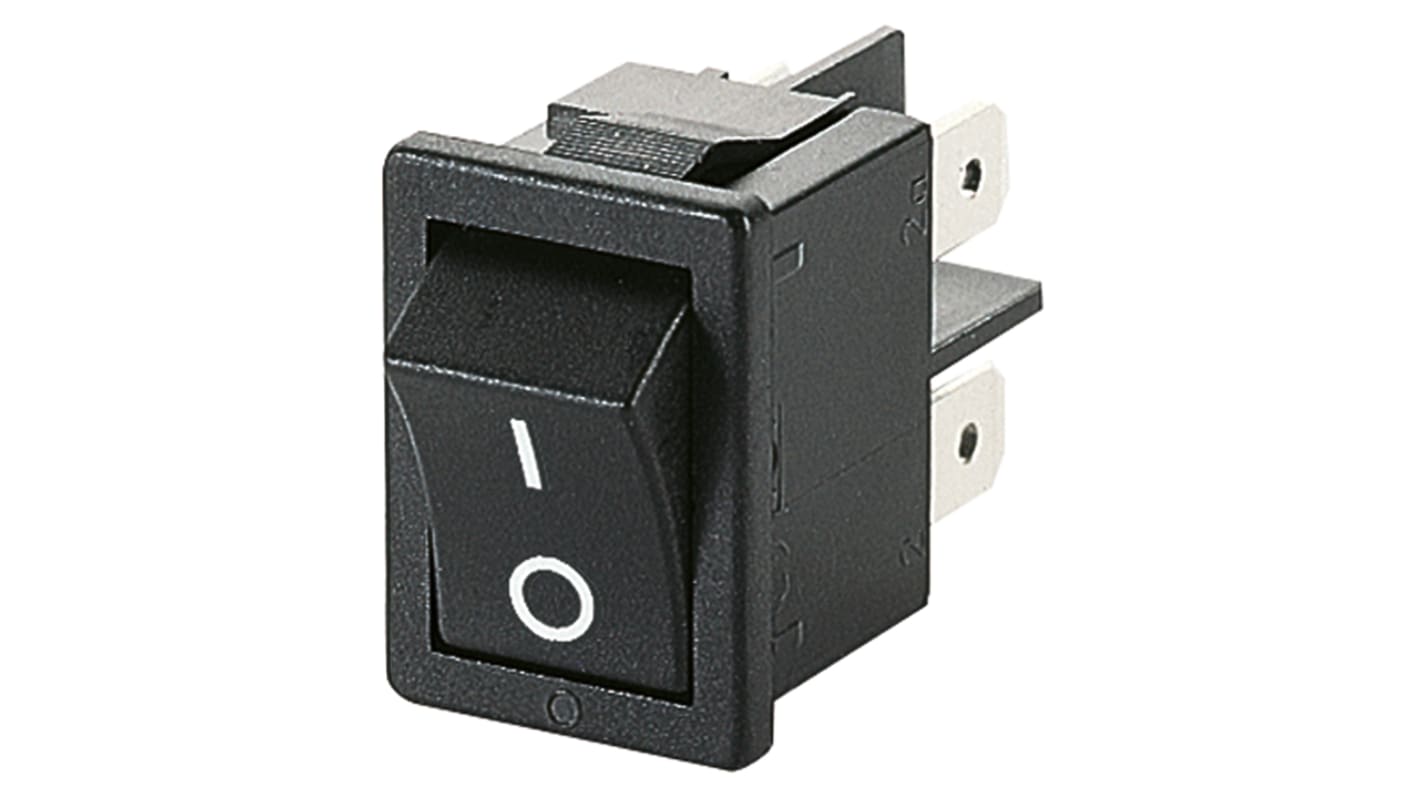

Marquardt DPST, On-Off On-On Rocker Switch Panel
- RS Stock No.:
- 823-5162
- Mfr. Part No.:
- 01858.0103-01
- Manufacturer:
- Marquardt
Bulk discount available
Subtotal (1 unit)*
PHP313.37
(exc. VAT)
PHP350.97
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 19 | PHP313.37 |
| 20 - 49 | PHP303.97 |
| 50 - 99 | PHP294.58 |
| 100 - 249 | PHP288.30 |
| 250 + | PHP282.03 |
*price indicative
- RS Stock No.:
- 823-5162
- Mfr. Part No.:
- 01858.0103-01
- Manufacturer:
- Marquardt
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marquardt | |
| Product Type | Rocker Switch | |
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Legend | On-Off | |
| Housing Material | Polyamide | |
| Panel Cutout Size | 18 x 18.6 mm | |
| Switch Contact Current | 10A | |
| Illuminated | No | |
| Actuator Colour | Black | |
| Terminal Type | Terminal | |
| Mount Type | Panel | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -20°C | |
| Contact DC Voltage | 15V dc | |
| Contact AC Voltage | 250V ac | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | VDE, UL, RoHS, ENEC, CSA, CE | |
| Legend Text Colour | White | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand Marquardt | ||
Product Type Rocker Switch | ||
Contact Configuration DPST | ||
Switch Operation On-Off | ||
Legend On-Off | ||
Housing Material Polyamide | ||
Panel Cutout Size 18 x 18.6 mm | ||
Switch Contact Current 10A | ||
Illuminated No | ||
Actuator Colour Black | ||
Terminal Type Terminal | ||
Mount Type Panel | ||
IP Rating IP40 | ||
Minimum Operating Temperature -20°C | ||
Contact DC Voltage 15V dc | ||
Contact AC Voltage 250V ac | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals VDE, UL, RoHS, ENEC, CSA, CE | ||
Legend Text Colour White | ||
Mechanical Life 100000Operations | ||
Marquardt 1858 Series Rocker Switches
Marquardt 1858 series of miniature double pole single throw rocker switches. The non illuminated 1858 rocker switches are suitable for use in Class II appliances and are available in a choice of PCB mount or 4.8mm Faston/Quick Connect style tab terminals with or without abrasion-proof on-off legends. The miniature rocker switch material is immediately self-extinguishing to UL94V-0 and has a silk matt surface finish that snap fits into panel cut-outs with a panel thickness of between 0.75 and 3mm, the fixing ribs on the switch housing ensures a tight fit. These rocker switches have silver contacts with a DPST (on-off) switching format, a contact resistance <100mΩ and an insulation resistance of >100MΩ.
A transparent PVC cover is available to protect the 1858 series of rocker switches from dust and water ingression and to give the rocker switch actuator an IP64 rating.
High inrush current (capacitive) up to 100A
Contact distance ≥3mm
Operating force ≤5N
UL 94 V-0 flammability rated
Conforms to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30
Marquardt Rocker Switches
Note
See stock number 133-6287 for a suitable splashproof PVC cover.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
