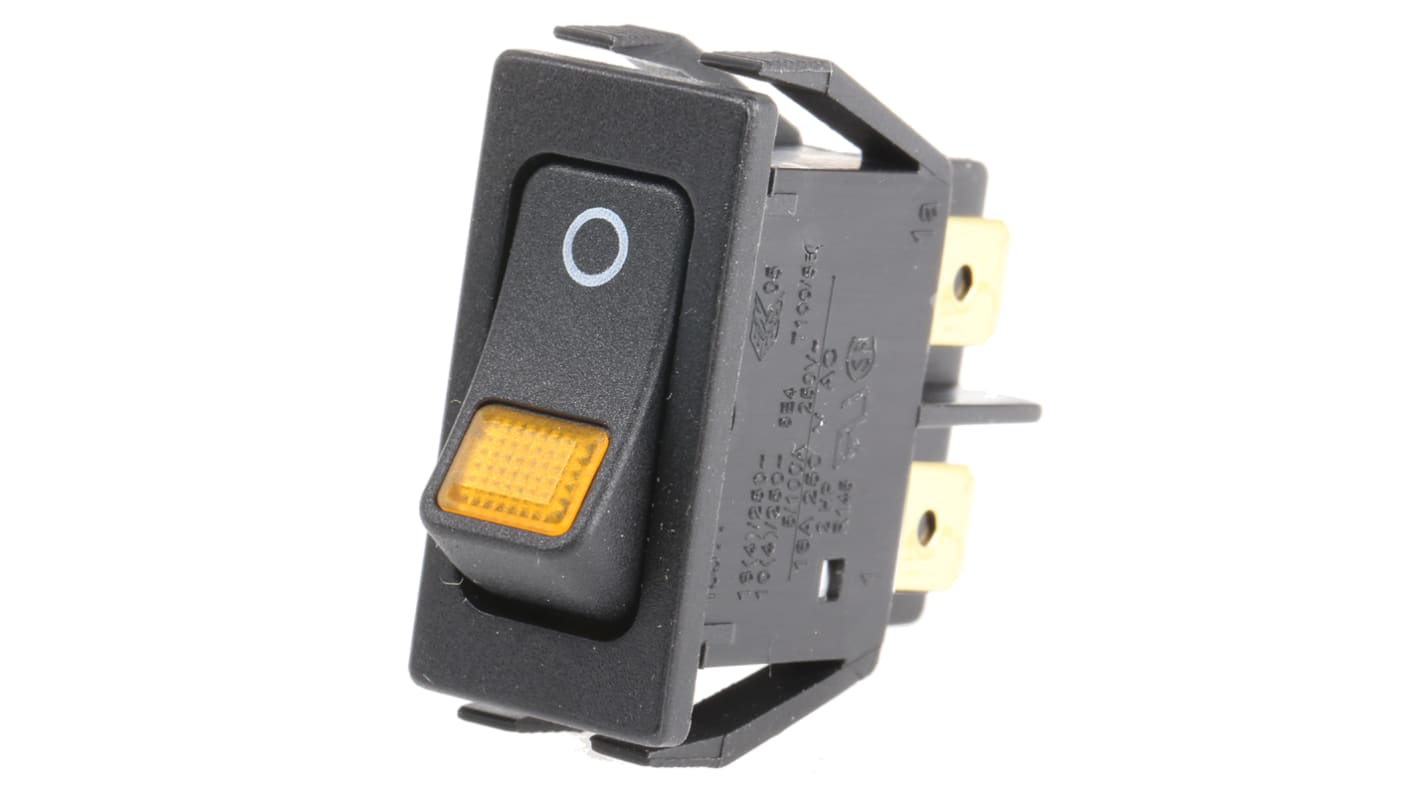

Marquardt Illuminated DPST, On-Off On-Off Rocker Switch Panel
- RS Stock No.:
- 607-7309
- Distrelec Article No.:
- 135-03-653
- Mfr. Part No.:
- 1555.3104
- Manufacturer:
- Marquardt
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP436.20
(exc. VAT)
PHP488.54
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 284 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 49 | PHP436.20 |
| 50 - 99 | PHP423.12 |
| 100 - 249 | PHP410.02 |
| 250 - 499 | PHP401.29 |
| 500 + | PHP392.55 |
*price indicative
- RS Stock No.:
- 607-7309
- Distrelec Article No.:
- 135-03-653
- Mfr. Part No.:
- 1555.3104
- Manufacturer:
- Marquardt
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marquardt | |
| Contact Configuration | DPST | |
| Product Type | Rocker Switch | |
| Switch Operation | On-Off | |
| Legend | Off (Symbol), On (Symbol) | |
| Housing Material | Polyamide | |
| Panel Cutout Size | 27.2 x 12.2 mm | |
| Switch Contact Current | 16A | |
| Illuminated | Yes | |
| Series | 1552 | |
| Actuator Colour | Black | |
| Mount Type | Panel | |
| Terminal Type | Quick Connect | |
| IP Rating | IP40 | |
| Contact AC Voltage | 250V ac | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Rectangular | |
| Maximum Operating Temperature | 100°C | |
| Switch Configuration | On-Off | |
| Standards/Approvals | UR, EN, CSA | |
| Legend Text Colour | White | |
| Select all | ||
|---|---|---|
Brand Marquardt | ||
Contact Configuration DPST | ||
Product Type Rocker Switch | ||
Switch Operation On-Off | ||
Legend Off (Symbol), On (Symbol) | ||
Housing Material Polyamide | ||
Panel Cutout Size 27.2 x 12.2 mm | ||
Switch Contact Current 16A | ||
Illuminated Yes | ||
Series 1552 | ||
Actuator Colour Black | ||
Mount Type Panel | ||
Terminal Type Quick Connect | ||
IP Rating IP40 | ||
Contact AC Voltage 250V ac | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Rectangular | ||
Maximum Operating Temperature 100°C | ||
Switch Configuration On-Off | ||
Standards/Approvals UR, EN, CSA | ||
Legend Text Colour White | ||
- COO (Country of Origin):
- TN
Marquardt 1550 Series Rocker Switches
Marquardt 1550 series single and double pole rocker switches. The 1550 rocker switches are suitable for use in Class II appliances and are available with non-illuminated or window illuminated (red, amber or green) 230 V ac neon actuators. The 1550 rocker switches have silver contacts with SPST or DPST (on-off) switching formats, a contact resistance <100 mΩ and an insulation resistance of >100 mΩ. Electrical connection is made via the 6.3 mm Faston/Quick Connect style terminals.
Illuminated or non-illuminated actuators with or without power on/off symbols
High current rating, up to 16 A
High inrush current (capacitive) up to 100 A
Contact distance ≥3 mm
Operating force 3 to 5N
UL 94 V-2 flammability rated (apart from stock numbers 607-7286 and 103-3871 which are UL 94 V-0 rated)
Marquardt Rocker Switches
Note
Stock numbers 607-7286 and 103-3871 conform to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30.
The current rating and life expectancy figures quoted are nominal, see datasheet for further ratings.
The current rating and life expectancy figures quoted are nominal, see datasheet for further ratings.
Approvals
UL; CSA; ENEC
