JST, R Uninsulated Ring Terminal, 8 mm Stud Size 4 AWG 4 AWG Wire Size, Grey
- RS Stock No.:
- 838-8349
- Mfr. Part No.:
- 22-8
- Manufacturer:
- JST

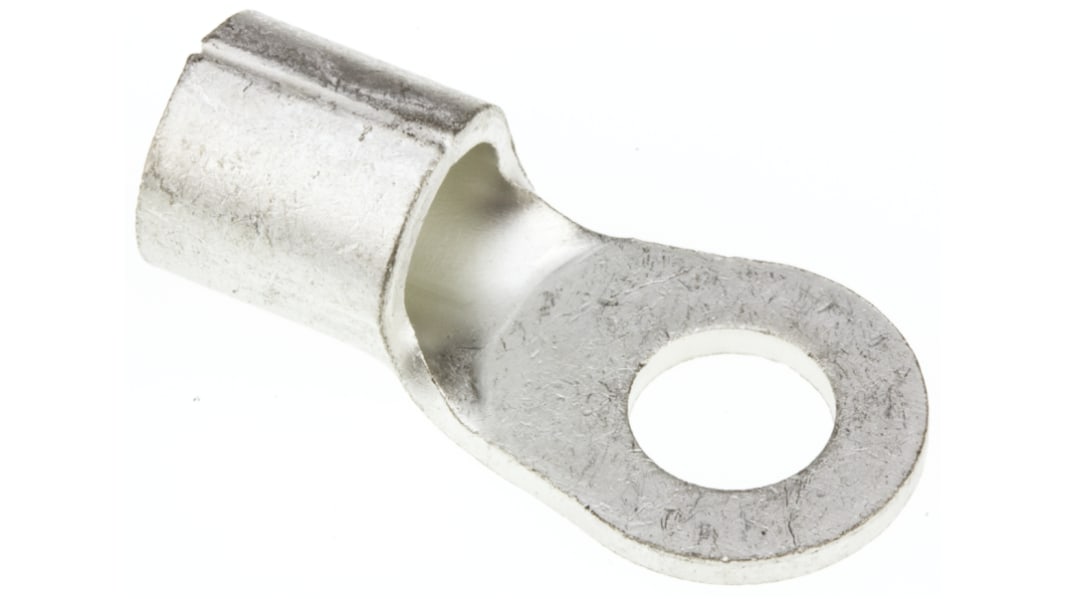

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
PHP323.28
(exc. VAT)
PHP362.07
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 40 | PHP32.328 | PHP323.28 |
| 50 - 90 | PHP31.359 | PHP313.59 |
| 100 - 240 | PHP30.419 | PHP304.19 |
| 250 - 490 | PHP29.507 | PHP295.07 |
| 500 + | PHP28.621 | PHP286.21 |
*price indicative
- RS Stock No.:
- 838-8349
- Mfr. Part No.:
- 22-8
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Ring Terminal | |
| Series | R | |
| Insulation | Uninsulated | |
| Outer Ring Diameter | 16.5mm | |
| Inner Ring Diameter | 8.4mm | |
| Minimum Wire Size AWG | 4AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Overall Length | 33.7mm | |
| Stud Size | 8 mm | |
| Colour | Grey | |
| Thickness | 1.8mm | |
| Standards/Approvals | UL E42024, RoHS, CSA LR20812 | |
| Minimum Wire Size mm² | 16.78mm² | |
| Maximum Wire Size mm² | 26.66mm² | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Ring Terminal | ||
Series R | ||
Insulation Uninsulated | ||
Outer Ring Diameter 16.5mm | ||
Inner Ring Diameter 8.4mm | ||
Minimum Wire Size AWG 4AWG | ||
Maximum Wire Size AWG 4AWG | ||
Overall Length 33.7mm | ||
Stud Size 8 mm | ||
Colour Grey | ||
Thickness 1.8mm | ||
Standards/Approvals UL E42024, RoHS, CSA LR20812 | ||
Minimum Wire Size mm² 16.78mm² | ||
Maximum Wire Size mm² 26.66mm² | ||
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are MADE from tin-plated oxygen-free copper.
JST Terminals
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
