    TE Connectivity 1.27mm 10 Way Male Micro-MaTch IDC to Male Micro-MaTch IDC Flat Ribbon Cable, Grey Sheath, 75.5mm Length

    RS Stock No.:
    123-2153
    Mfr. Part No.:
    2205063-1
    Manufacturer:
    TE Connectivity
    TE Connectivity

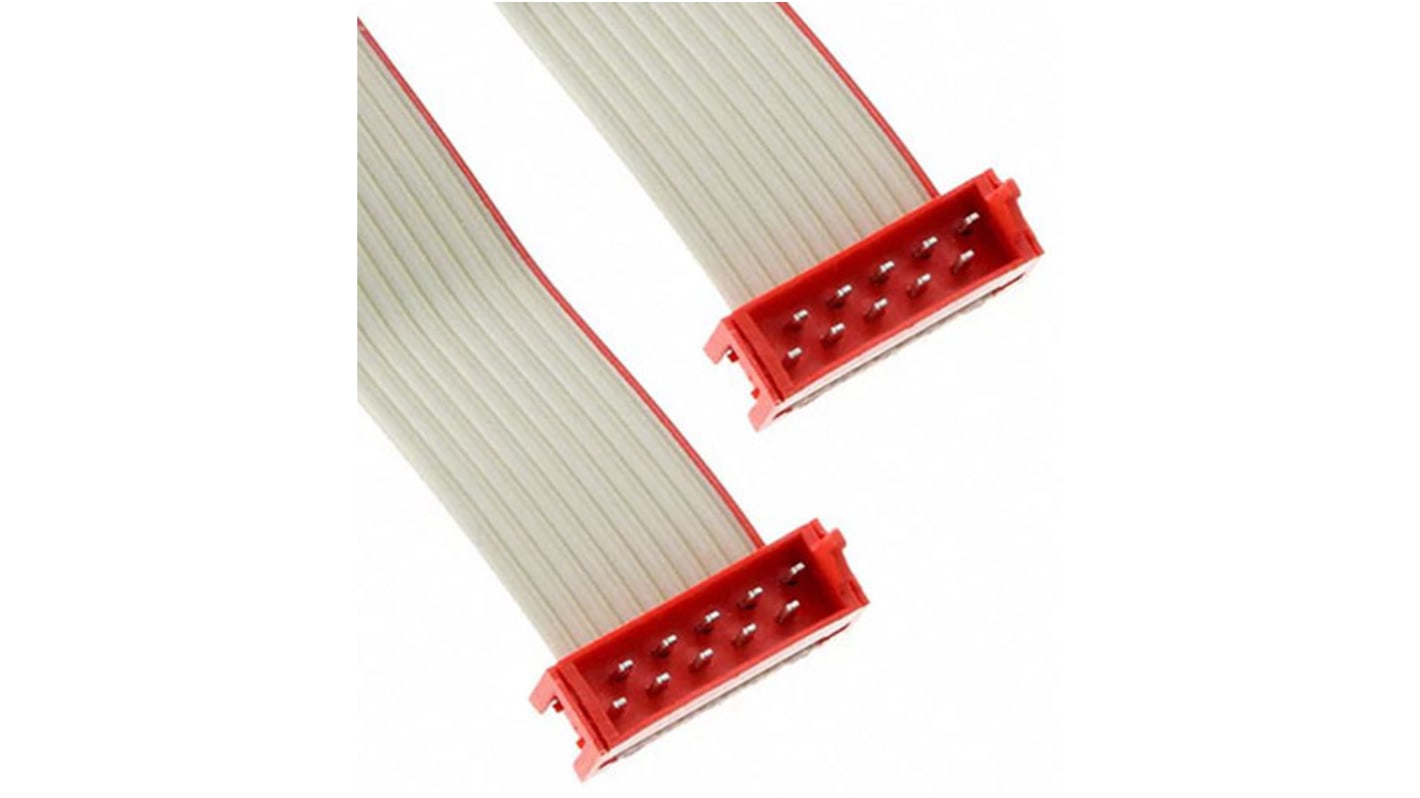

    This image is representative of the product range

    View all Ribbon Cable
    68 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
    Add to Basket
    units

    Added

    Price Each

    Was PHP186.81

    You pay

    PHP140.11

    (exc. VAT)

    PHP156.92

    (inc. VAT)

    unitsPer Unit
    1 - 9PHP140.11
    10 - 24PHP135.91
    25 - 49PHP131.83
    50 - 99PHP127.88
    100 +PHP124.05
    RS Stock No.:
    123-2153
    Mfr. Part No.:
    2205063-1
    Manufacturer:
    TE Connectivity

    Legislation and Compliance


    Product Details

    TE Connectivity Micro-MaTch IDC Ribbon Cable Assemblies, Male-on-Wire to Male-on-Wire


    A range of Micro-MaTch IDC ribbon cable assemblies for use in wire to board interconnections. These Micro-MaTch ribbon cable assembles are terminated both ends with a Male-on-Wire Micro-MaTch connector. The Micro-MaTch range of connectors have a compact, space saving design with a 1.27mm pitch. The IDC contacts have a contact spring system that prevents fretting corrosion. A positioning spring on the female contact absorbs movement between the male and female contacts caused by vibration and thermal expansion. Prevention of movement on the contact spot enables a gas tight connection to be made which makes the contact spring system fretting resistant. The contacts are fully protected by red polyester housings. These Micro-MaTch IDC ribbon cable assemblies are available with 200 mm, 150 mm and 70 mm cable lengths.

    Features and Benefits


    Compact, space saving design
    Fully tin plated contacts
    Fretting corrosion resistant
    Gas tight connection

    Applications


    These Micro-MaTch IDC ribbon cable assemblies are suitable for use in a wide range of wire to board applications including:
    Production & material handling equipment
    Control units
    Robots & motors
    Central heating units
    Car radios
    Navigation systems
    Dashboard systems
    Base stations
    Set top boxes
    Audio equipment

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Specifications

    AttributeValue
    Connector 1Micro-MaTch IDC
    Ribbon Cable TypeFlat
    Pitch1.27mm
    Connector 2Micro-MaTch IDC
    Terminated/UnterminatedTerminated
    Connector 1 GenderMale
    Number of Ways10
    Connector 2 GenderMale
    Screened/UnscreenedUnscreened
    American Wire Gauge28 AWG
    SeriesMicro-MaTch
    Length75.5mm
    Sheath ColourGrey
    Standards MetRoHS Compliant, UL
    Operating Temperature Range-40 → +105 °C
