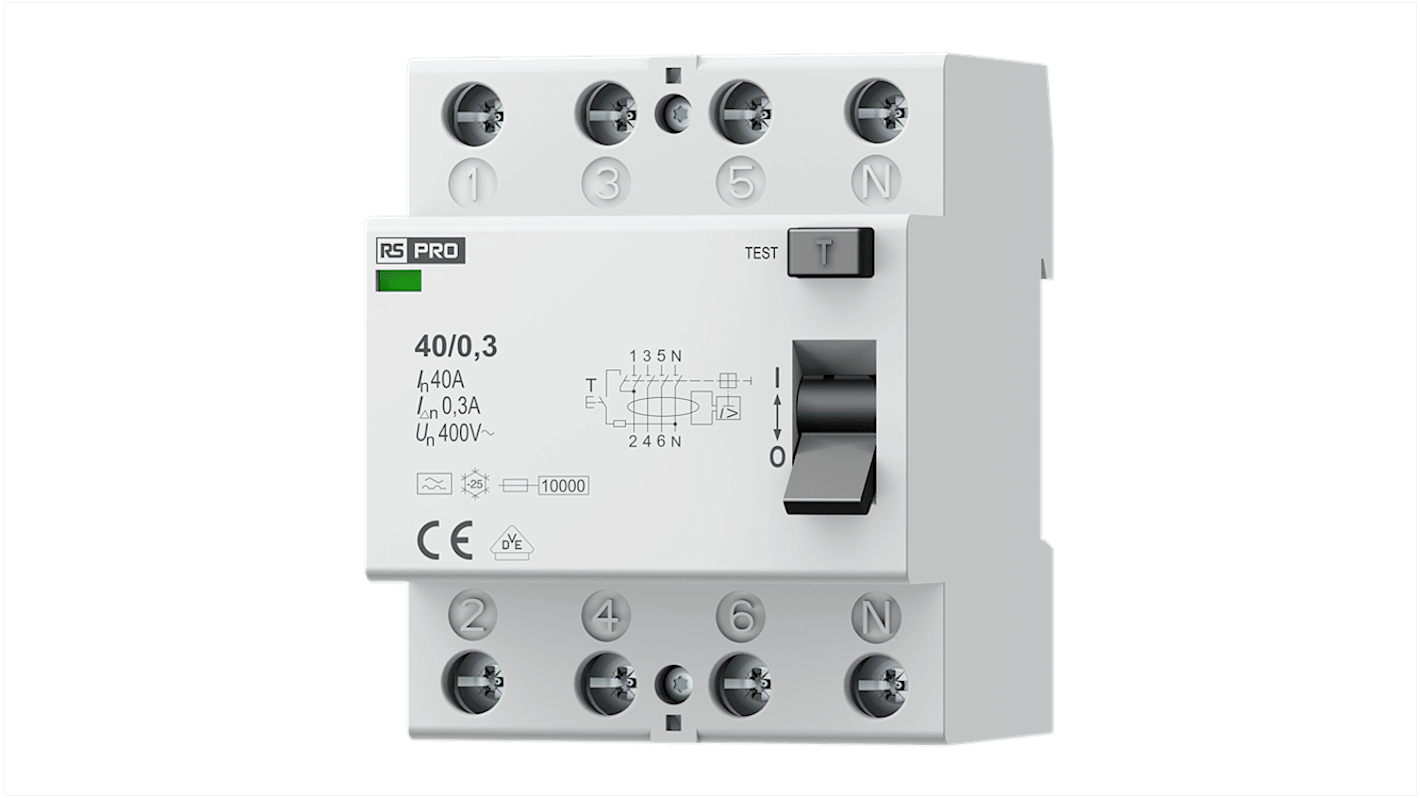

RS PRO NF14 Series Residual Current Circuit Breaker, 40 A, 4-Pole, 300 mA, Type A 400 V ac
- RS Stock No.:
- 284-2374
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP5,743.72
(exc. VAT)
PHP6,432.97
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP5,743.72 |
*price indicative
- RS Stock No.:
- 284-2374
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 40 A | |
| Number of Poles | 4 | |
| Series | NF14 | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Standards/Approvals | CE, IEC/EN 61008, VDE | |
| Depth | 68mm | |
| Height | 85mm | |
| Width | 70 mm | |
| Earth Leakage Protection Type | Type A | |
| Rated AC Voltage | 400 V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 40 A | ||
Number of Poles 4 | ||
Series NF14 | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Standards/Approvals CE, IEC/EN 61008, VDE | ||
Depth 68mm | ||
Height 85mm | ||
Width 70 mm | ||
Earth Leakage Protection Type Type A | ||
Rated AC Voltage 400 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SI
RS PRO Residential RCCBs
These RS PRO residual current circuit breakers serve multiple protective functions, including fault protection, fire protection, and additional protection against direct contact. Also facilitating isolation and offer an optional operation position.
Type A RCCBs – sensitive to alternating and pulsating direct residual operating currents. Additionally, their terminal shape prevents the connection of conductors outside the designated connection area, which ensures safe and proper installation.
Features and Benefits
Applications
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
