RS PRO MW19 Series Push Button Switch, Momentary, Panel, 19.1 mm Cutout, SPST, IP67, 36 V 250 V
- RS Stock No.:
- 175-8365
- Manufacturer:
- RS PRO

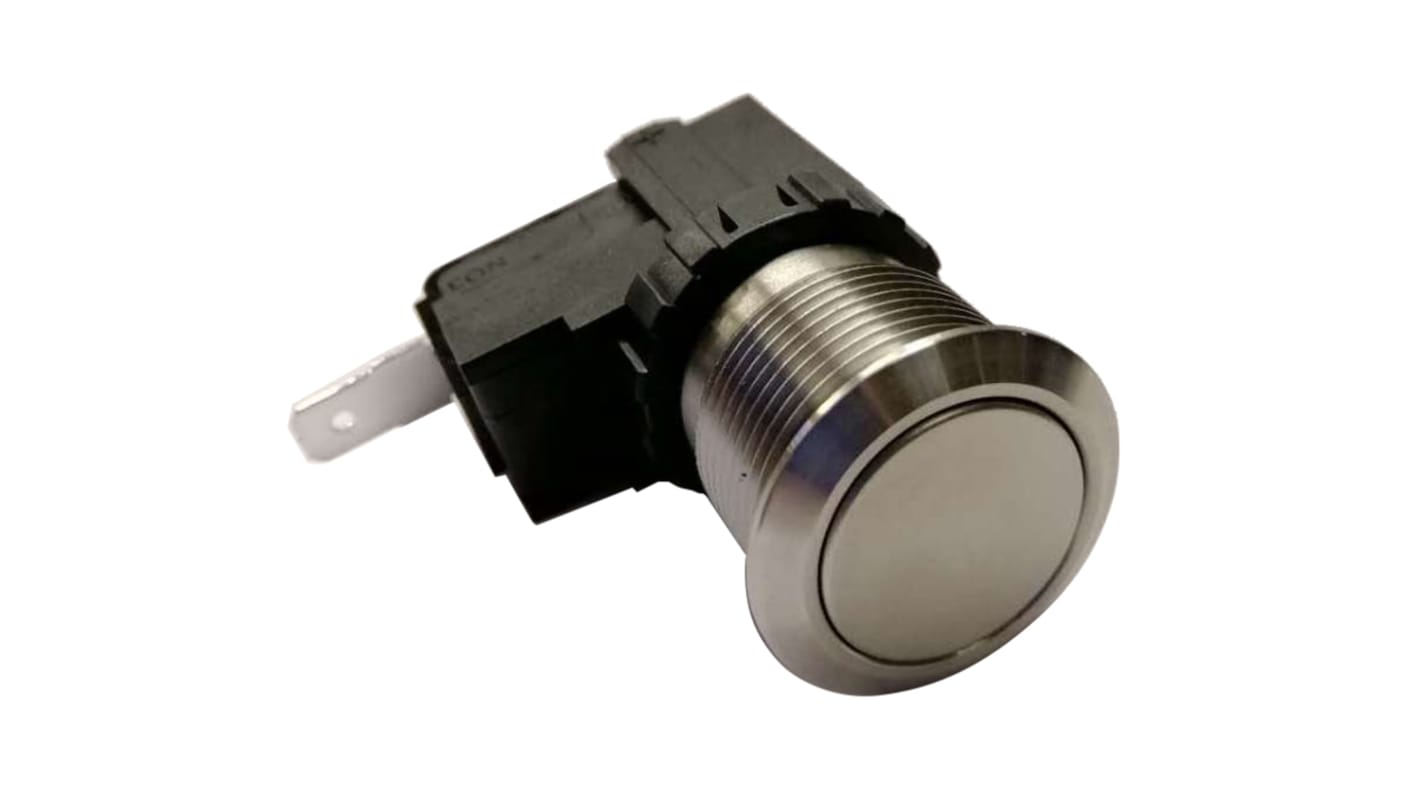

This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 20 units)*
PHP27,260.56
(exc. VAT)
PHP30,531.82
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 40 unit(s) shipping from January 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 20 - 20 | PHP1,363.028 | PHP27,260.56 |
| 40 - 60 | PHP1,333.042 | PHP26,660.84 |
| 80 + | PHP1,304.418 | PHP26,088.36 |
*price indicative
- RS Stock No.:
- 175-8365
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Switch Operation | Momentary | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | MW19 | |
| Panel Cutout Size | 19.1 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| IP Rating | IP67 | |
| Contact AC Voltage | 250V | |
| Minimum Operating Temperature | -35°C | |
| Actuator Style | Flat | |
| Contact DC Voltage | 36V | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RS | |
| Switch Contact Current | 26 A | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Switch Operation Momentary | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series MW19 | ||
Panel Cutout Size 19.1 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
IP Rating IP67 | ||
Contact AC Voltage 250V | ||
Minimum Operating Temperature -35°C | ||
Actuator Style Flat | ||
Contact DC Voltage 36V | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RS | ||
Switch Contact Current 26 A | ||
- COO (Country of Origin):
- TW
High Current Anti-Vandal Pushbutton Switches (MW Series)
IP67 rated. Available in 19mm, 22mm, 25mm and high current.
The micro-switch and bushing can be replaced, which solves the user's troubles in maintenance and increases the convenience of replacement.
The high-current switch also has a variety of indicator options, such as non-indicator, ring indicator, power symbol indicator and customer design options.
Applications
Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.
