RS PRO Process Pump Controller for Brushless Micropump, 6/28 V dc, 80 °C
- RS Stock No.:
- 125-3571
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP6,513.14
(exc. VAT)
PHP7,294.72
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from February 23, 2026
- Plus 14 unit(s) shipping from March 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP6,513.14 |
*price indicative
- RS Stock No.:
- 125-3571
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Process Pump Controller | |
| Compatible Pump Type | Brushless Micropump | |
| Supply Voltage | 6/28 V dc | |
| Maximum Flow Rate | 9L/min | |
| IP Rating | IP20 | |
| Maximum Fluid Temperature | 80°C | |
| Maximum Output Pressure | 10bar | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Process Pump Controller | ||
Compatible Pump Type Brushless Micropump | ||
Supply Voltage 6/28 V dc | ||
Maximum Flow Rate 9L/min | ||
IP Rating IP20 | ||
Maximum Fluid Temperature 80°C | ||
Maximum Output Pressure 10bar | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB

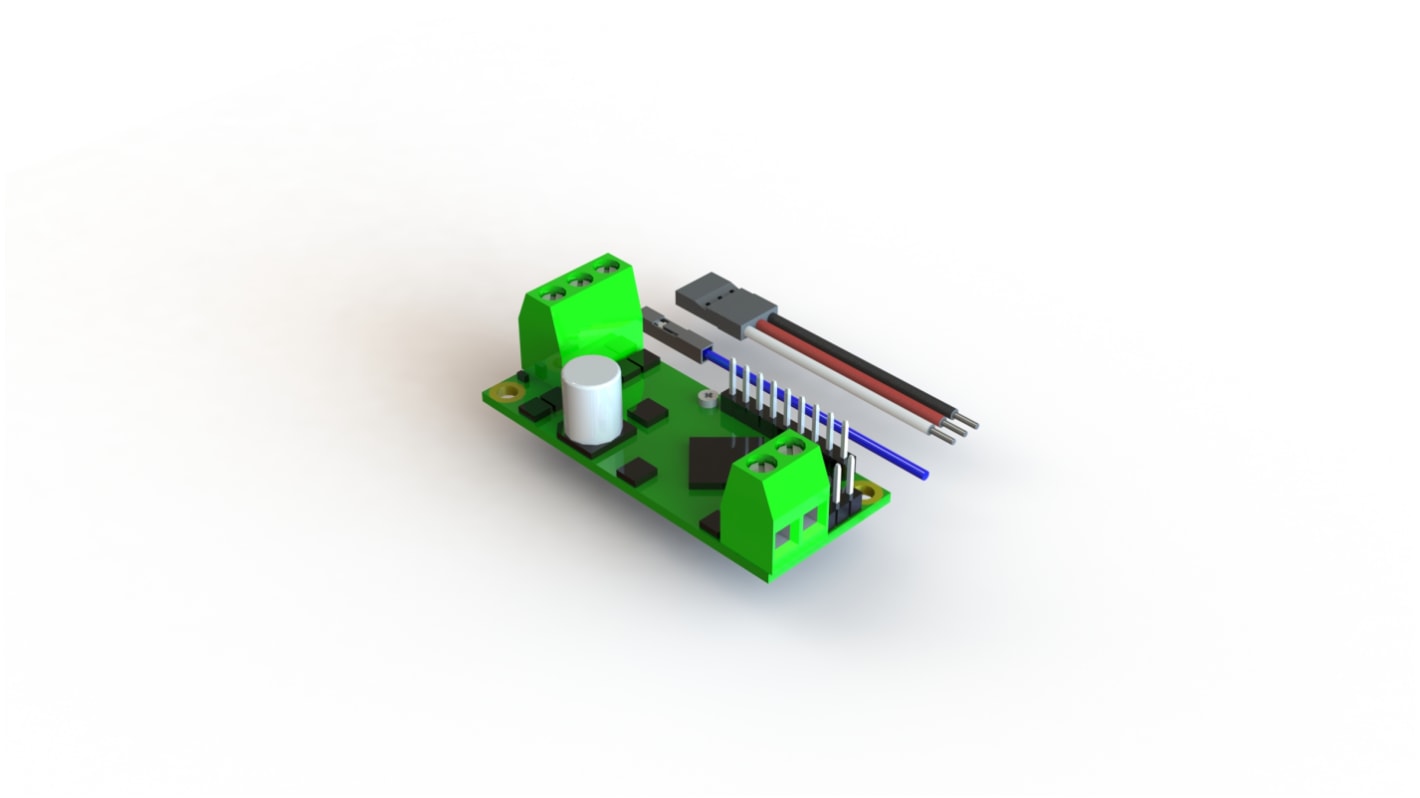

RS PRO 6 – 28V Brushless DC Micro Pump Controller
A compact and highly efficient motor controller for the RS PRO range of micro-pumps.
The DC pump controller accepts an input voltage of 6 to 8V volts and pump speed can be controlled from a potentiometer on the board or via a 0 to 4V external signal.
With voltages above 12V the controller the speed of the pump is automatically governed to enable and maintain a constant flow with the increase in back pressure achieving a flatter flow pressure curve.
The micro pump controller is easy to install using the two input and three output terminals and its compact dimensions are ideal for tight fitting systems.
A 28V DC pump controller suitable for use with a wide variety of applications including research and development, laboratory equipment and production equipment.
Features and Benefits
DC micro pump controller
Supply voltage of 6 – 28V
S1 safety category
IP20 rated
Dimensions of 16 x 23 x 57mm
Suitable RS PRO Micro Pumps
The RS PRO DC micro pump controller is intended for use with the following RS PRO micro pumps:
817-0772 – 9l/min
817-0781 – 9l/min / Waterproof
817-0784 – 9l/min/ 180 Degree Port
Standards an Approvals: ISO 9001, TCS, SVCH, CMRT, 3TG.
