RS PRO Process Pump Controller for Brushless Micropump, 6/28 V, 80 °C

RS Stock No.:: 125-3569
Distrelec Article No.:: 304-13-989
Manufacturer:: RS PRO

RS PRO Process Pump Controller for Brushless Micropump, 6/28 V, 80 °C

Subtotal (1 unit)*

PHP6,513.14

(exc. VAT)

PHP7,294.72

(inc. VAT)

Add 1 unit to get free delivery

Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.

In Stock

5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP6,513.14

*price indicative

Be Ready for Anything: RS PRO Emergency Preparedness Solutions

RS Stock No.:: 125-3569
Distrelec Article No.:: 304-13-989
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Process Pump Controller
	Compatible Pump Type	Brushless Micropump
	Supply Voltage	6/28 V
	IP Rating	IP20
	Maximum Fluid Temperature	80°C
	Maximum Output Pressure	10bar
	Standards/Approvals	CMRT, ISO 9001 Quality Control Standard, 3TG and REACH compliant, SVCH, RoHS Directive 2011/65/EU

	Select all
	Brand RS PRO
	Product Type Process Pump Controller
	Compatible Pump Type Brushless Micropump
	Supply Voltage 6/28 V
	IP Rating IP20
	Maximum Fluid Temperature 80°C
	Maximum Output Pressure 10bar
	Standards/Approvals CMRT, ISO 9001 Quality Control Standard, 3TG and REACH compliant, SVCH, RoHS Directive 2011/65/EU

COO (Country of Origin):: GB

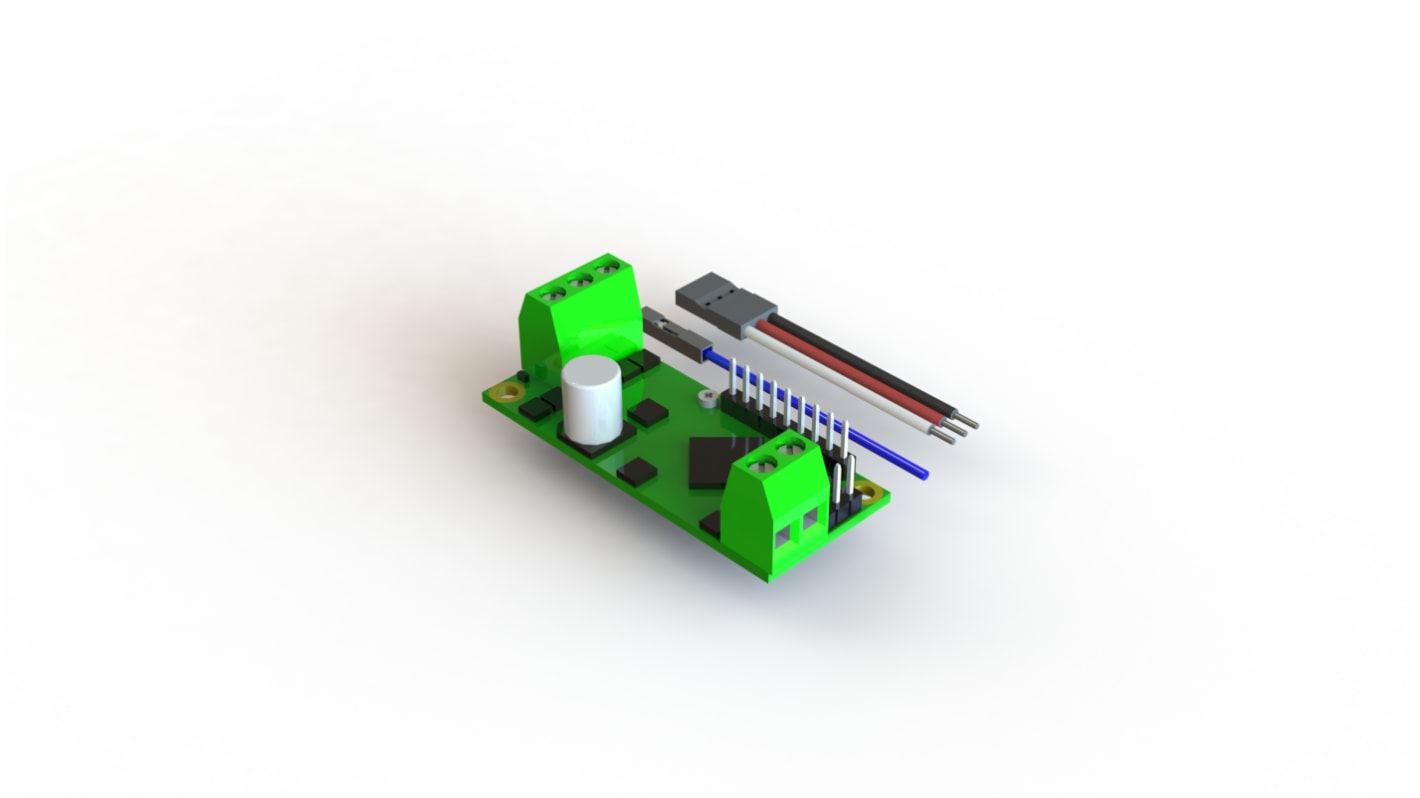

RS PRO 6 – 28V Brushless DC Micro Pump Controller

A compact and highly efficient motor controller for the RS PRO range of centrifugal micro-pumps.

The DC pump controller accepts an input voltage of 6 to 28V volts and pump speed can be controlled from a potentiometer on the board or via a 0 to 4V external signal.

With voltages above 12V the controller the speed of the pump is automatically governed to enable and maintain a constant flow with the increase in back pressure achieving a flatter flow pressure curve.

The micro pump controller is easy to install using the two input and three output terminals and its compact dimensions are ideal for tight fitting systems.

A 28V DC pump controller suitable for use with a wide variety of applications including research and development, laboratory equipment and production equipment.

Features and Benefits

DC micro pump controller

Supply voltage of 6 – 28V

S1 safety category

IP20 rated

Dimensions of 16 x 23 x 57mm

Suitable RS PRO Micro Pumps

The RS PRO DC micro pump controller is intended for use with the following RS PRO micro pumps:

125-3564 – 1500ml/min / 18-88W;125-3565 – 2500m/min / 30-100W;817-0766 – 1500ml/min / 18-88W;914-7016 – 2500m/min / 30-100W

Standards an Approvals: ISO 9001, TCS, SVCH, CMRT, 3TG.
