Fluke G 1/4 RS232 Pressure Gauge, 114 mm, 690 bar

RS Stock No.:: 758-8914
Distrelec Article No.:: 176-50-058
Mfr. Part No.:: FLUKE-700G31/APAC
Manufacturer:: Fluke

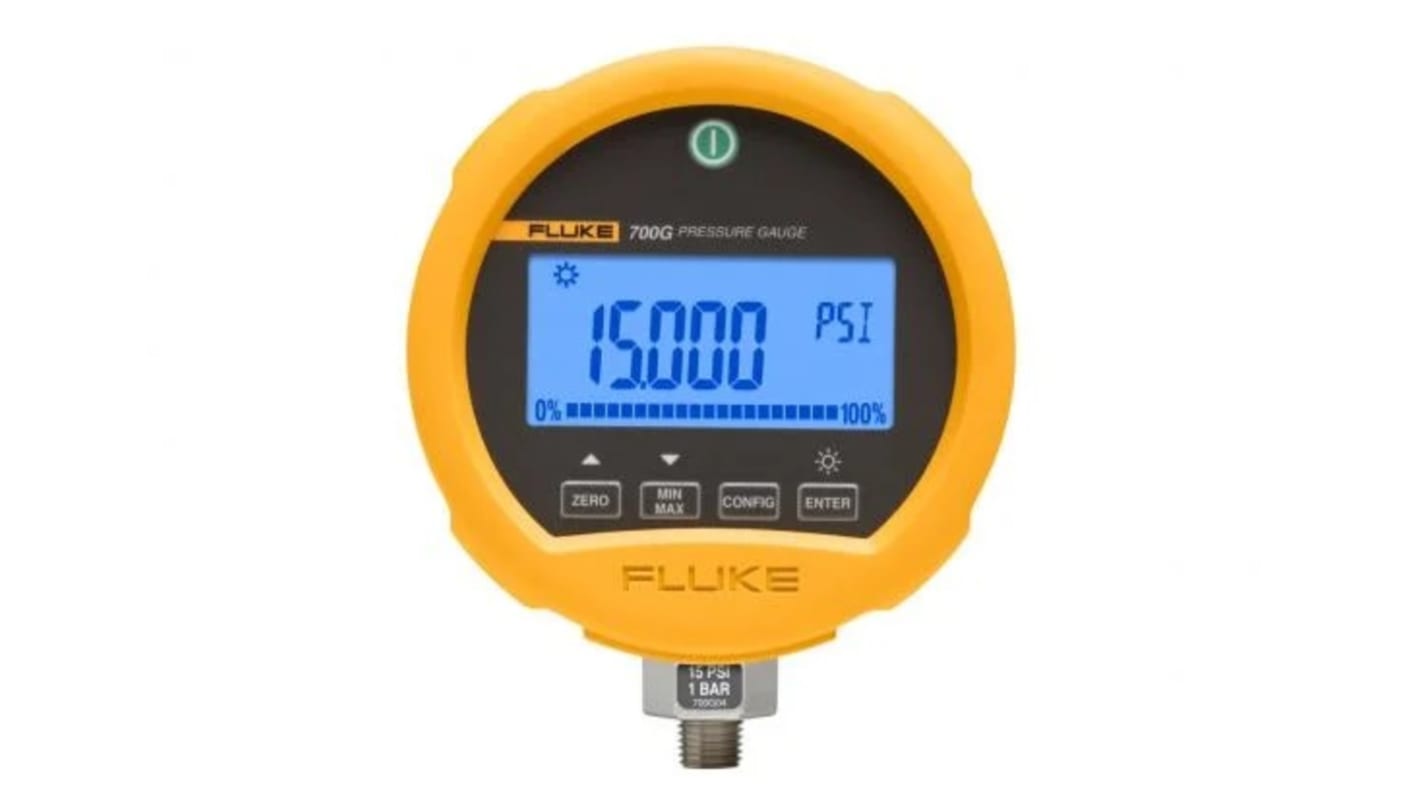

Fluke G 1/4 RS232 Pressure Gauge, 114 mm, 690 bar

This image is representative of the product range

Subtotal (1 unit)*

PHP141,528.53

(exc. VAT)

PHP158,511.95

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	PHP141,528.53

*price indicative

RS Stock No.:: 758-8914
Distrelec Article No.:: 176-50-058
Mfr. Part No.:: FLUKE-700G31/APAC
Manufacturer:: Fluke

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Maximum Pressure Measurement	690bar
	Product Type	Pressure Gauge
	Minimum Pressure Measurement	-0.97bar
	Pressure Connection	1/4 inch NPT Male
	Connection Size	G 1/4
	Accuracy	±0.05 %
	Connection Type	1/4 in NPT Male
	Interface Type	RS232
	Series	Fluke 700G
	Case Material	Cast Zinc, Aluminium
	Dial Size	114mm
	Number of Display Digits	5
	Connection Location	Bottom Entry
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	55°C
	Standards/Approvals	Class 1, Groups A-D, CSA, Div 2, ATEX

	Select all
	Brand Fluke
	Maximum Pressure Measurement 690bar
	Product Type Pressure Gauge
	Minimum Pressure Measurement -0.97bar
	Pressure Connection 1/4 inch NPT Male
	Connection Size G 1/4
	Accuracy ±0.05 %
	Connection Type 1/4 in NPT Male
	Interface Type RS232
	Series Fluke 700G
	Case Material Cast Zinc, Aluminium
	Dial Size 114mm
	Number of Display Digits 5
	Connection Location Bottom Entry
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 55°C
	Standards/Approvals Class 1, Groups A-D, CSA, Div 2, ATEX

RoHS Status: Exempt

COO (Country of Origin):: CN

Fluke 700G Series Pressure Gauge, 690 Bar Maximum Pressure, 114 mm Dial Size - Fluke-700G31

This pressure gauge provides precise pressure measurement for industrial and laboratory testing, offering both gauge and absolute ranges and a rugged enclosure for field use. It supports data transfer via RS232 and is designed to operate across typical site temperatures, combining compatibility with pneumatic and hydraulic test pumps to serve versatile measurement tasks.

Features and Benefits:

• ±0.05% accuracy delivers precise readings for demanding calibration tasks
• 114mm dial enhances visibility with a 5½‑digit digital display
• 1/4in NPT male pressure connection allows quick attachment to test rigs
• Cast zinc and aluminium housing offers Durable protection in harsh environments
• -0.97 to 690 bar measurement range handles vacuum to ultra‑high pressure
• RS232 Interface enables real‑time data logging to a PC

Applications

• Suitable for calibration laboratories requiring high‑accuracy measurement
• Used with pneumatic pumps for up to 40 bar pressure testing
• Ideal for hydraulic systems up to 690 bar verification
• Can be used for absolute pressure checks in sealed systems
• Used for field service testing in classified hazardous areas

What temperature range will it operate within reliably?

It functions between -10°C and 55°C, with a compensation band from 0°C to 50°C at rated accuracy.

What media are compatible with the sensor for high‑pressure ranges?

For 100 psi and above, any liquid or gas compatible with 316 stainless steel may be used.

How many logged measurements can be stored before download?

The internal memory can store up to 8,493 pressure measurements when logging is enabled.

What certificate and adapters are supplied with the instrument?

It includes a traceable calibration certificate and a 1/4″ NPT to 1/4″ ISO adapter.

What approvals cover use in hazardous locations?

The unit carries CSA, Class 1 Div 2 Groups A‑D and ATEX II 3 G Ex nA IIB T6 approvals.

Note

The 700G gauges can be combined with the 7588920 (700PTPK) or 7588926 (700HTPK) pump kits, available separately, for a complete pressure testing solution for up to 600psi with the PTP-1 pneumatic pump and up to 10,000psi with the HTP-2 hydraulic pump. Up to 8493 pressure measurements can be logged to memory using 7588923 700G/TRACK logging software (available separately).

Approvals

CSA, ATEX
