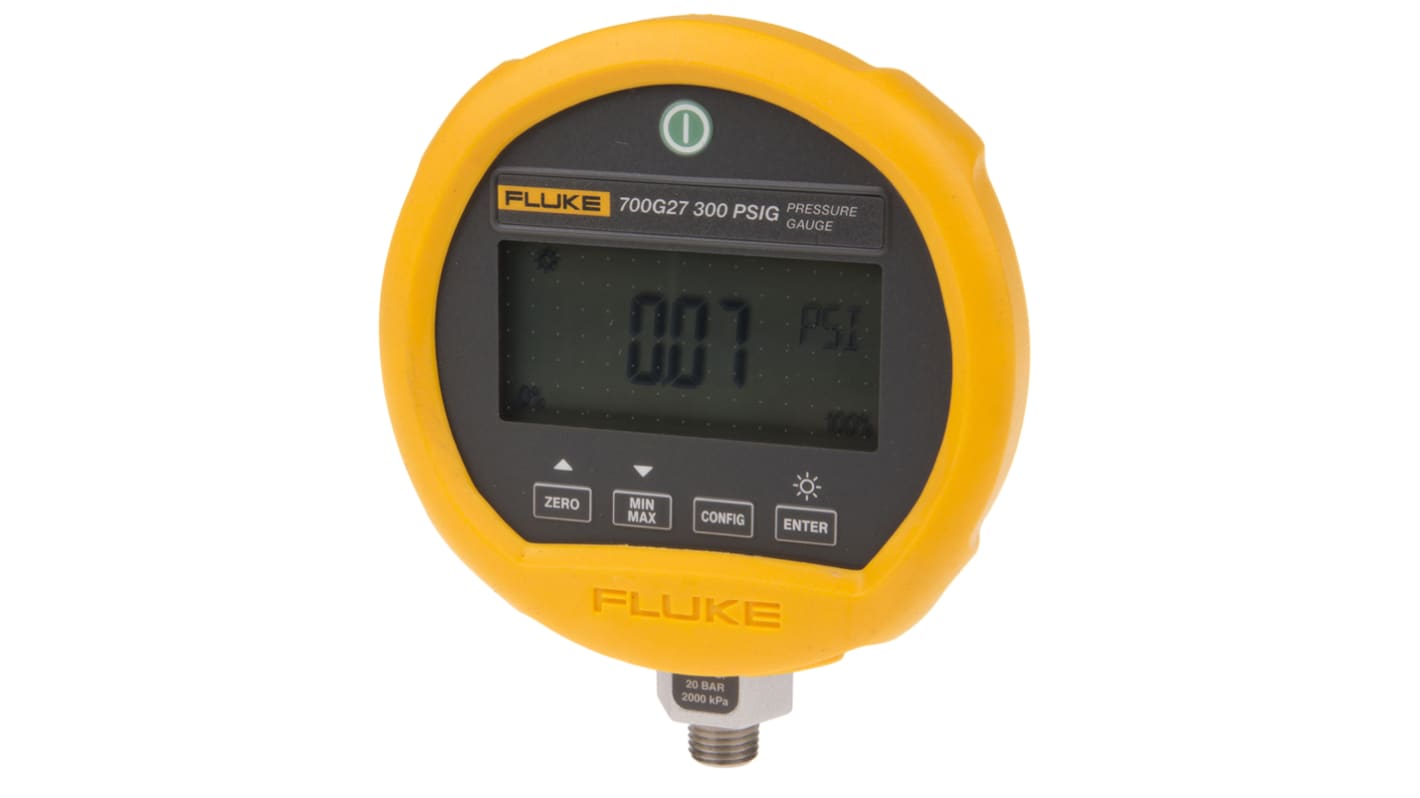

Fluke G 1/4 RS232 Pressure Gauge, 114 mm, 20 bar Calibrated
- RS Stock No.:
- 758-8901
- Distrelec Article No.:
- 176-50-054
- Mfr. Part No.:
- Fluke-700G27
- Manufacturer:
- Fluke
This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 758-8901
- Distrelec Article No.:
- 176-50-054
- Mfr. Part No.:
- Fluke-700G27
- Manufacturer:
- Fluke
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Pressure Gauge | |
| Maximum Pressure Measurement | 20bar | |
| Minimum Pressure Measurement | -0.83bar | |
| Pressure Connection | 1/4 inch NPT Male | |
| Connection Size | G 1/4 | |
| Accuracy | ±0.05 % | |
| Connection Type | NPT Male | |
| Series | 700G | |
| Interface Type | RS232 | |
| Case Material | Aluminium, Cast Zinc | |
| IsCalibrated | Yes | |
| Minimum Operating Temperature | -10°C | |
| Dial Size | 114mm | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | Groups A-D, ATEX II 3 G Ex nA IIB T6, Div 2, CSA Class 1 | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Pressure Gauge | ||
Maximum Pressure Measurement 20bar | ||
Minimum Pressure Measurement -0.83bar | ||
Pressure Connection 1/4 inch NPT Male | ||
Connection Size G 1/4 | ||
Accuracy ±0.05 % | ||
Connection Type NPT Male | ||
Series 700G | ||
Interface Type RS232 | ||
Case Material Aluminium, Cast Zinc | ||
IsCalibrated Yes | ||
Minimum Operating Temperature -10°C | ||
Dial Size 114mm | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals Groups A-D, ATEX II 3 G Ex nA IIB T6, Div 2, CSA Class 1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Fluke 700G Series
Fluke 700G Series precision pressure gauge calibrators are portable, high quality calibrators offering fast and accurate calibration test results. The 700G models are easy-to-use and of rugged construction for reliable performance in different environments. They are compatible with most hydraulic and pneumatic test pumps.
Note
The 700G gauges can be combined with the 7588920 (700PTPK) or 7588926 (700HTPK) pump kits, available separately, for a complete pressure testing solution for up to 600psi with the PTP-1 pneumatic pump and up to 10,000psi with the HTP-2 hydraulic pump. Up to 8493 pressure measurements can be logged to memory using 7588923 700G/TRACK logging software (available separately).
Approvals
CSA, ATEX
