Festo 1/4 in R Threaded Pressure Gauge, 50 mm, 16 bar

View all Pressure Gauges

Subtotal (1 unit)*

PHP2,221.19

(exc. VAT)

PHP2,487.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from March 30, 2026
  • Plus 6 unit(s) shipping from April 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP2,221.19

*price indicative

RS Stock No.:
202-2982
Distrelec Article No.:
301-68-937
Mfr. Part No.:
MA-50-16-R1/4-E-RG
Manufacturer:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pressure Gauge

Maximum Pressure Measurement

16bar

Minimum Pressure Measurement

0bar

Pressure Connection

Brass

Connection Size

1/4 in R

Connection Type

Threaded

Series

MA

Case Material

ABS

Dial Size

50mm

Dial Colour

Black

Connection Location

Back Entry

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

COO (Country of Origin):
DE

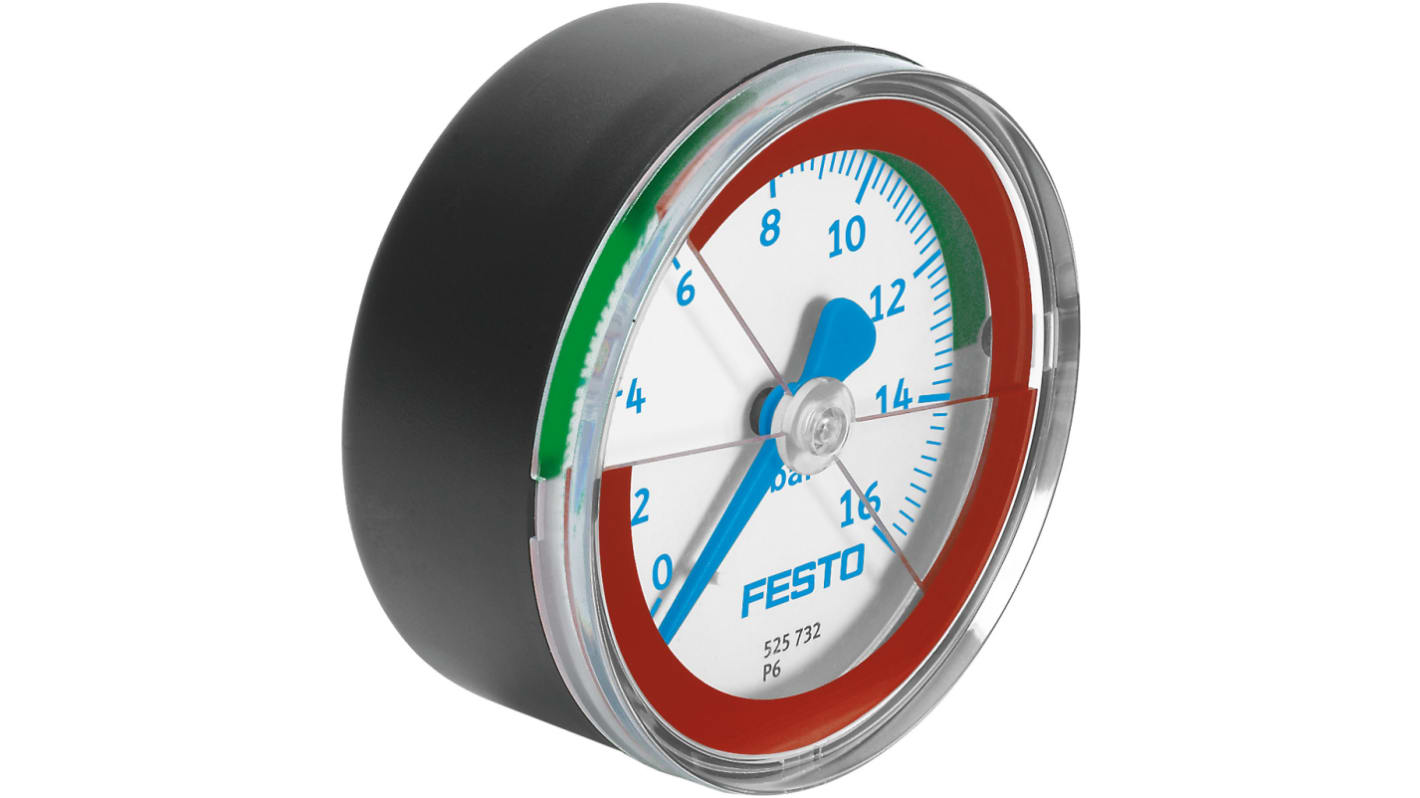

Festo Pressure Gauge, 50mm Gauge Outside Diameter, Back Entry Mount - MA-50-16-R1/4-E-RG


This pressure gauge by Festo with a 50mm analogue display, is designed for precise pressure measurement in industrial settings. With a maximum pressure measurement of 16 bar and a minimum pressure measurement of 0 bar, this gauge ensures accurate readings for various applications. Its back entry mounting type allows for easy installation and monitoring.

Features & Benefits


• The display type of the pressure gauge is analogue

• The maximum pressure measurement is 16 bar and the minimum pressure measurement is 0 bar

• The mounting type of the pressure gauge is back entry with outside diameter is 50 mm

• The design structure is a Bourdon-tube pressure gauge and conforms to standard EN 837-1

• The operating medium for the gauge is inert gases and neutral fluids

• The measurement accuracy class is 2.5 and protection class is IP43

• The materials in contact with the media are brass and it is suitable for operating temperatures ranging from -20 to 60 °C

Applications


• Used for monitoring pressure in automation and mechanical industries

• Ideal for measuring pressure in systems using inert gases and neutral fluids

• Suitable for installations requiring accurate and reliable pressure readings

Can it be used in environments with varying temperatures?


Yes, the pressure gauge can be used in environments with varying temperatures. It is built to withstand a wide range of temperatures typically encountered in industrial settings.

Will it accurately measure pressure ranging from 0 to 16 bar?


Yes, it will accurately measure pressure ranging from 0 to 16 bar. The pressure gauge is designed to provide precise and reliable pressure measurements within this specified range.

Is it suitable for applications requiring back entry mounting?


Yes, it is suitable for applications requiring back entry mounting. This design feature allows for easy installation and optimal positioning of the gauge in various industrial settings.
