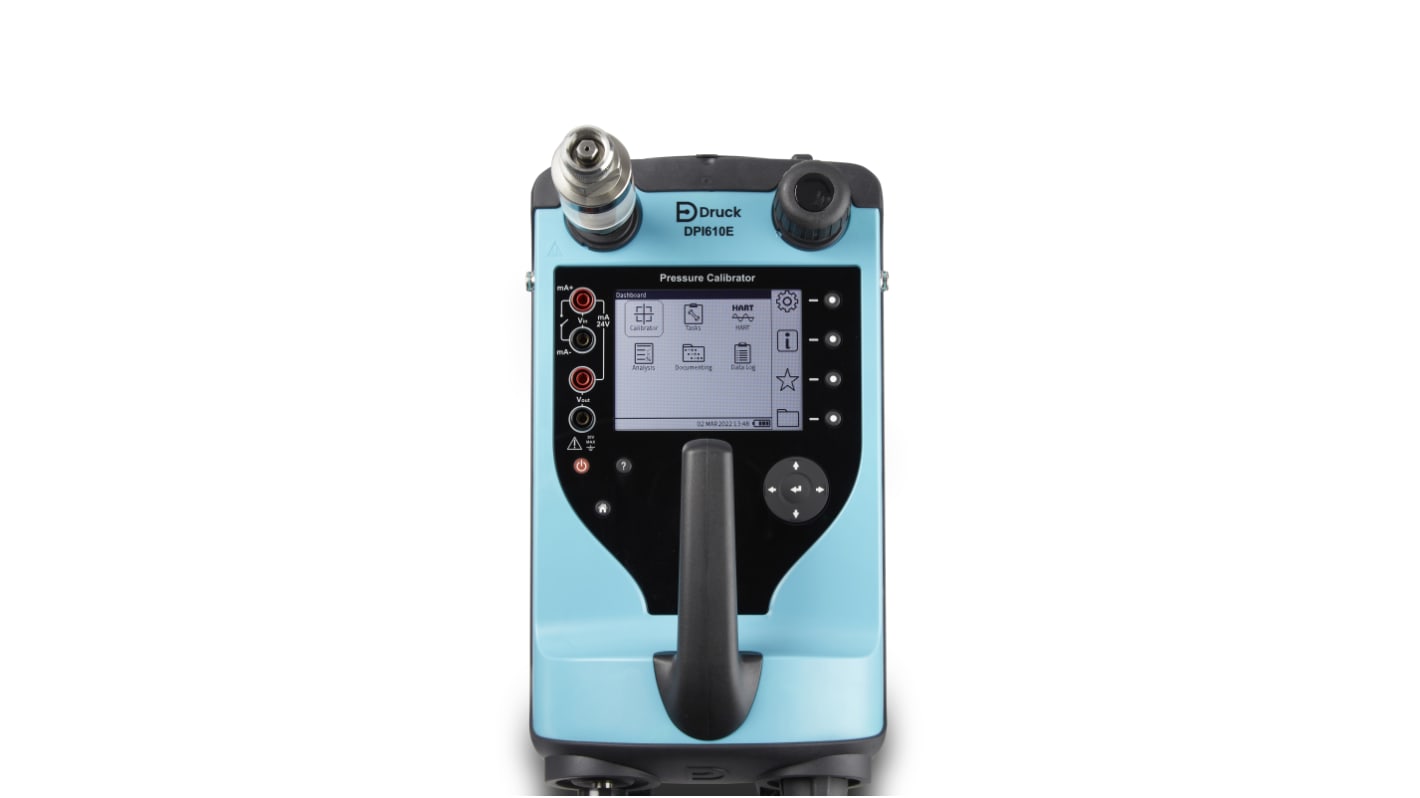

Druck DPI610E 0 bar to 7 bar Pressure Calibrator
- RS Stock No.:
- 251-9238
- Mfr. Part No.:
- DPI610E-PC-10G-UO -BO
- Manufacturer:
- Druck
Subtotal (1 unit)*
PHP491,812.32
(exc. VAT)
PHP550,829.80
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 2 unit(s) shipping from November 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP491,812.32 |
*price indicative
- RS Stock No.:
- 251-9238
- Mfr. Part No.:
- DPI610E-PC-10G-UO -BO
- Manufacturer:
- Druck
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Druck | |
| Battery Type | Lithium-ion | |
| Maximum Pressure Measurement | 7bar | |
| Product Type | Pressure Calibrator | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.025 % FS | |
| Resolution | 0.03 % | |
| Pressure Port Type | Gauge/Pseudo Absolute | |
| Model Number | DPI610E | |
| Data Logging | Yes | |
| Intrinsically Safe | Yes | |
| Display Type | LCD | |
| Current Loop Measurement | Yes | |
| Leak Testing | Yes | |
| Power Source | Lithium-ion Battery | |
| Weight | 3.6kg | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Battery Life | 90h | |
| Width | 150mm | |
| Length | 350mm | |
| Standards/Approvals | BS EN 610101:2010, BS EN 613261:2013, CE, UKCA | |
| Height | 180mm | |
| Hazardous Area Certification | No | |
| Plug Type | USB | |
| Select all | ||
|---|---|---|
Brand Druck | ||
Battery Type Lithium-ion | ||
Maximum Pressure Measurement 7bar | ||
Product Type Pressure Calibrator | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.025 % FS | ||
Resolution 0.03 % | ||
Pressure Port Type Gauge/Pseudo Absolute | ||
Model Number DPI610E | ||
Data Logging Yes | ||
Intrinsically Safe Yes | ||
Display Type LCD | ||
Current Loop Measurement Yes | ||
Leak Testing Yes | ||
Power Source Lithium-ion Battery | ||
Weight 3.6kg | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Battery Life 90h | ||
Width 150mm | ||
Length 350mm | ||
Standards/Approvals BS EN 610101:2010, BS EN 613261:2013, CE, UKCA | ||
Height 180mm | ||
Hazardous Area Certification No | ||
Plug Type USB | ||
- COO (Country of Origin):
- GB
Druck Pressure Calibrator, 7 bar Maximum Pressure, 0.025% FS Accuracy - DPI610E-PC-10G-UO -BO
This pressure calibrator provides portable, battery‑powered measurement and verification of pressure instruments in field and workshop environments. It offers gauge and pseudo‑absolute pressure connection options and supports both pressure generation and leak testing while displaying readings on an LCD. The unit operates across a typical industrial temperature range and includes data logging and current loop measurement capabilities for commissioning and maintenance workflows.
Features and Benefits:
• 0.025% FS accuracy ensures precise calibration results
• 0.03% resolution enhances detection of small pressure changes
• 90 h battery life enables extended field operation
• Intrinsically safe design permits use in classified locations
• Data logging and current loop measurement simplify documentation
• 0.03% resolution enhances detection of small pressure changes
• 90 h battery life enables extended field operation
• Intrinsically safe design permits use in classified locations
• Data logging and current loop measurement simplify documentation
Applications
• Suitable for on‑site transmitter calibration and verification
• Used for routine leak testing of pressure systems
• Ideal for pressure sensor commissioning up to 10 bar
• Can be used with control loop checks and signal tracing
• Used for portable maintenance where USB recharge is required
• Used for routine leak testing of pressure systems
• Ideal for pressure sensor commissioning up to 10 bar
• Can be used with control loop checks and signal tracing
• Used for portable maintenance where USB recharge is required
What power source does the instrument use?
It operates from an internal lithium‑ion battery and is USB rechargeable.
What pressure range can it measure and handle?
It measures from 0 bar up to a maximum of 7 bar and supports gauge and pseudo‑absolute ports.
How does it aid in documenting calibration activities?
It includes onboard data logging to capture measured values during tests.
Is the device suitable for hazardous‑area deployment?
The unit is intrinsically safe but does not carry hazardous‑area certification.
