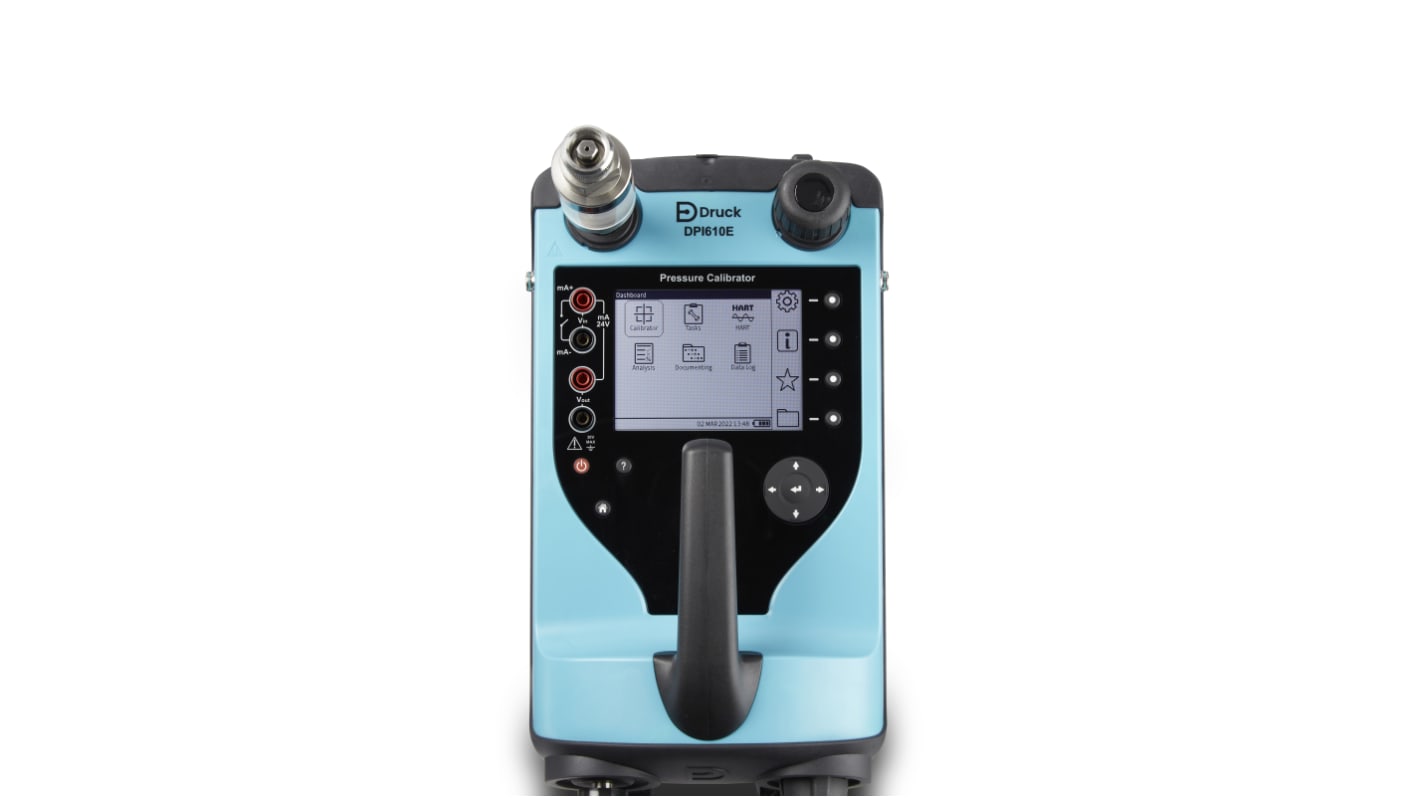

Druck DPI610E 0 bar to 20 bar Pressure Calibrator

RS Stock No.:: 251-9234
Mfr. Part No.:: DPI610E-PC-13G-UO -BO
Manufacturer:: Druck

Druck DPI610E 0 bar to 20 bar Pressure Calibrator

Subtotal (1 unit)*

PHP452,611.74

(exc. VAT)

PHP506,925.15

(inc. VAT)

FREE delivery for orders over ₱5,000.00

In Stock

Plus 2 unit(s) shipping from November 09, 2026
Plus 4 unit(s) shipping from December 02, 2026
Plus 3 unit(s) shipping from December 08, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP452,611.74

*price indicative

RS Stock No.:: 251-9234
Mfr. Part No.:: DPI610E-PC-13G-UO -BO
Manufacturer:: Druck

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Druck
	Battery Type	Lithium-ion
	Product Type	Pressure Calibrator
	Maximum Pressure Measurement	20bar
	Accuracy	0.025 % FS
	Minimum Pressure Measurement	0bar
	Resolution	0.03 %
	Pressure Port Type	Gauge/Pseudo Absolute
	Model Number	DPI610E
	Data Logging	Yes
	Intrinsically Safe	Yes
	Display Type	LCD
	Current Loop Measurement	Yes
	Leak Testing	Yes
	Power Source	Lithium-ion Battery
	Weight	3.6kg
	Minimum Operating Temperature	-10°C
	Battery Life	90h
	Maximum Operating Temperature	50°C
	Width	150mm
	Length	350mm
	Standards/Approvals	CE, UKCA, BS EN 613261:2013, BS EN 610101:2010
	Height	180mm
	Hazardous Area Certification	No
	Plug Type	USB

	Select all
	Brand Druck
	Battery Type Lithium-ion
	Product Type Pressure Calibrator
	Maximum Pressure Measurement 20bar
	Accuracy 0.025 % FS
	Minimum Pressure Measurement 0bar
	Resolution 0.03 %
	Pressure Port Type Gauge/Pseudo Absolute
	Model Number DPI610E
	Data Logging Yes
	Intrinsically Safe Yes
	Display Type LCD
	Current Loop Measurement Yes
	Leak Testing Yes
	Power Source Lithium-ion Battery
	Weight 3.6kg
	Minimum Operating Temperature -10°C
	Battery Life 90h
	Maximum Operating Temperature 50°C
	Width 150mm
	Length 350mm
	Standards/Approvals CE, UKCA, BS EN 613261:2013, BS EN 610101:2010
	Height 180mm
	Hazardous Area Certification No
	Plug Type USB

COO (Country of Origin):: GB

Druck Pressure Calibrator, 20 bar Maximum Pressure, 90h Battery Life - DPI610E-PC-13G-UO -BO

This pressure calibrator is a portable instrument designed to measure and verify pressure-related instruments in field and workshop environments. It operates across typical industrial temperature ranges and provides both pressure measurement and loop current diagnostics while running from a rechargeable lithium-ion battery. The unit includes an LCD for clear readout and supports data capture during verification jobs.

Features and Benefits:

• 0.025% FS accuracy improves calibration confidence
• 0.03% resolution enables fine-grain pressure discrimination
• Intrinsically safe design permits use in hazardous zones
• 90h battery life supports extended field shifts
• USB connectivity facilitates straightforward data transfer

Applications

• Suitable for commissioning pneumatic transmitters and gauges
• Used for on-site loop current measurement and verification
• Ideal for maintenance pressure leak testing activities
• Can be used for portable data logging during audits
• Used with gauge and pseudo-absolute pressure devices

What power source does it use?

It is powered by an internal lithium-ion battery allowing Cordless operation.

Which pressure ranges can it measure?

The instrument measures from 0 bar up to 20 bar for service and calibration tasks.

Does it Record measurement data for later review?

Yes, it features onboard data logging with a USB Interface for offloading files.

Is the instrument certified for regulatory standards?

It carries CE and UKCA marks and conforms to the listed EN standards.

How portable is the unit for fieldwork?

It weighs 3.6 kg and has a Compact form factor suitable for handheld use.
