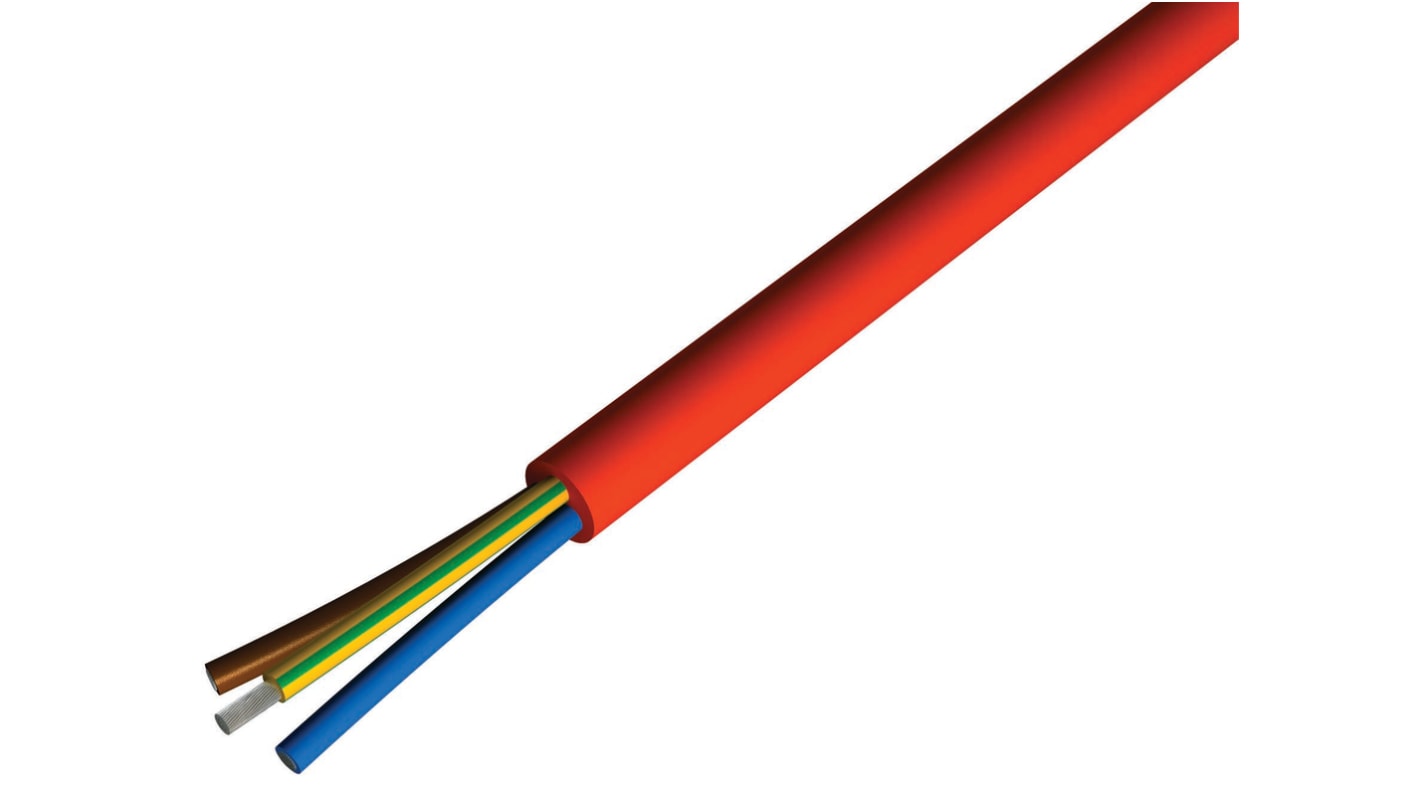

RS PRO, 50 m 3 Core Power Cable, Red, Brown Silicon Elastomer 180 °C
- RS Stock No.:
- 283-1628
- Mfr. Part No.:
- RSSIHF3G15
- Manufacturer:
- RS PRO
Subtotal (1 reel of 50 metres)*
PHP15,590.42
(exc. VAT)
PHP17,461.27
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Limited stock
- 3 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | PHP15,590.42 | PHP311.808 |
*price indicative
- RS Stock No.:
- 283-1628
- Mfr. Part No.:
- RSSIHF3G15
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Power Cable | |
| Number of Cores | 3 | |
| Jacket Colour | Red, Brown | |
| Cable Length | 50m | |
| Jacket Material | Silicon Elastomer | |
| Voltage | 300/500 V | |
| Minimum Operating Temperature | -60°C | |
| Standards/Approvals | IEC 60332 1, IEC 60228, HD 308 S2, EN50575, RoHS, NF C 32 070/C2, IEC 60754 1 | |
| Fire Behaviour | IEC 60332-1, Flame Retardant NF C 32-070/C2 | |
| Maximum Operating Temperature | 180°C | |
| Conductor Material | Tin Copper Wire | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Power Cable | ||
Number of Cores 3 | ||
Jacket Colour Red, Brown | ||
Cable Length 50m | ||
Jacket Material Silicon Elastomer | ||
Voltage 300/500 V | ||
Minimum Operating Temperature -60°C | ||
Standards/Approvals IEC 60332 1, IEC 60228, HD 308 S2, EN50575, RoHS, NF C 32 070/C2, IEC 60754 1 | ||
Fire Behaviour IEC 60332-1, Flame Retardant NF C 32-070/C2 | ||
Maximum Operating Temperature 180°C | ||
Conductor Material Tin Copper Wire | ||
- COO (Country of Origin):
- TR
The CAE Groupe SIHF Silicon Elastomer Cable is designed to power equipment subject to major fluctuations in temperature. The cable features copper strand tinned conductors classified as per IEC 60228 class 5 standards. The conductors are assembled in layers, enhancing flexibility and strength. Meeting HD 308 S2 core identification standards.
Halogen free
Flame retardant
Conform to RoHS
