SMC Vacuum Filter - ZFC Series, 5 μm, 6.35 mm Dia Port Connection
- RS Stock No.:
- 175-9950
- Mfr. Part No.:
- ZFC7D-B
- Manufacturer:
- SMC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP1,730.61
(exc. VAT)
PHP1,938.28
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- Plus 26 unit(s) shipping from November 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP1,730.61 |
| 10 + | PHP1,678.70 |
*price indicative
- RS Stock No.:
- 175-9950
- Mfr. Part No.:
- ZFC7D-B
- Manufacturer:
- SMC
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Vacuum Filter | |
| Port Size | 6.35 mm Dia | |
| Filtration Size | 5μm | |
| Series | ZFC | |
| Housing Material | Polycarbonate | |
| Maximum Flow Rate | 100L/min | |
| Seal Material | Halogenated Nitrile Rubber | |
| Element Material | Sintered Resin | |
| Overall Length | 79.6mm | |
| Maximum Operating Temperature | 60°C | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Pressure | -100kPa | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | RoHS | |
| Overall Width | 23.6mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Vacuum Filter | ||
Port Size 6.35 mm Dia | ||
Filtration Size 5μm | ||
Series ZFC | ||
Housing Material Polycarbonate | ||
Maximum Flow Rate 100L/min | ||
Seal Material Halogenated Nitrile Rubber | ||
Element Material Sintered Resin | ||
Overall Length 79.6mm | ||
Maximum Operating Temperature 60°C | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Pressure -100kPa | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals RoHS | ||
Overall Width 23.6mm | ||
- COO (Country of Origin):
- JP

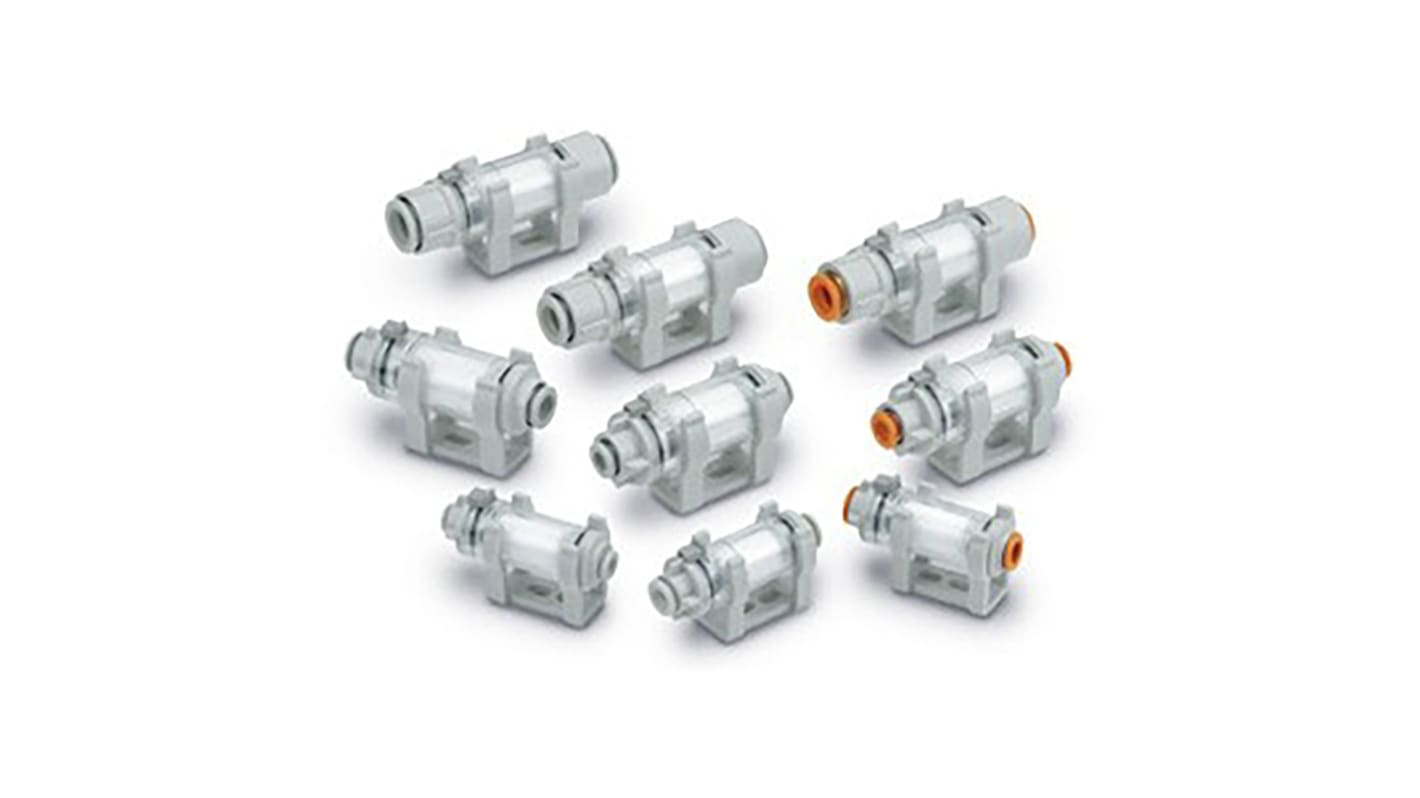

Series ZFC5 and ZFC7 are in-line air filters that prevent trouble in equipment caused by contaminants in the air. Both positive pressure and vacuum pressure can be used with a single unit. During positive pressure, a lock mechanism prevents components from being scattered when they are loosened. The ZFC series is light weight and compact, and the flexible mounting orientation makes it easy to install to the line. The ZFC is available in 5 metric sizes and 4 inch sizes.
One unit offers both positive and negative pressure
Metric and inch sizes
One-touch fittings
