Festo DFPD Series 8 bar Single Acting Action Pneumatic Rotary Actuator, 900mm Bore, 90 °

Subtotal (1 unit)*

PHP117,112.47

(exc. VAT)

PHP131,165.97

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from December 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP117,112.47

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:
280-8221
Mfr. Part No.:
DFPD-900-RP-90-RS60-F14
Manufacturer:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Rotary Actuator

Action Type

Single Acting

Connection Thread Standard

ISO 5211

Bore Diameter

900mm

Series

DFPD

Maximum Operating Pressure

8 bar

Minimum Operating Temperature

-20°C

Maximum Torque Rating

593.5Nm

Angle of Rotation

90°

Maximum Operating Temperature

60°C

Weight

30.4kg

Better World Product

Yes

Better World Claim

Repairable by the End User

Model Number

8065266

COO (Country of Origin):
IT

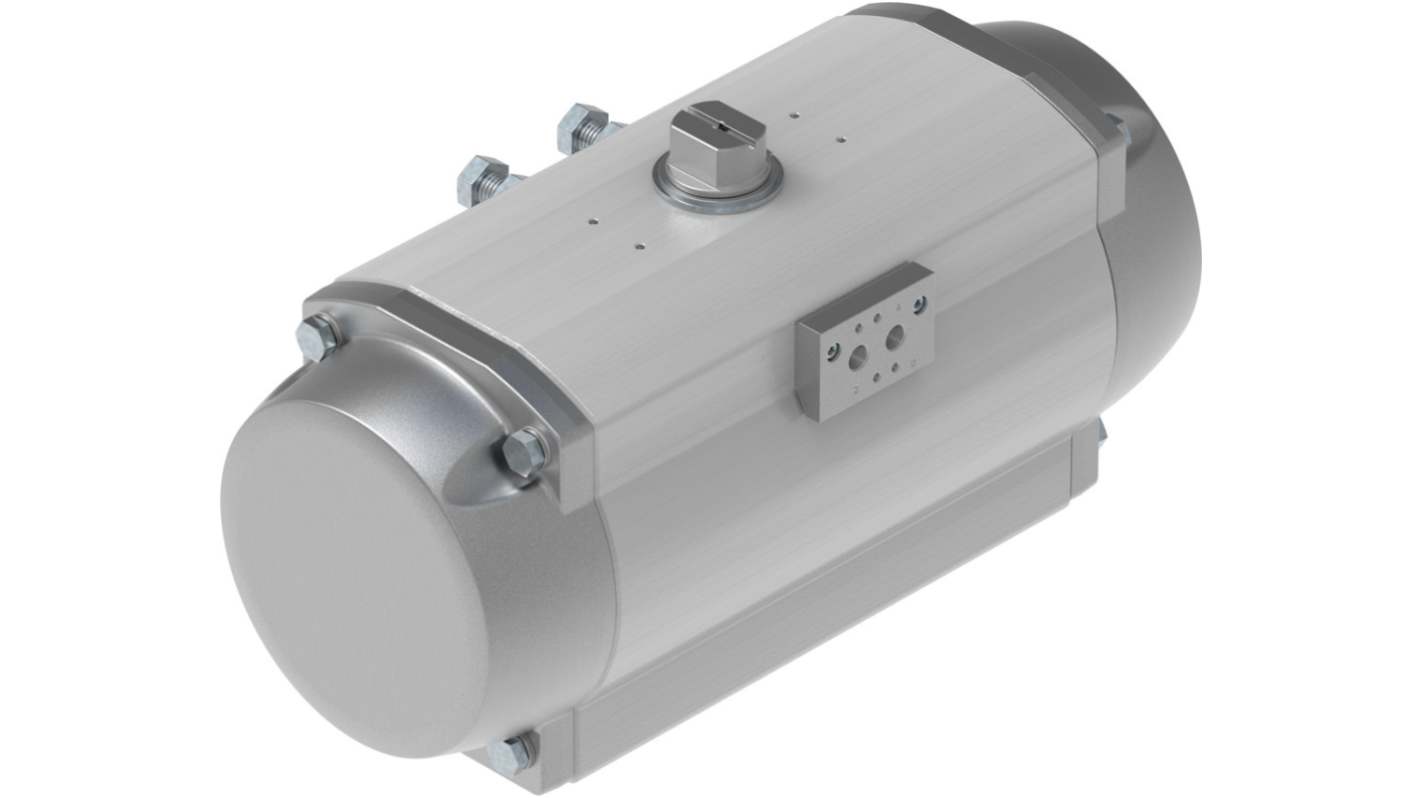

Festo DFPD Series Pneumatic Rotary Actuator, 90 Rotary Angle, 900mm Bore - DFPD-900-RP-90-RS60-F14, Numeric Part Number: 8065266


This pneumatic rotary actuator is designed for robust industrial applications, featuring a 90-degree swivel angle and a standard bore of 900mm. Built to accommodate a maximum operating pressure of 8 bar, it ensures efficient performance in various automation settings. The actuator is part of the DFPD series, well-regarded for its reliability in demanding environments, weighing in at 30,395g.

Features & Benefits


• Single-acting design enables reliable operation

• 90-degree swivel angle allows precise positioning

• Robust flange hole pattern conforms to F14 standards

• G 1/4 port connection simplifies installation

• High torque capacity up to 593.5 Nm at nominal pressure

Applications


• Ideal for valve automation in processing industries

• Suitable for requiring precise angular movement

• Used with safety systems in pneumatic control setups

• Ideal for equipment requiring high torque output

What is the significance of the safety function in this actuator?


The safety function ensures that the actuator returns to a predefined position when the compressed air supply is interrupted, providing added safety in automated processes. This is particularly crucial in scenarios where unexpected shutdowns may occur, ensuring no unintended movements.

How can the installation be optimised for this product?


Proper alignment with the ISO 5211 standard is essential for seamless integration with valves. Additionally, ensuring correct shaft depth and securely fastening the connections will prevent operational issues and maintain efficiency.

What environmental conditions can this actuator accommodate?


Designed for diverse applications, it can operate effectively in ambient temperatures ranging from -20°C to +80°C. It is also suitable for moderate corrosion environments, making it adaptable to various industry settings.
