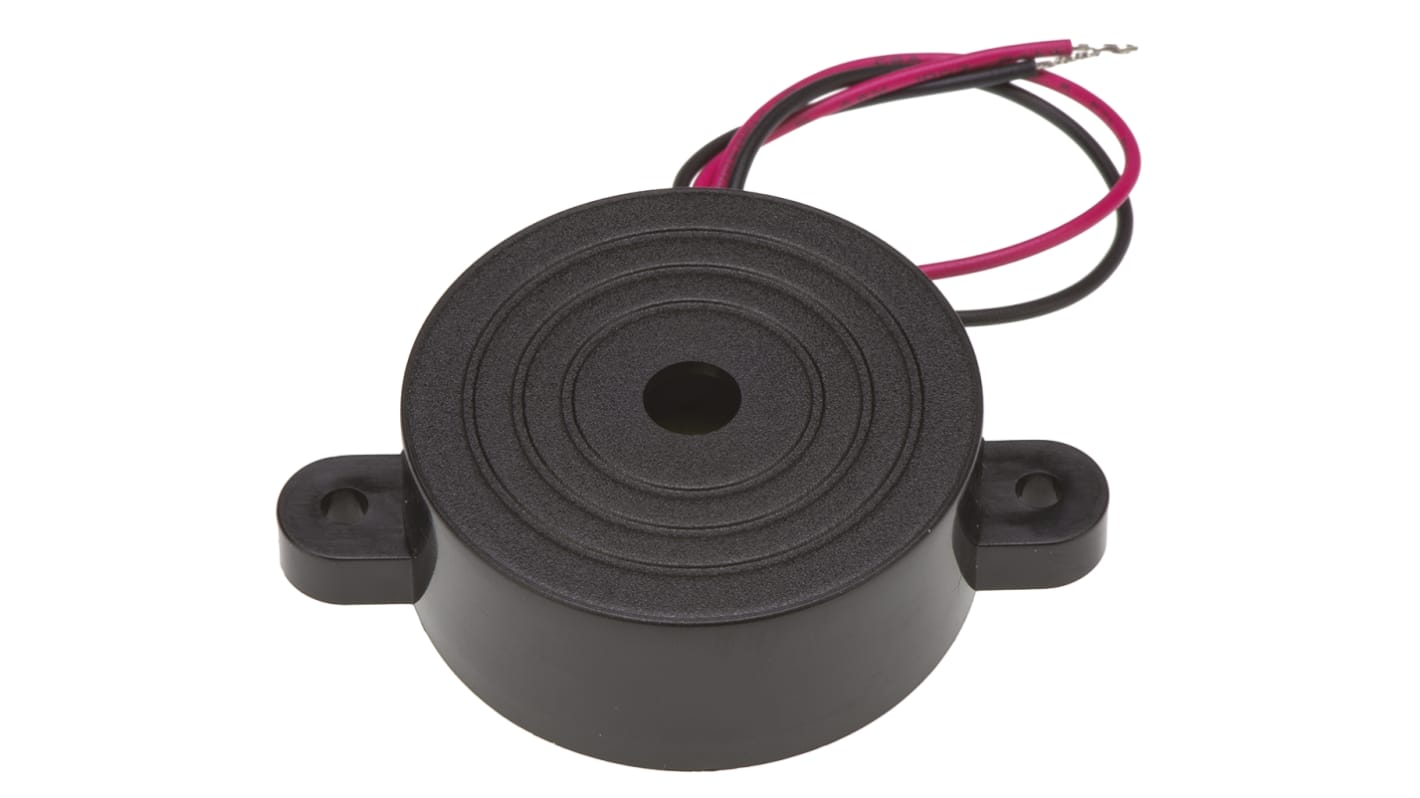

RS PRO 92 dB Panel Mount Continuous Internal 16 mm Buzzer 50 mm 3 V Min 20 V Max

This buzzer's internal circuitry allows it to be fitted directly onto a printed circuit board (PCB). It boasts flying leads for quick connections, while its ABS (acrylonitrile butadiene styrene) outer construction makes it very resistant to shock and chemicals. This piezo buzzer generates sounds with a much larger pressure level in comparison to magnetic buzzers. It can also operate with a relatively low current of 12 mA.

This component has been thoroughly tested to meet RS PRO standards. It can safely be utilised in a temperature range between -30°C and +85°C. You're likely to find it in alarms and warning devices, as well as telephone dial tones and toy or game sounds.

• Sound level of 92 dB

• Internal drive

• Panel mounting

• Dimensions of 41.8 mm (Dia.) x 16 mm (H) x 50 mm (L)

• Supply current of 12 mA

• Minimum operating temperature of -30°C

• Maximum operating temperature of +85°C

• Minimum supply voltage of 3 V (DC)

• Maximum supply voltage of 20 V (DC)

• Frequency range of 2300 Hz to 3.3 kHz
