RS PRO 73 dB Panel Mount Continuous Internal 14.5 mm Piezo Buzzer Component 34 mm 3 V dc Min 20 V dc Max
- RS Stock No.:
- 622-1499
- Distrelec Article No.:
- 304-04-767
- Manufacturer:
- RS PRO

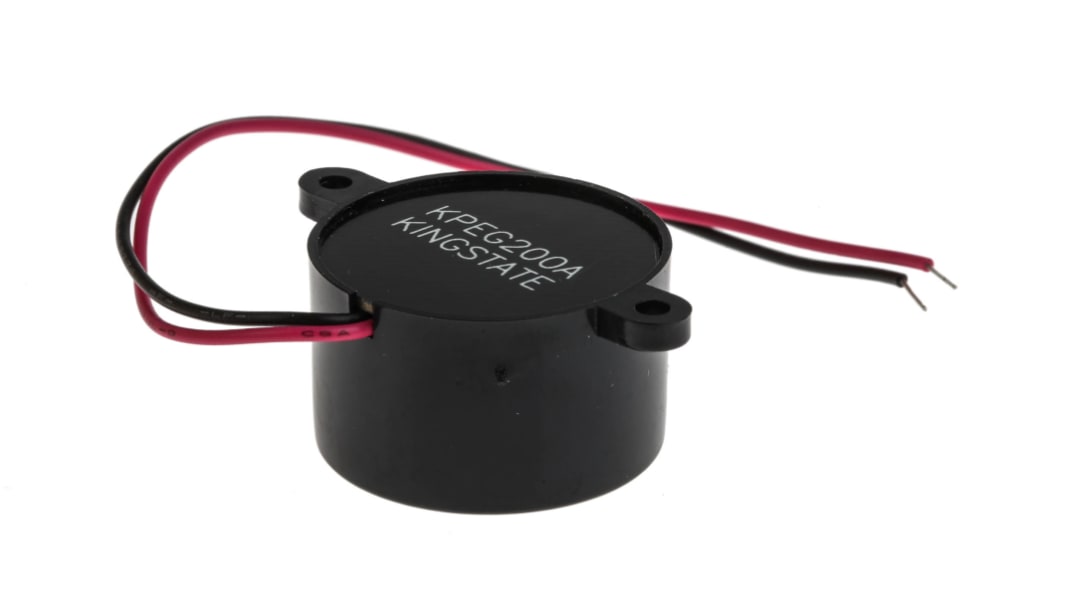

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP275.00
(exc. VAT)
PHP308.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 5,036 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from April 03, 2026
- Plus 33 unit(s) shipping from April 03, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP275.00 |
| 10 - 24 | PHP266.74 |
| 25 + | PHP219.51 |
*price indicative
- RS Stock No.:
- 622-1499
- Distrelec Article No.:
- 304-04-767
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Panel Mount | |
| Product Type | Piezo Buzzer Component | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 20V dc | |
| Sound Level | 73dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 23.8 mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 34mm | |
| Height | 14.5mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 3.6kHz | |
| Supply Current | 14mA | |
| Minimum Frequency | 2600Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Panel Mount | ||
Product Type Piezo Buzzer Component | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 20V dc | ||
Sound Level 73dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 23.8 mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Length 34mm | ||
Height 14.5mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 3.6kHz | ||
Supply Current 14mA | ||
Minimum Frequency 2600Hz | ||
- COO (Country of Origin):
- TW
RS PRO 20 V DC, Panel Mount Buzzer, 73 dB Continuous
Safely and simply generate sounds from your electronic equipment with this piezo buzzer from RS PRO. It has a resonant frequency of 2.8 kHz, Plus you can easily wire it to release a continuous tone of up to 73 dB.
This buzzer can function with a low current of 14 mA. It features internal circuitry and can be fitted directly onto a printed circuit board (PCB). Its ABS (acrylonitrile butadiene styrene) housing makes it highly shock- and chemical-resistant, and it boasts flying leads for quick connections. This piezo buzzer generates sounds with a much larger pressure level when you compare it to magnetic buzzers.
This handy component has been extensively tested to meet the strictest RS PRO safety and quality standards. It's safe for use in a temperature range between -30°C and +85°C. It's used for alarms, as well as telephone dial tones and toy or game sounds.
Features and Benefits
• Continuous piezo buzzer
• Sound level of 73 dB
• Resonant frequency of 2.8 kHz
• Internal drive
• Flange mounting
• Dimensions of 23.8 (Dia) x 14.5 mm (H) x 34 mm (L)
• Supply current of 14 mA
• Minimum operating temperature of -30°C
• Maximum operating temperature of +85°C
• Minimum supply voltage of 3 V (DC)
• Maximum supply voltage of 20 V (DC)
• Minimum frequency of 2600 Hz
• Maximum frequency of 3.6 kHz
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great Value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
