RS PRO 88 dB Panel Mount Continuous External 4 mm Piezo Buzzer Component 34 mm 30V ac Max
- RS Stock No.:
- 535-8045
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
PHP163.31
(exc. VAT)
PHP182.905
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 1,770 unit(s) shipping from May 18, 2026
- Plus 1,400 unit(s) shipping from June 23, 2026
- Plus 3,500 unit(s) shipping from October 13, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 5 - 45 | PHP32.662 | PHP163.31 |
| 50 - 120 | PHP31.68 | PHP158.40 |
| 125 + | PHP26.074 | PHP130.37 |
*price indicative
- RS Stock No.:
- 535-8045
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Panel Mount | |
| Product Type | Piezo Buzzer Component | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 88dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Diameter | 24mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Depth | 24mm | |
| Standards/Approvals | RoHS | |
| Length | 34mm | |
| Termination Style | Wire | |
| Height | 4mm | |
| Maximum Frequency | 6kHz | |
| Supply Current | 8mA | |
| Minimum Frequency | 6kHz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Panel Mount | ||
Product Type Piezo Buzzer Component | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 88dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Diameter 24mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Depth 24mm | ||
Standards/Approvals RoHS | ||
Length 34mm | ||
Termination Style Wire | ||
Height 4mm | ||
Maximum Frequency 6kHz | ||
Supply Current 8mA | ||
Minimum Frequency 6kHz | ||
Non Compliant

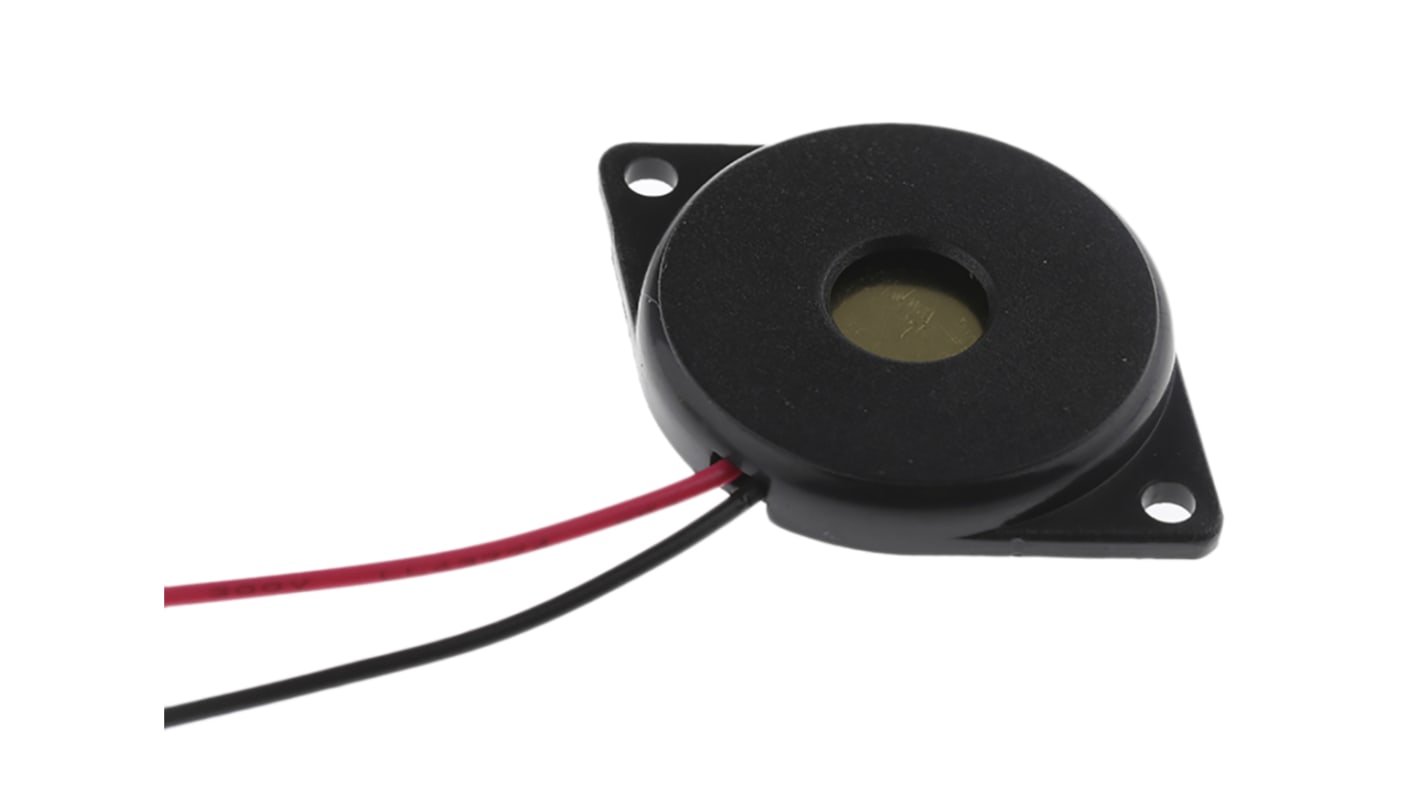

Flanged transducer flying lead
Circular cased Flanged mounting transducer
Flying lead connections
High sound output
External circuitry required for operation
