RS PRO 80 dB Through Hole Continuous External 6.7 mm Piezo Buzzer Component 30 V ac Max
- RS Stock No.:
- 535-8180
- Manufacturer:
- RS PRO

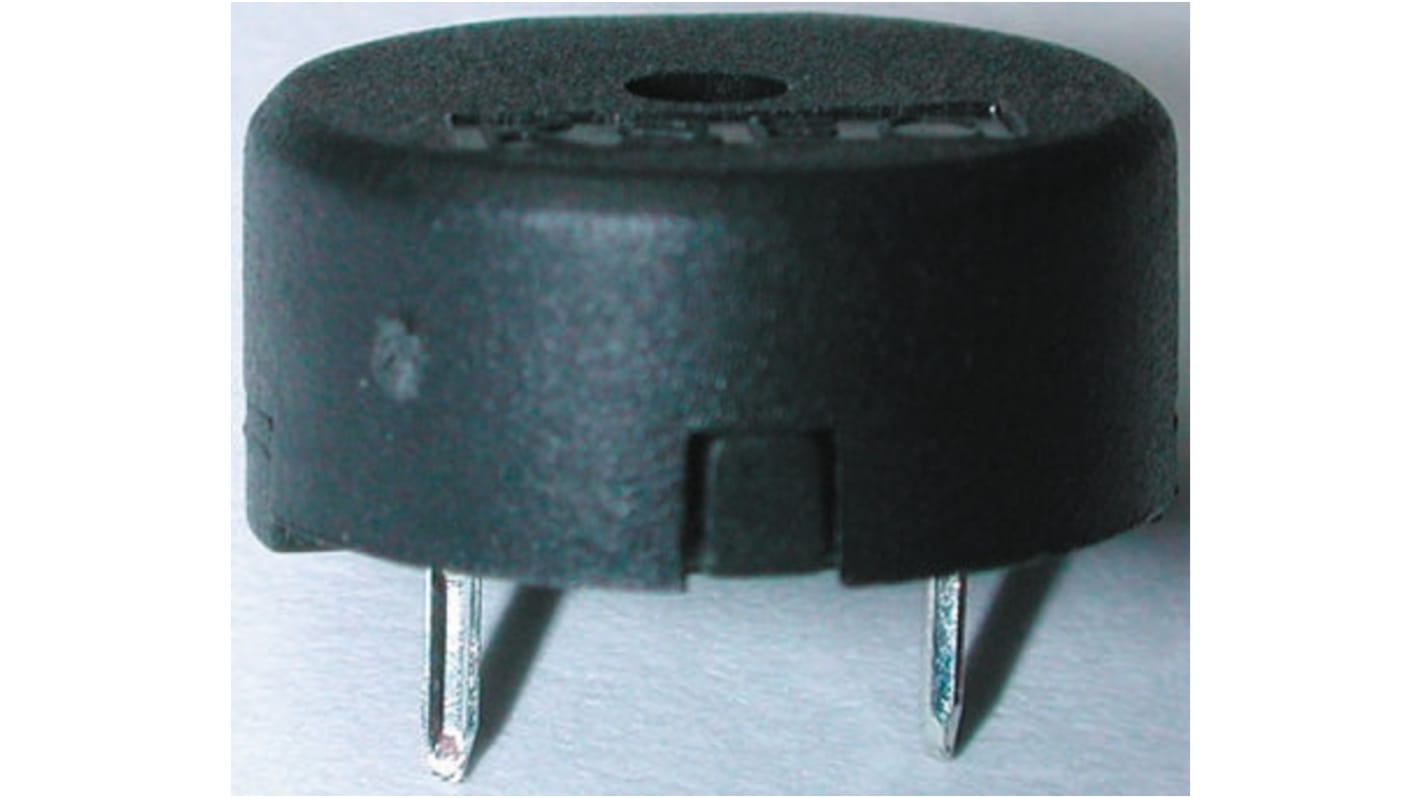

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 5 units)*
PHP209.72
(exc. VAT)
PHP234.885
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 160 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 5 - 20 | PHP41.944 | PHP209.72 |
| 25 - 45 | PHP41.062 | PHP205.31 |
| 50 + | PHP39.80 | PHP199.00 |
*price indicative
- RS Stock No.:
- 535-8180
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Through Hole | |
| Product Type | Piezo Buzzer Component | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 80dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Diameter | 14 mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 6.7mm | |
| Standards/Approvals | RoHS | |
| Termination Style | Pin | |
| Maximum Frequency | 4kHz | |
| Supply Current | 7mA | |
| Capacitance | 8500pF | |
| Minimum Frequency | 4kHz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Through Hole | ||
Product Type Piezo Buzzer Component | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 80dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Diameter 14 mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Height 6.7mm | ||
Standards/Approvals RoHS | ||
Termination Style Pin | ||
Maximum Frequency 4kHz | ||
Supply Current 7mA | ||
Capacitance 8500pF | ||
Minimum Frequency 4kHz | ||
Non Compliant
Round PCB mount Piezo transducers
Circular cased PCB mounting
High sound output transducers
Requires external drive circuits to operate
