RS PRO 75 dB Through Hole Continuous External 6.7 mm Piezo Buzzer Component 1 V ac Min 30 V ac Max
- RS Stock No.:
- 457-065
- Manufacturer:
- RS PRO

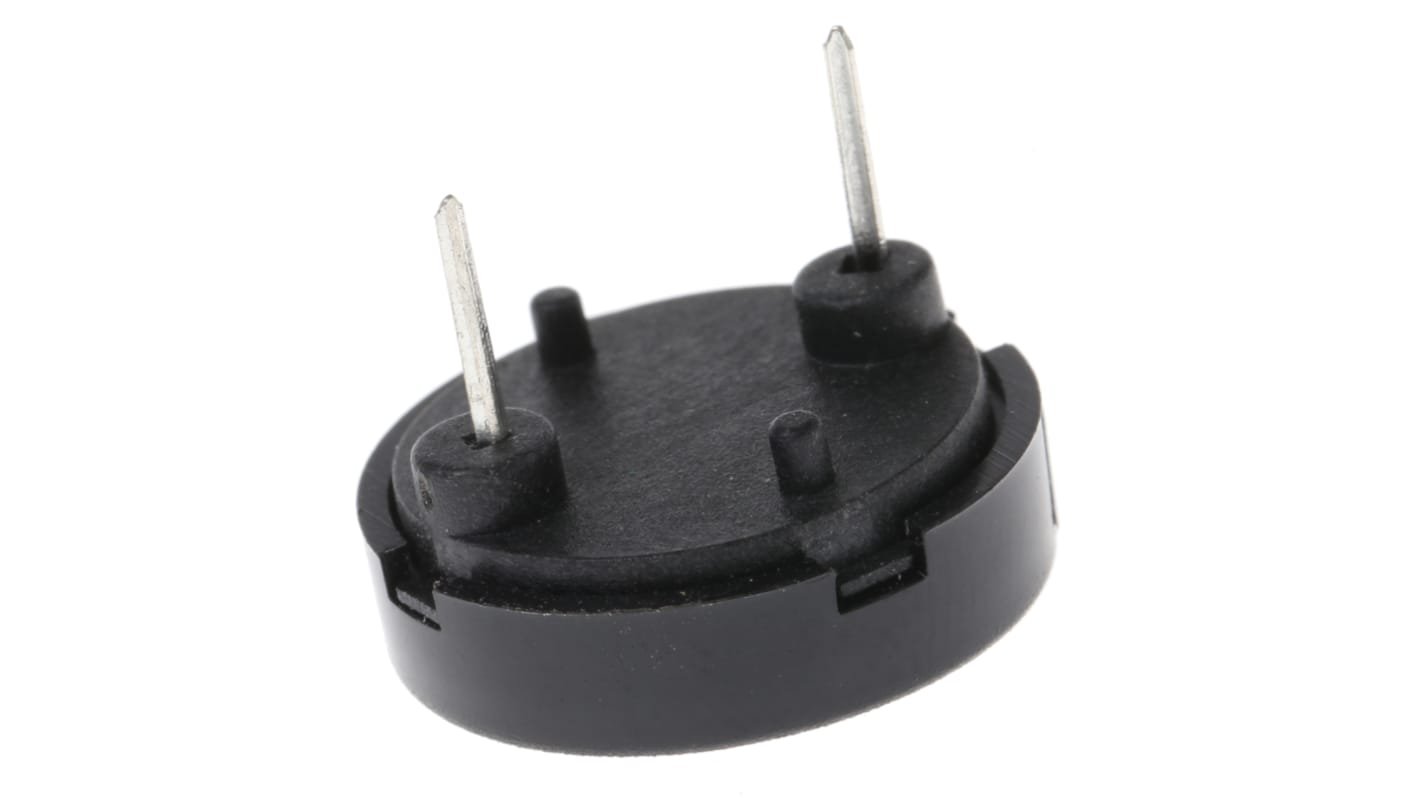

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
PHP527.01
(exc. VAT)
PHP590.25
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 475 unit(s) shipping from March 23, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | PHP105.402 | PHP527.01 |
| 50 - 95 | PHP102.238 | PHP511.19 |
| 100 - 495 | PHP99.172 | PHP495.86 |
| 500 - 995 | PHP96.20 | PHP481.00 |
| 1000 + | PHP79.17 | PHP395.85 |
*price indicative
- RS Stock No.:
- 457-065
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Piezo Buzzer Component | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 1V ac | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 75dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Diameter | 16.5 mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 6.7mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 4.5kHz | |
| Supply Current | 1mA | |
| Capacitance | 10nF | |
| Minimum Frequency | 3500Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Piezo Buzzer Component | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 1V ac | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 75dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Diameter 16.5 mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Height 6.7mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 4.5kHz | ||
Supply Current 1mA | ||
Capacitance 10nF | ||
Minimum Frequency 3500Hz | ||
- COO (Country of Origin):
- CN
Round PCB mount Piezo transducers
Circular cased PCB mounting
High sound output transducers
Requires external drive circuits to operate
