Same Sky 80 dB Surface Mount Buzzer Internal Magnetic Buzzer 5 mm 4 V dc Min 9.6 mm 7 V dc Max
- RS Stock No.:
- 259-6217
- Mfr. Part No.:
- CMI-9655S-SMT-TR
- Manufacturer:
- Same Sky

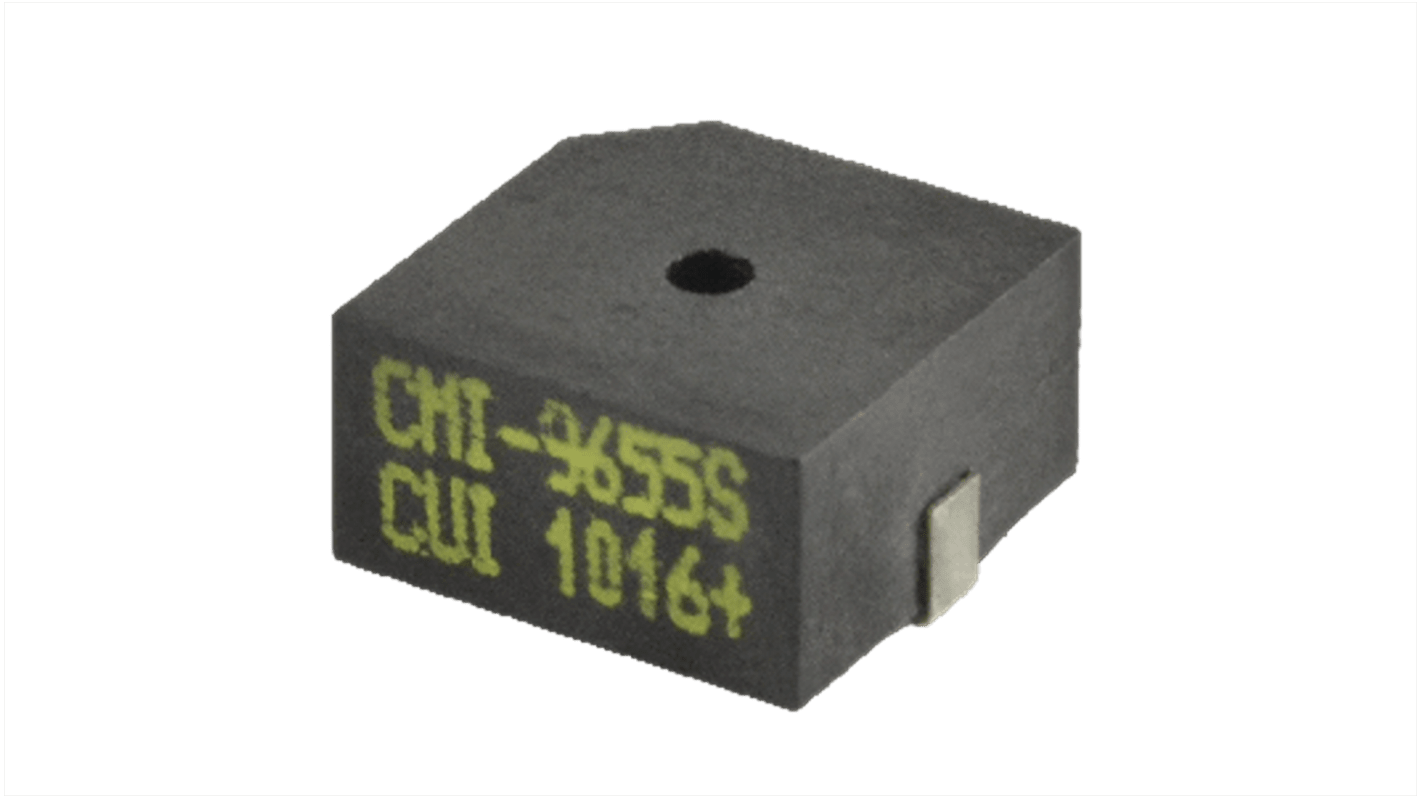

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
PHP167.68
(exc. VAT)
PHP187.80
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 895 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP167.68 |
| 10 - 99 | PHP159.40 |
| 100 - 249 | PHP151.13 |
| 250 - 499 | PHP143.95 |
| 500 + | PHP136.76 |
*price indicative
- RS Stock No.:
- 259-6217
- Mfr. Part No.:
- CMI-9655S-SMT-TR
- Manufacturer:
- Same Sky
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Product Type | Magnetic Buzzer | |
| Mount Type | Surface Mount | |
| Minimum Supply Voltage | 4V dc | |
| Maximum Supply Voltage | 7V dc | |
| Sound Level | 80dB | |
| Drive Type | Internal | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 85°C | |
| Height | 5mm | |
| Standards/Approvals | RoHS | |
| Length | 9.6mm | |
| Maximum Frequency | 3000Hz | |
| Minimum Frequency | 2400Hz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Product Type Magnetic Buzzer | ||
Mount Type Surface Mount | ||
Minimum Supply Voltage 4V dc | ||
Maximum Supply Voltage 7V dc | ||
Sound Level 80dB | ||
Drive Type Internal | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 85°C | ||
Height 5mm | ||
Standards/Approvals RoHS | ||
Length 9.6mm | ||
Maximum Frequency 3000Hz | ||
Minimum Frequency 2400Hz | ||
- COO (Country of Origin):
- CN
The CUI devices piezo buzzers offers an driving circuit with a mounting type of surface mount and having a sound pressure level of 80 dB. It consist of a voltage rating of 5 V and an internal drive type.
Storage temperature of -40°C - 85°C
Made up of PPS material
