Same Sky 90 dB Surface Mount Buzzer Internal Magnetic Buzzer 10 mm 4 V Min 12.8 mm 7 V Max

RS Stock No.:: 259-6320
Mfr. Part No.:: CT-1205C-SMT-TR
Manufacturer:: Same Sky

Same Sky 90 dB Surface Mount Buzzer Internal Magnetic Buzzer 10 mm 4 V Min 12.8 mm 7 V Max

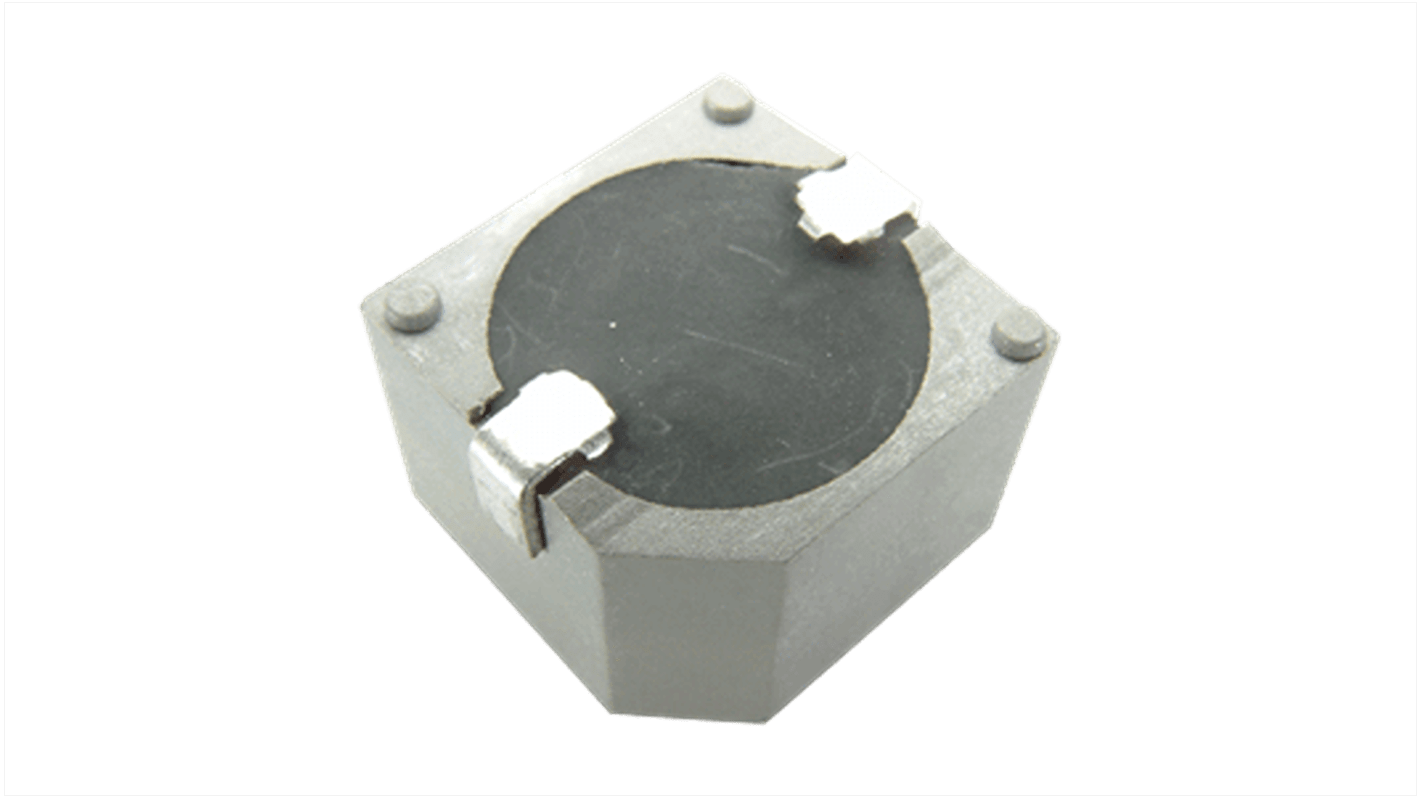

This image is representative of the product range

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 259-6320
Mfr. Part No.:: CT-1205C-SMT-TR
Manufacturer:: Same Sky

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Same Sky
	Mount Type	Surface Mount
	Product Type	Magnetic Buzzer
	Minimum Supply Voltage	4V
	Maximum Supply Voltage	7V
	Sound Level	90dB
	Drive Type	Internal
	Tone Type	Buzzer
	Maximum Operating Temperature	70°C
	Length	12.8mm
	Height	10mm
	Standards/Approvals	RoHS
	Maximum Frequency	2550Hz
	Minimum Frequency	2250Hz

	Select all
	Brand Same Sky
	Mount Type Surface Mount
	Product Type Magnetic Buzzer
	Minimum Supply Voltage 4V
	Maximum Supply Voltage 7V
	Sound Level 90dB
	Drive Type Internal
	Tone Type Buzzer
	Maximum Operating Temperature 70°C
	Length 12.8mm
	Height 10mm
	Standards/Approvals RoHS
	Maximum Frequency 2550Hz
	Minimum Frequency 2250Hz

Datasheet - CT-1205C-SMT-TR

COO (Country of Origin):: CN

The CUI devices piezo buzzers with a mounting type of surface mount and having a sound pressure level of 90 dB. It consist of a voltage rating of 5 V and an internal drive type.

Storage temperature of -40°C - 85°C

Made up of PPS material

Same Sky 90 dB Surface Mount Buzzer Internal Magnetic Buzzer 10 mm 4 V Min 12.8 mm 7 V Max
