RS PRO 90 dB Lead Wire Buzzer Internal 16 mm Piezo Buzzer Component 60 mm 3 V dc Min 28 V dc Max
- RS Stock No.:
- 179-7426
- Manufacturer:
- RS PRO
This image is representative of the product range
Subtotal (1 tray of 49 units)*
PHP10,993.248
(exc. VAT)
PHP12,312.426
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 245 unit(s) shipping from May 14, 2026
- Plus 98 unit(s) shipping from June 11, 2026
- Plus 294 unit(s) shipping from June 25, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 49 + | PHP224.352 | PHP10,993.25 |
*price indicative
- RS Stock No.:
- 179-7426
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Lead Wire | |
| Product Type | Piezo Buzzer Component | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 28V dc | |
| Sound Level | 90dB | |
| Drive Type | Internal | |
| Tone Type | Buzzer | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Length | 60mm | |
| Height | 16mm | |
| Depth | 16mm | |
| Maximum Frequency | 2.8kHz | |
| Supply Current | 9mA | |
| Minimum Frequency | 2.3Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Lead Wire | ||
Product Type Piezo Buzzer Component | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 28V dc | ||
Sound Level 90dB | ||
Drive Type Internal | ||
Tone Type Buzzer | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Length 60mm | ||
Height 16mm | ||
Depth 16mm | ||
Maximum Frequency 2.8kHz | ||
Supply Current 9mA | ||
Minimum Frequency 2.3Hz | ||
- COO (Country of Origin):
- CN

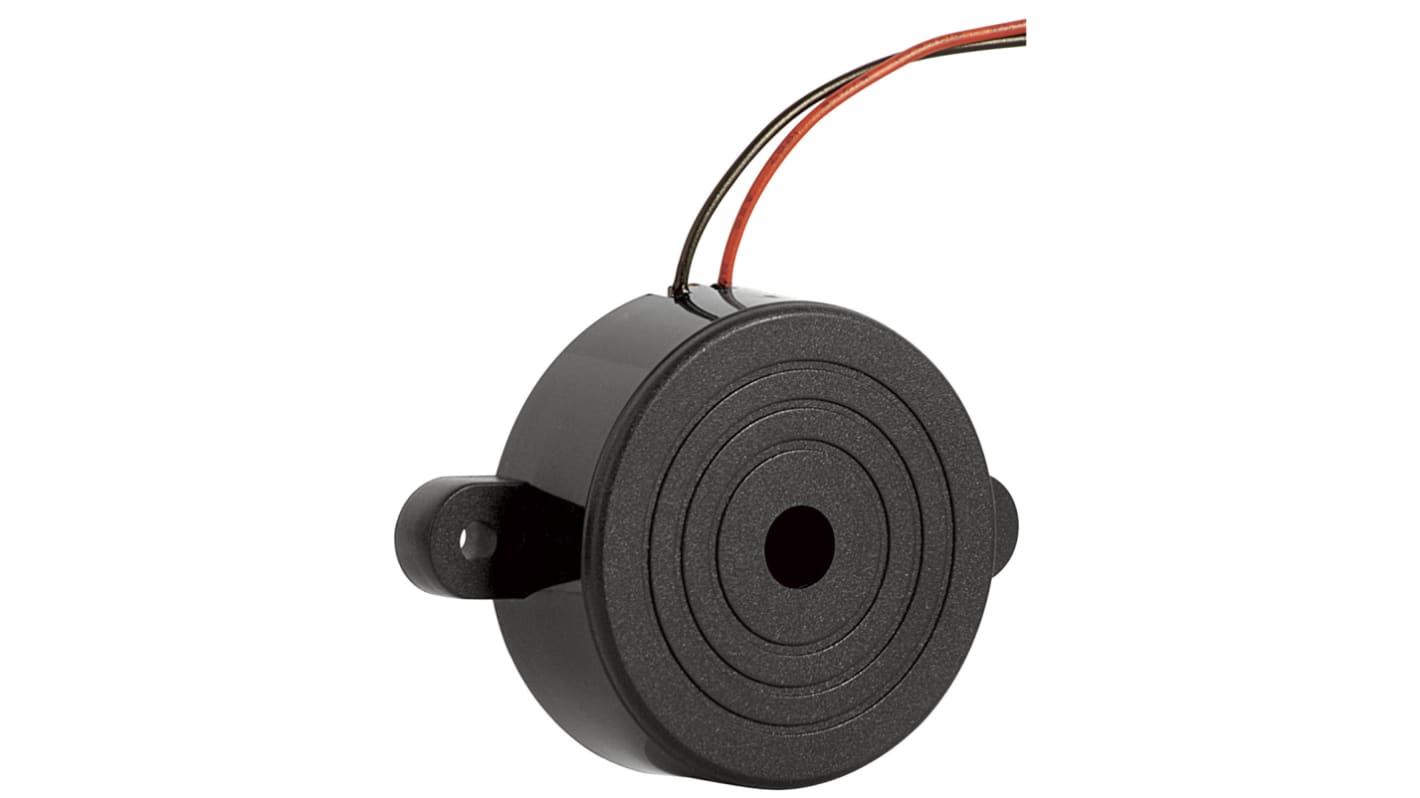

RS PRO Internal Piezo Buzzer
The RS PRO 90dB, lead wire mount piezo buzzer is an indicator with an internal drive circuit. It has a slow pulse sound output and fitted with 140mm leads. The buzzer has an electrical rating of 12VDC and =9mA. This buzzer is used where audible feedback or warning signal is required.
Features and Benefits
• Buzzer operates between 3 and 28VDC
• Housing material is ABS black
• Operating temperature ranges between -20°C and 60°C
Certifications
• UL1007 AWG24
