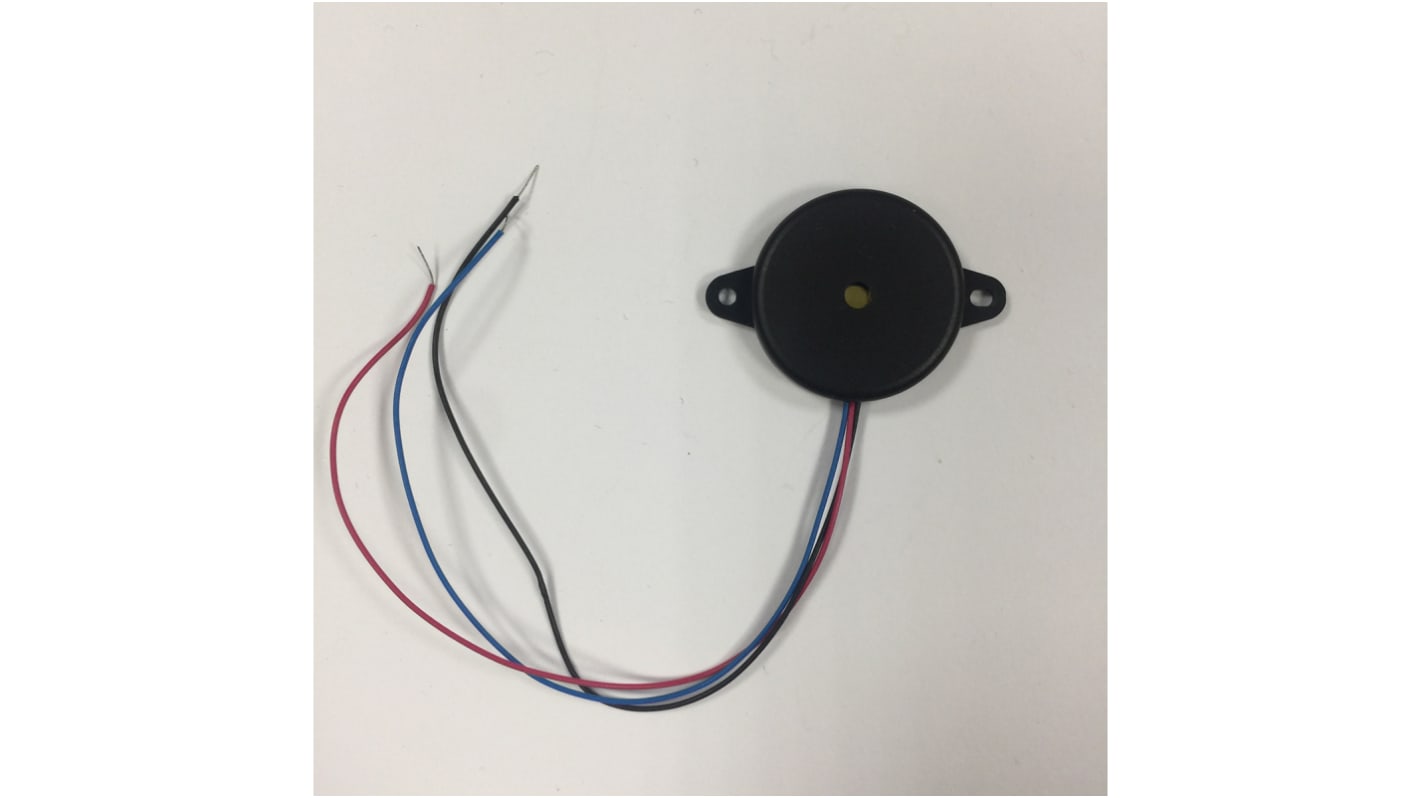

RS PRO 83dB Flange Mount Continuous Piezo Buzzer, 24 (Dia.) x 5mm, 3V dc Min, 28V dc Max
- RS Stock No.:
- 181-2653
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 box of 5000 units)*
PHP324,360.00
(exc. VAT)
PHP363,285.00
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from July 28, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 5000 - 5000 | PHP64.872 | PHP324,360.00 |
| 10000 + | PHP62.926 | PHP314,630.00 |
*price indicative
- RS Stock No.:
- 181-2653
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mounting Type | Flange Mount | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 28V dc | |
| Sound Level | 83dB | |
| Tone Type | Continuous | |
| Diameter | 24mm | |
| Height | 5mm | |
| Dimensions | 24 (Dia.) x 5mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Maximum Frequency | 4.5kHz | |
| Supply Current | 13mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mounting Type Flange Mount | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 28V dc | ||
Sound Level 83dB | ||
Tone Type Continuous | ||
Diameter 24mm | ||
Height 5mm | ||
Dimensions 24 (Dia.) x 5mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Maximum Frequency 4.5kHz | ||
Supply Current 13mA | ||
- COO (Country of Origin):
- CN
The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -30°C to +85°C and voltage range of 3V dc to 28V dc. The material used for buzzer is high heat ABS UL-94 1/16” HB and it has wire type terminal.
Sound Level 83dB
Tone Type Continuous
Diameter 24mm
Height 5mm
Tone Type Continuous
Diameter 24mm
Height 5mm
