Schneider Electric Pendant Switch
- RS Stock No.:
- 288-2263
- Mfr. Part No.:
- XACB229
- Manufacturer:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 288-2263
- Mfr. Part No.:
- XACB229
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Pendant Switch | |
| Housing Material | Glass Reinforced Polymer | |
| IP Rating | IP65 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Number of Switches | 2 | |
| Standards/Approvals | EN/IEC 60947-5-1, CSA C22.2 Nr. 14, EN/IEC 60204-32 | |
| Series | Harmony | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Pendant Switch | ||
Housing Material Glass Reinforced Polymer | ||
IP Rating IP65 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Number of Switches 2 | ||
Standards/Approvals EN/IEC 60947-5-1, CSA C22.2 Nr. 14, EN/IEC 60204-32 | ||
Series Harmony | ||
- COO (Country of Origin):
- CZ

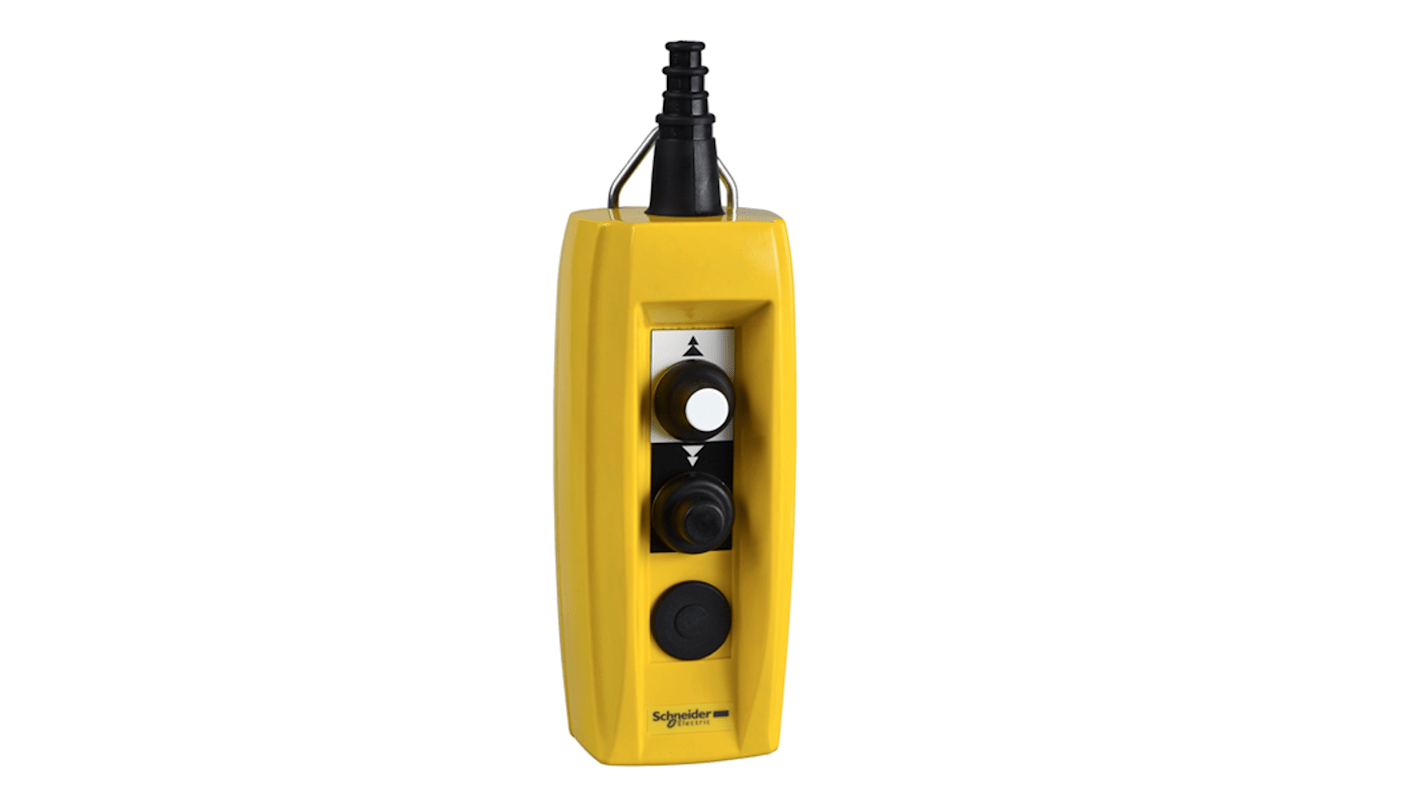

The Schneider Electric Pendant control station is a double insulated device made of glass reinforced polyester. It is designed for controlling a 2-speed hoist motor with its 2 push-buttons. With mechanical interlocking and a yellow colour, it offers reliable control for various industrial applications.
Double insulated pendant control station made of glass reinforced polyester
Control of 2 speed hoist motor with 2 push buttons for raise/lower operation
Mechanical interlocking ensures safe operation
Yellow colour for easy identification in industrial settings
IP65 degree of protection for use in harsh environments
Suitable for reversing operation with XESD1291 contact block
Multiple screw clamp terminals for easy and secure connections
