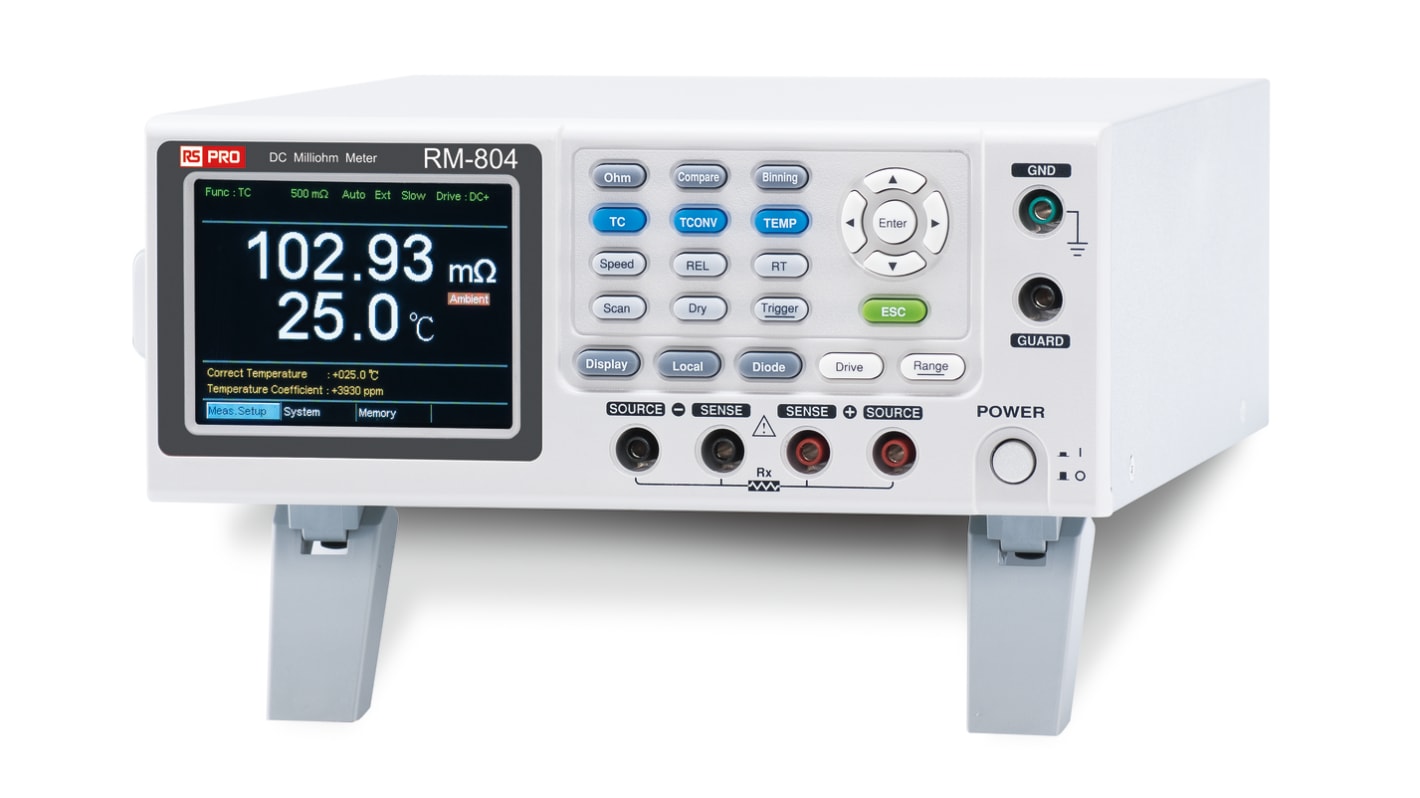

Name: RS PRO RM-804 GPIB Ohmmeter, 1 μΩ
Brand: RS PRO
SKU: 122-5157
Price: 77120.94 PHP
Availability: OutOfStock

Software download available here

RS PRO RM-804/805 Series High Precision Programmable DC Milliohm Meters

RS PRO RM-804/805 Series DC milliohm meter models which offer Handler, RS-232C and USB device interfaces. Options available (RM-804, 122-5158 ) plus option 01 GPIB (RM-804-01, 122-5157 ) or standard GPIB (RM-805, 122-5156 ). These milli-ohmmeters are ideal for calculating low resistance at high precision to verify the value of the electrical circuit.

These ohmmeters provide better display interface, fast measurement (60 readings per second) and collocate with standard communications interface (RS-232C/USB device) to facilitate users in obtaining measurement tasks quickly. These instruments have two measurement speed selections which are Fast (60 readings per second) and Slow (10 readings per second). The reading resolution will not be changed by changing speed and the display digits remain the same.

Model RM-805 (122-5156) offers drive modes DC+/DC-, Pulsed, PWM, Zero, for measurement applications on different materials. Pulsed current output mode reduces thermal EMF influence. DC+ and DC- output modes are best for measuring inductive components. PWM output mode, ideal for temperature-sensitive materials, can avoid resistance value variation due to overload on current measurement over time.

Model RM-805 (122-5156) also offers dry circuit which can limit applied voltage, under the open circuit voltage of 20 mV, to avoid over voltage occurring on both ends of components.

RS Pro RM-804/805 Series provides a D-sub 25-pin combined interface to connect Handler, Scan or EXT IO to a sorting machine, connect with an external on-off switch and enable external trigger control. These ohmmeters offer faster measurement with sacrificing the resolution.

Features and Benefits

50 000 counts

3.5 inch (320 x 240) TFT LCD display

High accuracy, 0.05% precision

1 A test current, 1 μΩ resolution

Fast measurement, 60 readings per second

Four wire resistance measurement

Temperature compensation measurement function

Delayed measurement

20 sets of panel setting memory

Interface - USB device, RS-232C, Handler/Scan/EXT I/O, and GPIB (option)

Typical Applications

Ohmmeters are electrical instruments that measure electrical resistance of a circuit. There are various types of meters available with different sensitivity levels which include micro, mega and milli ohmmeters. These RS PRO meters are milliohmmeters and can be used for:

Production testing for contact resistance of switches, relays, connectors, cables, printed circuit boards and other low resistance devices

Component testing of resistors, motors, fuses and heating elements

Incoming inspection and quality assurance testing

Conductivity evaluation for product design

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Ohmmeter
	Resistance Resolution	1μΩ
	Power Source	100/240 V ac
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	40°C
	Maximum Accuracy	0.05 %
	Length	283mm
	Width	223 mm
	Model Number	RM-804 GPIB
	Standards/Approvals	MILSTD1344 method 30021
	Weight	3kg
	Height	102mm
	Minimum Accuracy	0.02 %

	Select all
	Brand RS PRO
	Product Type Ohmmeter
	Resistance Resolution 1μΩ
	Power Source 100/240 V ac
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 40°C
	Maximum Accuracy 0.05 %
	Length 283mm
	Width 223 mm
	Model Number RM-804 GPIB
	Standards/Approvals MILSTD1344 method 30021
	Weight 3kg
	Height 102mm
	Minimum Accuracy 0.02 %
