Rhopoint A210-091 Handheld Ohmmeter, 100 μΩ, 4 Wire

RS Stock No.:: 611-953
Mfr. Part No.:: M210
Manufacturer:: Rhopoint

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

PHP73,539.18

(exc. VAT)

PHP82,363.88

(inc. VAT)

Add 1 unit to get free delivery

Orders below PHP3,000.00 (exc. VAT) cost PHP150.00.

In Stock

3 unit(s) ready to ship from another location
Plus 2 unit(s) shipping from May 15, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	PHP73,539.18
5 +	PHP71,333.01

*price indicative

RS Stock No.:: 611-953
Mfr. Part No.:: M210
Manufacturer:: Rhopoint

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rhopoint
	Product Type	Ohmmeter
	Resistance Resolution	100μΩ
	Measurement Type	4 Wire
	Battery Type	PP3
	Power Source	Battery
	Handheld	Yes
	Minimum Operating Temperature	5°C
	Maximum Accuracy	0.1 %
	Maximum Operating Temperature	35°C
	Weight	510g
	Standards/Approvals	No
	Length	80mm
	Model Number	A210-091
	Height	150mm
	Width	38 mm
	Minimum Accuracy	±0.1 %

	Select all
	Brand Rhopoint
	Product Type Ohmmeter
	Resistance Resolution 100μΩ
	Measurement Type 4 Wire
	Battery Type PP3
	Power Source Battery
	Handheld Yes
	Minimum Operating Temperature 5°C
	Maximum Accuracy 0.1 %
	Maximum Operating Temperature 35°C
	Weight 510g
	Standards/Approvals No
	Length 80mm
	Model Number A210-091
	Height 150mm
	Width 38 mm
	Minimum Accuracy ±0.1 %

RoHS Status: Exempt

COO (Country of Origin):: GB

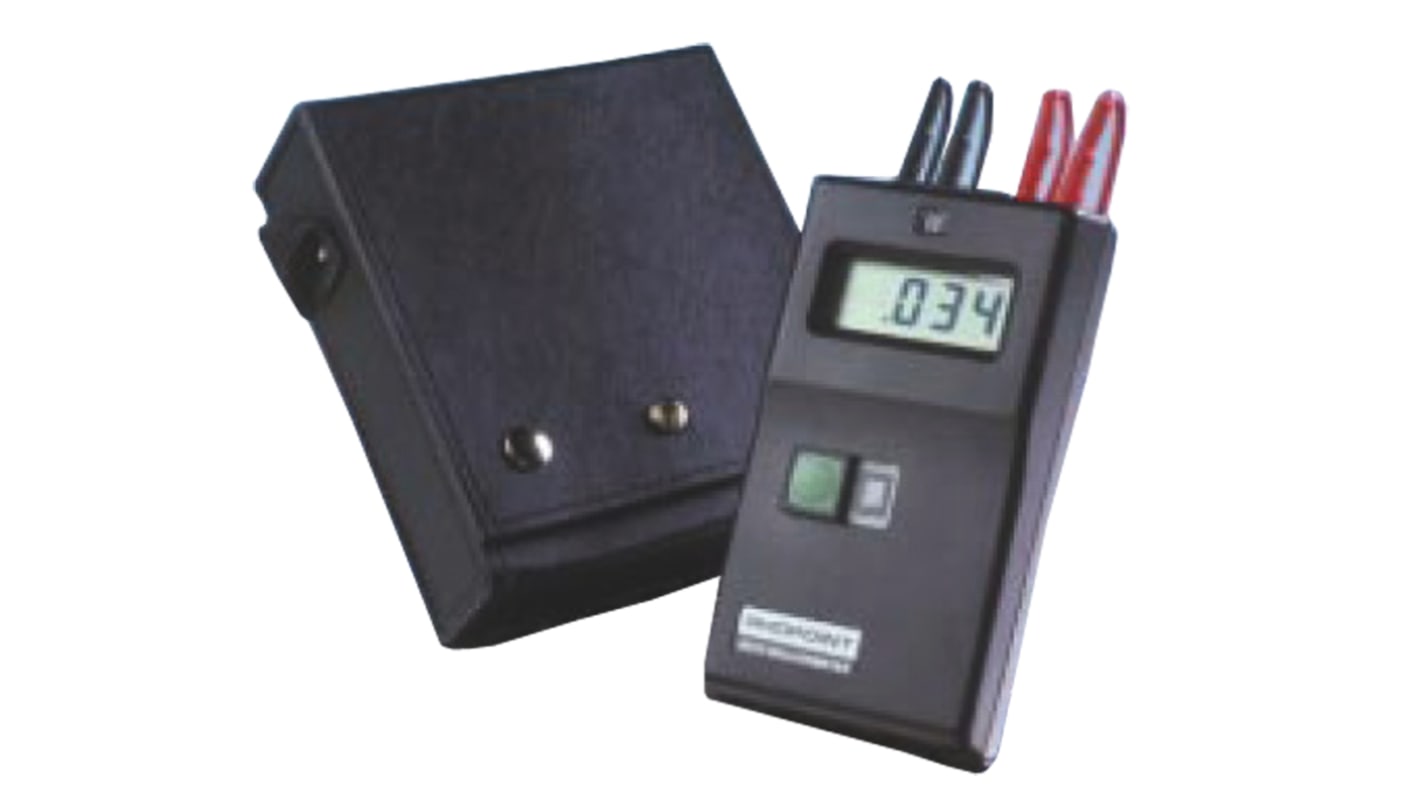

Rhopoint Digital Milliohm Meter

The Rhopoint digital milliohm meter is a portable, low resistance digital gauge designed to measure resistance between 1mohm and 200ohm. A high degree of accuracy is achieved by utilising a 4-terminal input to eliminate errors caused by test lead length. One of the most important features of the milliohm meter is its low test current rating of about 0.005A. This ensures the contact being tested is not harmed by the test current, which can happen when higher test currents are used that may lead to erroneous measurements.

Features and Benefits

Accuracy range is ±0.1%

Auto ranging (1.999ohm, 19.99ohm and 199.9ohm)

Auto switch OFF after 3 minutes

Continuous operation for 20 hours (from standard PP3 battery)

Fully calibrated and supplied with UKAS calibration certificate

Measurement increments of 0.001ohm, 0.01ohm and 0.1ohm

Single pushbutton operation

Supplied with a set of standard test leads with spring clip connectors

Applications

Aircraft bonding check

Earth conductor continuity

Network cabling

PCB (plated through-holes)

PCB (track resistance)

Relay, switch and connector contacts

RFI shielding and coil resistance

Ring circuit testing

Transformer and motor windings

Wire-wrapped and solder joints

Certifications

ANSI/ESD S20.20:2014

BS EN 61340-5-1:2007
