Texas Instruments, Stepper Motor Driver IC, 10.8 V 1.5 A 24-Pin, HTSSOP
- RS Stock No.:
- 774-1398P
- Mfr. Part No.:
- DRV8834PWP
- Manufacturer:
- Texas Instruments

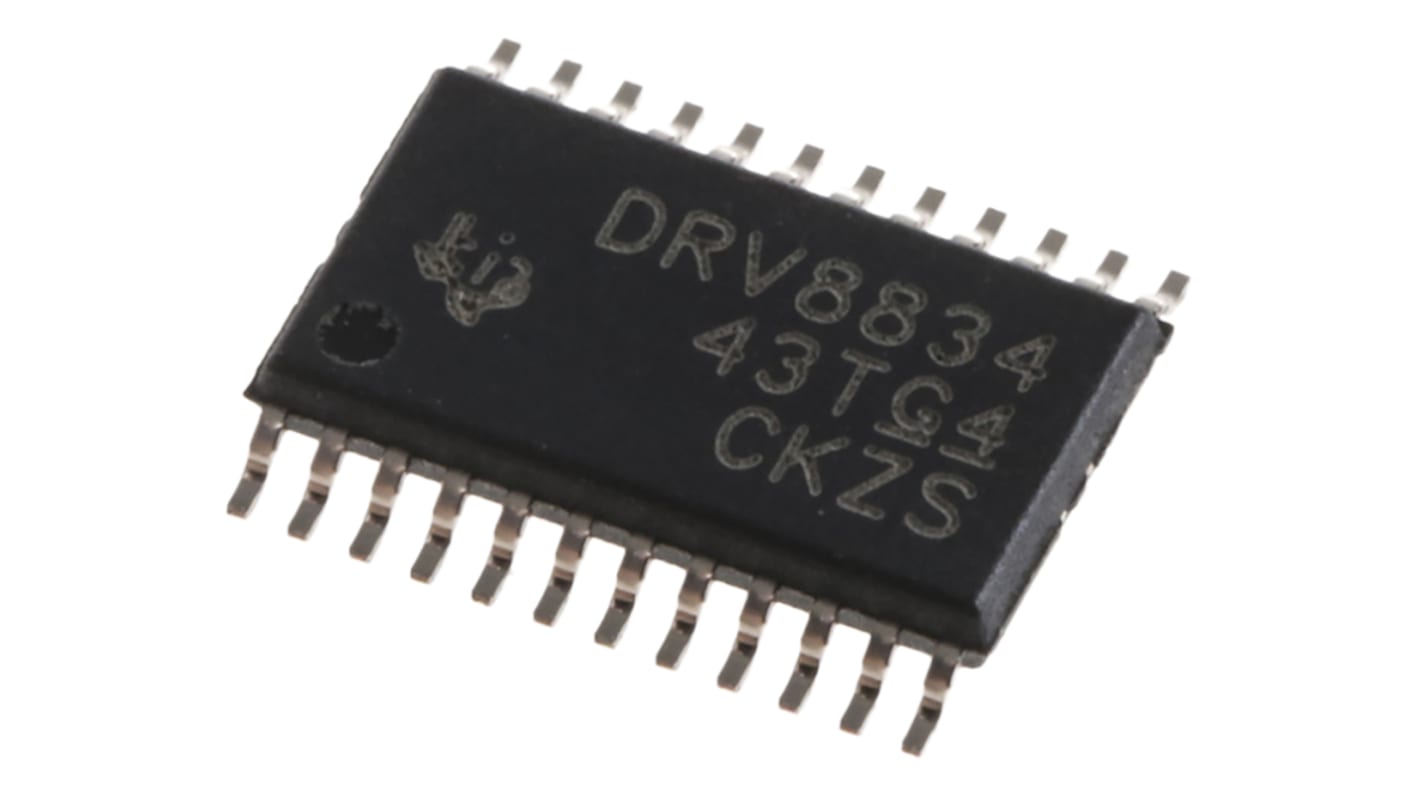

This image is representative of the product range
Bulk discount available
Subtotal 10 units (supplied in a tube)*
PHP2,778.80
(exc. VAT)
PHP3,112.30
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 907 unit(s), ready to ship from another location
Units | Per Unit |
|---|---|
| 10 - 49 | PHP277.88 |
| 50 - 99 | PHP275.00 |
| 100 - 249 | PHP265.51 |
| 250 + | PHP260.17 |
*price indicative
- RS Stock No.:
- 774-1398P
- Mfr. Part No.:
- DRV8834PWP
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Motor Type | Stepper | |
| Product Type | Motor Driver IC | |
| Configuration | Dual | |
| Maximum IGBT Collector Current | 1.5A | |
| Maximum Collector Emitter Voltage Vceo | 10.8V | |
| Mount Type | Surface | |
| Package Type | HTSSOP | |
| Output Current | 1.5A | |
| Pin Count | 24 | |
| Maximum Supply Voltage | 10.8V | |
| Minimum Supply Voltage | 2.5V | |
| Typical Switching Frequency | 42.5kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | DRV8834 | |
| Standards/Approvals | EN 61340-5-1 | |
| Height | 1.05mm | |
| Length | 7.9mm | |
| Supply Current | 4mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Motor Type Stepper | ||
Product Type Motor Driver IC | ||
Configuration Dual | ||
Maximum IGBT Collector Current 1.5A | ||
Maximum Collector Emitter Voltage Vceo 10.8V | ||
Mount Type Surface | ||
Package Type HTSSOP | ||
Output Current 1.5A | ||
Pin Count 24 | ||
Maximum Supply Voltage 10.8V | ||
Minimum Supply Voltage 2.5V | ||
Typical Switching Frequency 42.5kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series DRV8834 | ||
Standards/Approvals EN 61340-5-1 | ||
Height 1.05mm | ||
Length 7.9mm | ||
Supply Current 4mA | ||
Automotive Standard No | ||
Stepper Drivers with FETs, Texas Instruments
A range of dedicated Stepper Motor Driver ICs from Texas Instruments.
