Vishay TrenchFET Type N-Channel MOSFET, 30 A, 40 V Enhancement, 3-Pin TO-252 SQD40052EL_GE3
- RS Stock No.:
- 228-2948
- Mfr. Part No.:
- SQD40052EL_GE3
- Manufacturer:
- Vishay

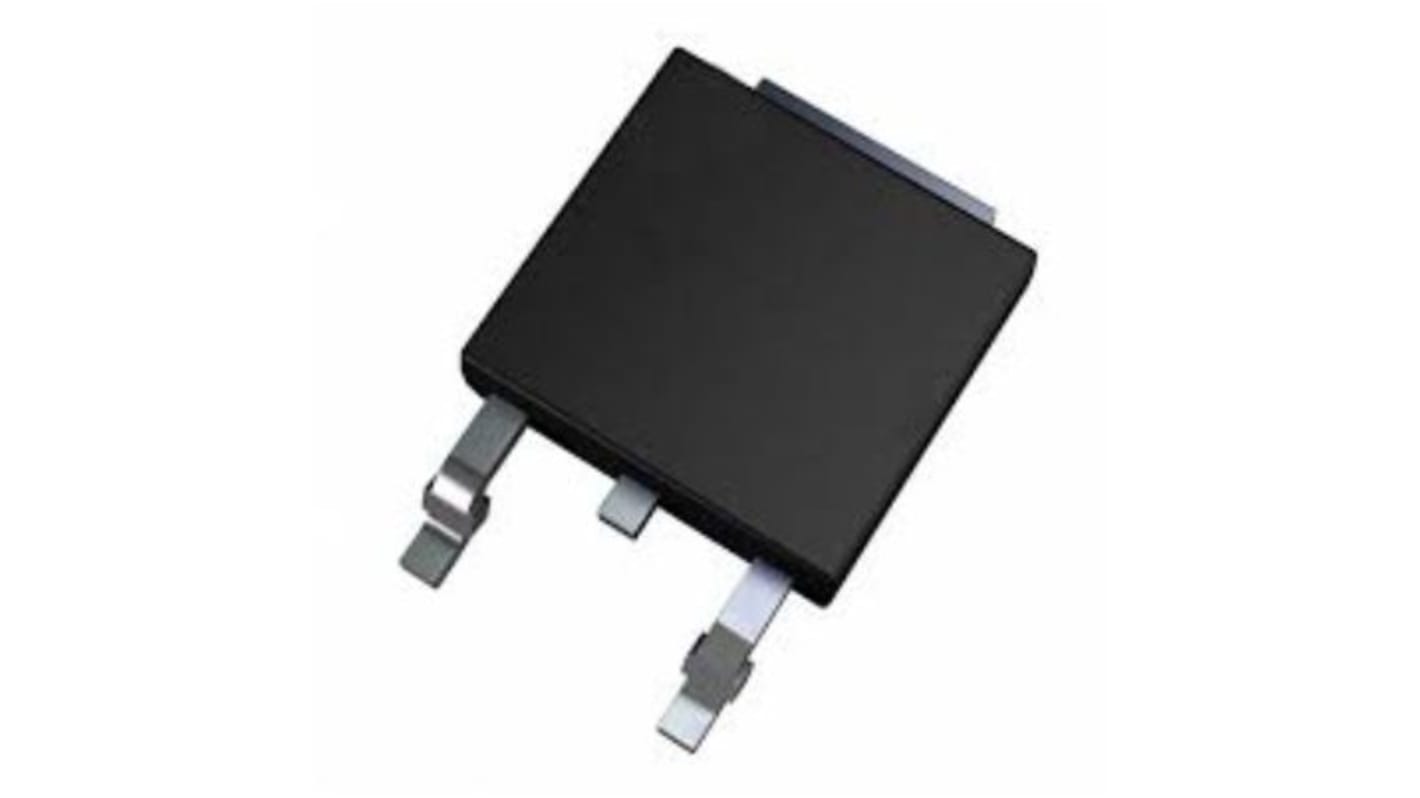

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
PHP482.16
(exc. VAT)
PHP540.02
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Last RS stock
- Final 1,690 unit(s), ready to ship from another location
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 40 | PHP48.216 | PHP482.16 |
| 50 - 90 | PHP46.769 | PHP467.69 |
| 100 - 240 | PHP43.963 | PHP439.63 |
| 250 - 990 | PHP40.007 | PHP400.07 |
| 1000 + | PHP35.206 | PHP352.06 |
*price indicative
- RS Stock No.:
- 228-2948
- Mfr. Part No.:
- SQD40052EL_GE3
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | TO-252 | |
| Series | TrenchFET | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 6mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 62W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Typical Gate Charge Qg @ Vgs | 34.5nC | |
| Forward Voltage Vf | 0.83V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type TO-252 | ||
Series TrenchFET | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 6mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 62W | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Typical Gate Charge Qg @ Vgs 34.5nC | ||
Forward Voltage Vf 0.83V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
The Vishay TrenchFET automotive N-channel is 40 V power MOSFET.
100 % Rg and UIS tested
