Toshiba DTMOSIV Type N-Channel MOSFET, 6.8 A, 650 V Enhancement, 3-Pin TO-252 TK7P65W,RQ(S
- RS Stock No.:
- 133-2801
- Mfr. Part No.:
- TK7P65W,RQ(S
- Manufacturer:
- Toshiba

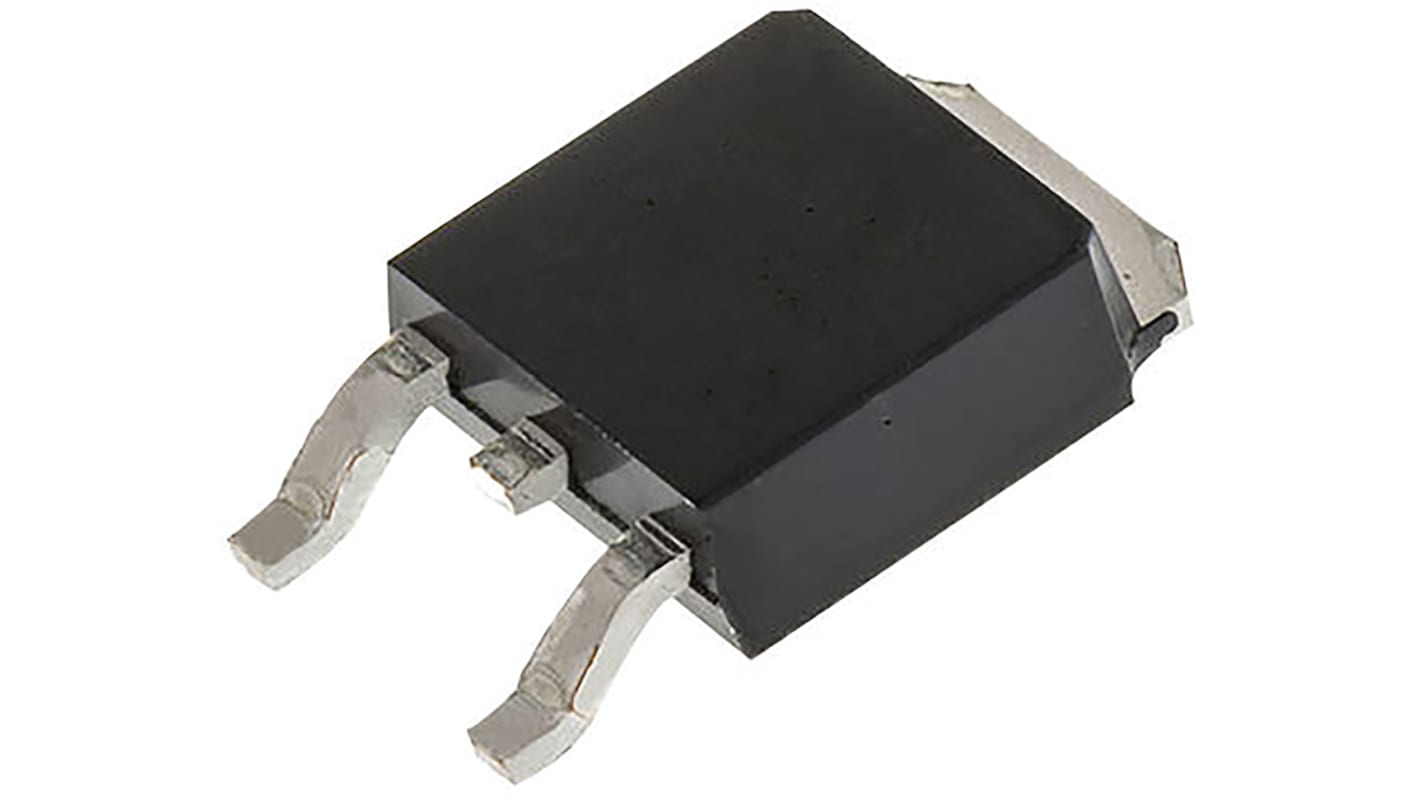

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
PHP724.85
(exc. VAT)
PHP811.83
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 120 unit(s) shipping from April 13, 2026
- Plus 1,340 unit(s) shipping from April 20, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 40 | PHP72.485 | PHP724.85 |
| 50 - 90 | PHP70.311 | PHP703.11 |
| 100 - 490 | PHP68.20 | PHP682.00 |
| 500 - 990 | PHP66.156 | PHP661.56 |
| 1000 + | PHP64.171 | PHP641.71 |
*price indicative
- RS Stock No.:
- 133-2801
- Mfr. Part No.:
- TK7P65W,RQ(S
- Manufacturer:
- Toshiba
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 6.8A | |
| Maximum Drain Source Voltage Vds | 650V | |
| Series | DTMOSIV | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 800mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | -1.7V | |
| Typical Gate Charge Qg @ Vgs | 15nC | |
| Maximum Power Dissipation Pd | 60W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 6.6mm | |
| Height | 2.3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 6.8A | ||
Maximum Drain Source Voltage Vds 650V | ||
Series DTMOSIV | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 800mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf -1.7V | ||
Typical Gate Charge Qg @ Vgs 15nC | ||
Maximum Power Dissipation Pd 60W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 6.6mm | ||
Height 2.3mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
MOSFET N-Channel, TK6 & TK7 Series, Toshiba
MOSFET Transistors, Toshiba
