Infineon OptiMOS-T2 Type N-Channel MOSFET, 100 A, 40 V Enhancement, 3-Pin TO-252 IPD100N04S402ATMA1

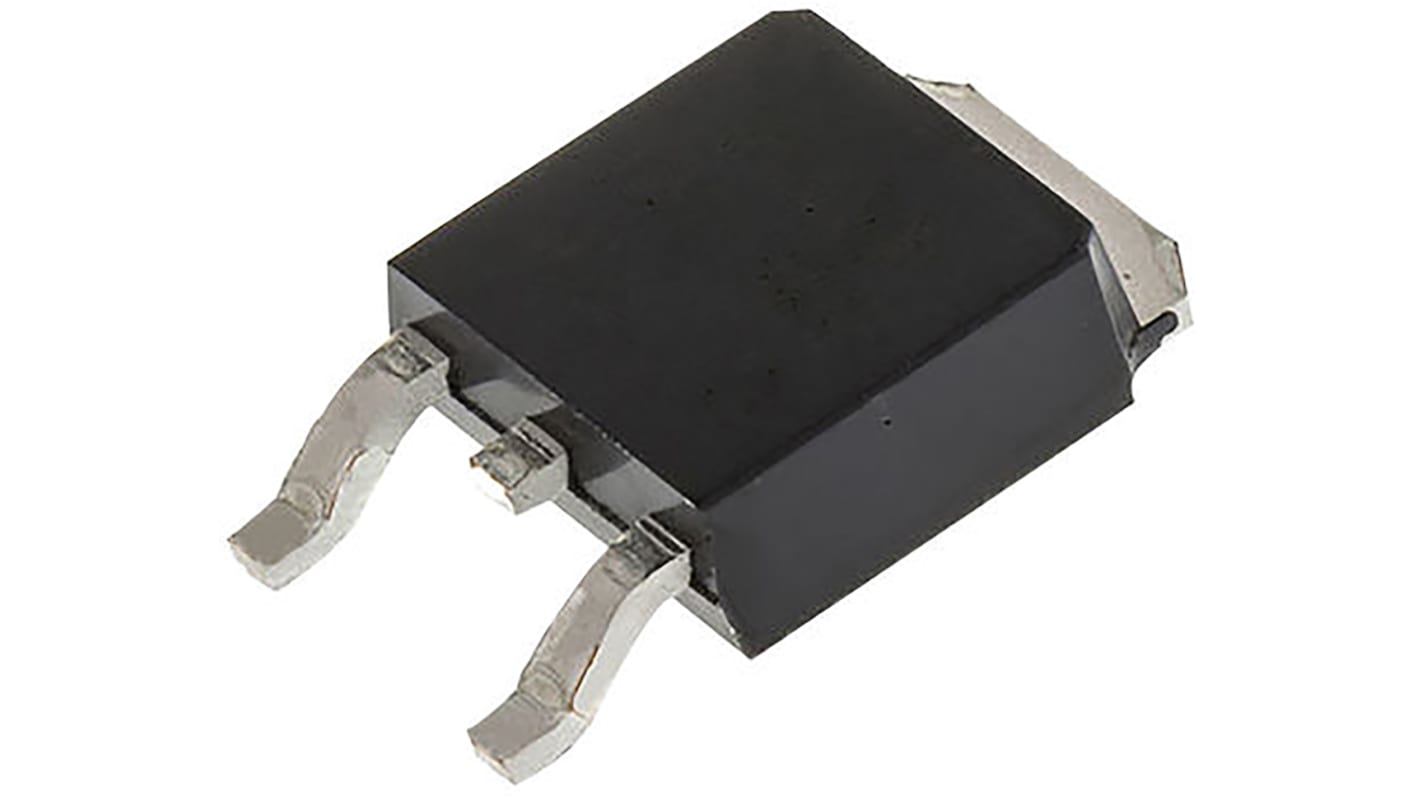

This image is representative of the product range

Bulk discount available
View bulk pricing options

Subtotal (1 pack of 10 units)*

PHP940.10

(exc. VAT)

PHP1,052.90

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from November 09, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per Unit
Per Pack*
10 - 10PHP94.01PHP940.10
20 - 90PHP91.659PHP916.59
100 - 190PHP89.368PHP893.68
200 - 490PHP87.134PHP871.34
500 +PHP84.956PHP849.56

*price indicative

Packaging Options:
RS Stock No.:
110-7111
Mfr. Part No.:
IPD100N04S402ATMA1
Manufacturer:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

100A

Maximum Drain Source Voltage Vds

40V

Package Type

TO-252

Series

OptiMOS-T2

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

2mΩ

Channel Mode

Enhancement

Forward Voltage Vf

1.2V

Maximum Power Dissipation Pd

150W

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

91nC

Maximum Operating Temperature

175°C

Standards/Approvals

No

Length

6.73mm

Height

2.41mm

Automotive Standard

AEC-Q101

RoHS Status: Not Applicable

Infineon OptiMOS-T2 Series MOSFET, 40V Maximum Drain Source Voltage, 100A Maximum Continuous Drain Current - IPD100N04S402ATMA1


This MOSFET is a high-current switching transistor designed for demanding electronic systems requiring robust thermal and electrical performance. It operates across an extended temperature range and is intended for surface-mount assembly, offering low on-resistance and efficient conduction for power conversion and switching tasks in automotive and industrial environments.

Features and Benefits:


• 2mΩ Rds provides minimal conduction losses
• 100A continuous drain current supports high-load applications
• 150W power dissipation enables substantial heat handling
• 91nC gate charge allows predictable switching control
• 1.2V forward voltage reduces conduction drop under load
• 20V gate tolerance assists protection against overdrive

Applications


• Suitable for automotive power stages requiring AEC‑Q101 qualification
• Used for DC-DC converters in high-current systems
• Ideal for motor-drive switches in automotive electronics
• Can be used for battery management and power distribution
• Used with surface-mount assemblies on compact power modules

What package type should designers accommodate for board layout?


The device comes in a TO‑252 package and is intended for surface mounting, so land patterns should match that three-pin configuration and thermal pad requirements.

How does it perform across temperature extremes?


It maintains operation from -55°C up to 175°C, making it suitable for environments with wide thermal excursions and elevated ambient temperatures.

What polarity and channel arrangement does it use?


It is an N-channel enhancement‑mode device, requiring a positive gate-to-source voltage for conduction and offering standard N-channel switching behaviour.

Are there limits for drain-to-source and gate voltages to consider?


The maximum drain-to-source voltage is 40V and the gate-to-source maximum is 20V, so designs must ensure these limits are not exceeded during transients.
