Yamaichi, FMS006 6 Way Side Entry Push-Push SIM SIM Card Connector, Solder
- RS Stock No.:
- 252-5824
- Mfr. Part No.:
- FMS006-2340-0-VE
- Manufacturer:
- Yamaichi

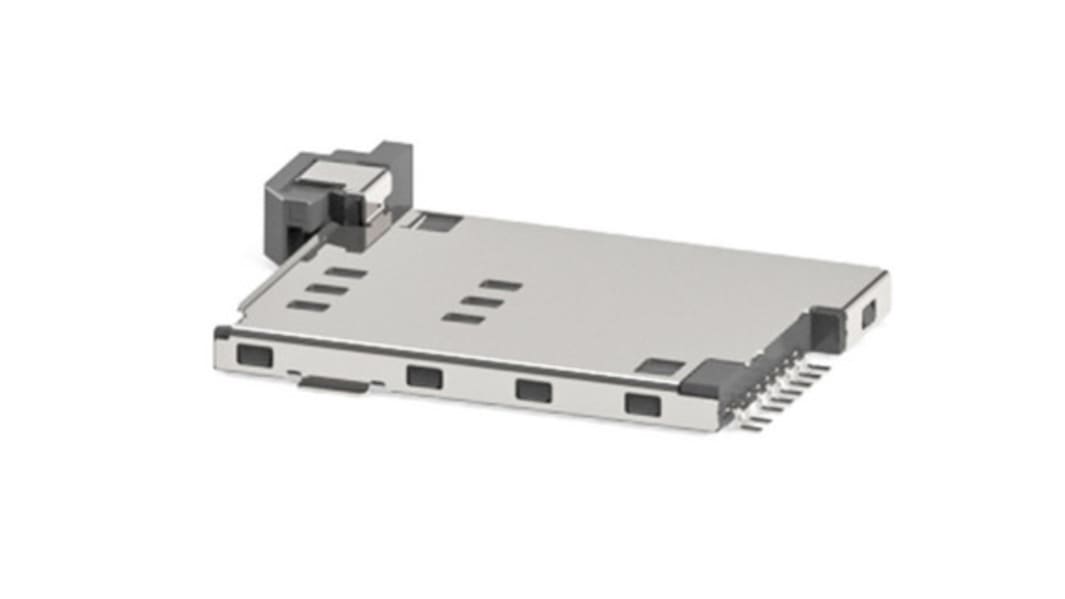

This image is representative of the product range
Subtotal (1 tray of 450 units)*
PHP76,151.70
(exc. VAT)
PHP85,289.85
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- 450 unit(s) shipping from July 07, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tray* |
|---|---|---|
| 450 + | PHP169.226 | PHP76,151.70 |
*price indicative
- RS Stock No.:
- 252-5824
- Mfr. Part No.:
- FMS006-2340-0-VE
- Manufacturer:
- Yamaichi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Yamaichi | |
| Product Type | SIM Card Connector | |
| Card Type | SIM | |
| Gender | Female | |
| Insertion/Removal Method | Push-Push | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Pitch | 1.27mm | |
| Orientation | Side Entry | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold, Nickel | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | FMS006 | |
| Select all | ||
|---|---|---|
Brand Yamaichi | ||
Product Type SIM Card Connector | ||
Card Type SIM | ||
Gender Female | ||
Insertion/Removal Method Push-Push | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Pitch 1.27mm | ||
Orientation Side Entry | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Gold, Nickel | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series FMS006 | ||
The Yamaichi product is a automotive grade SIM card connector that consists of 6 pins. The contacts are made from Ni-Au alloy material and the product also has a current rating of 0.5 A. It is a RoHS compliant.
High impact and vibration resistance
One-action Push-Lock latch prevents SIM card ejection during vehicular operation
