Yamaichi, FPS 9 Way Side Entry Push-Push SD SD Card Connector, Push-Push

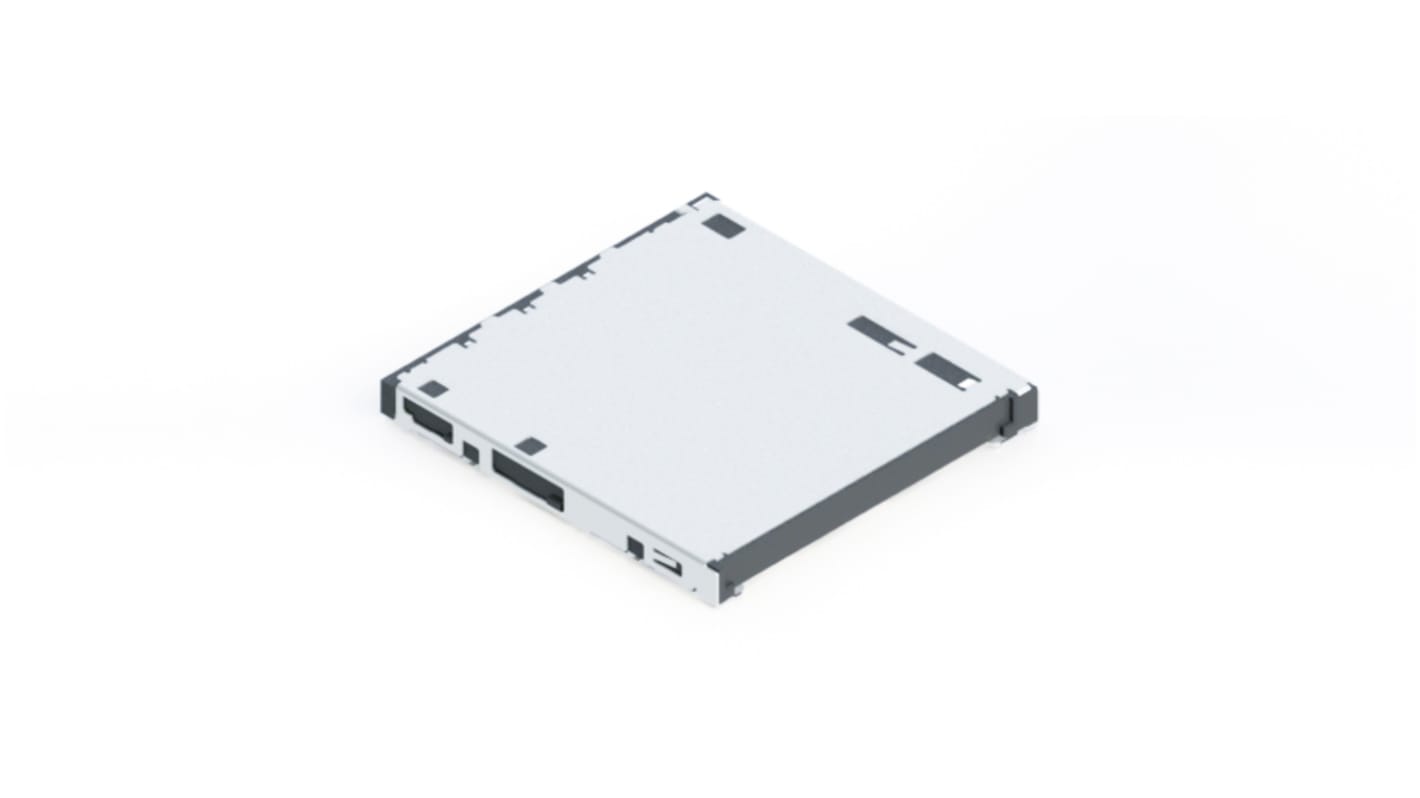

This image is representative of the product range

View all Memory Card Connectors
Bulk discount available

Subtotal (1 pack of 10 units)*

PHP1,568.38

(exc. VAT)

PHP1,756.59

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 410 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Pack*
10 - 90PHP156.838PHP1,568.38
100 +PHP137.233PHP1,372.33

*price indicative

RS Stock No.:
252-5833
Mfr. Part No.:
FPS009-2903-0-VE
Manufacturer:
Yamaichi
Find similar products by selecting one or more attributes.
Select all

Brand

Yamaichi

Product Type

SD Card Connector

Card Type

SD

Gender

Female

Insertion/Removal Method

Push-Push

Number of Contacts

9

Number of Rows

1

Pitch

1.8mm

Orientation

Side Entry

Mount Type

Board

Contact Material

Copper Alloy

Contact Plating

Nickel, Gold

Termination Type

Push-Push

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Series

FPS

COO (Country of Origin):
PH
This Yamaichi product is a SD card connector with a push and push type and automotive type full shell connection. It also comes with card detection switch and is also SDIO capable. The contact area are made from Ni-Au and the solder tail is of Ni-Sn. The voltage rating is 5 V DC.

Top mount version

With card detection switch

SDIO capable

EMI prevention design

Low height with 2.80mm

RoHS compliant
