Texas Instruments SN751178N 2-Channel Line Transceiver, Differential, Non-Inverting, 16-Pin PDIP

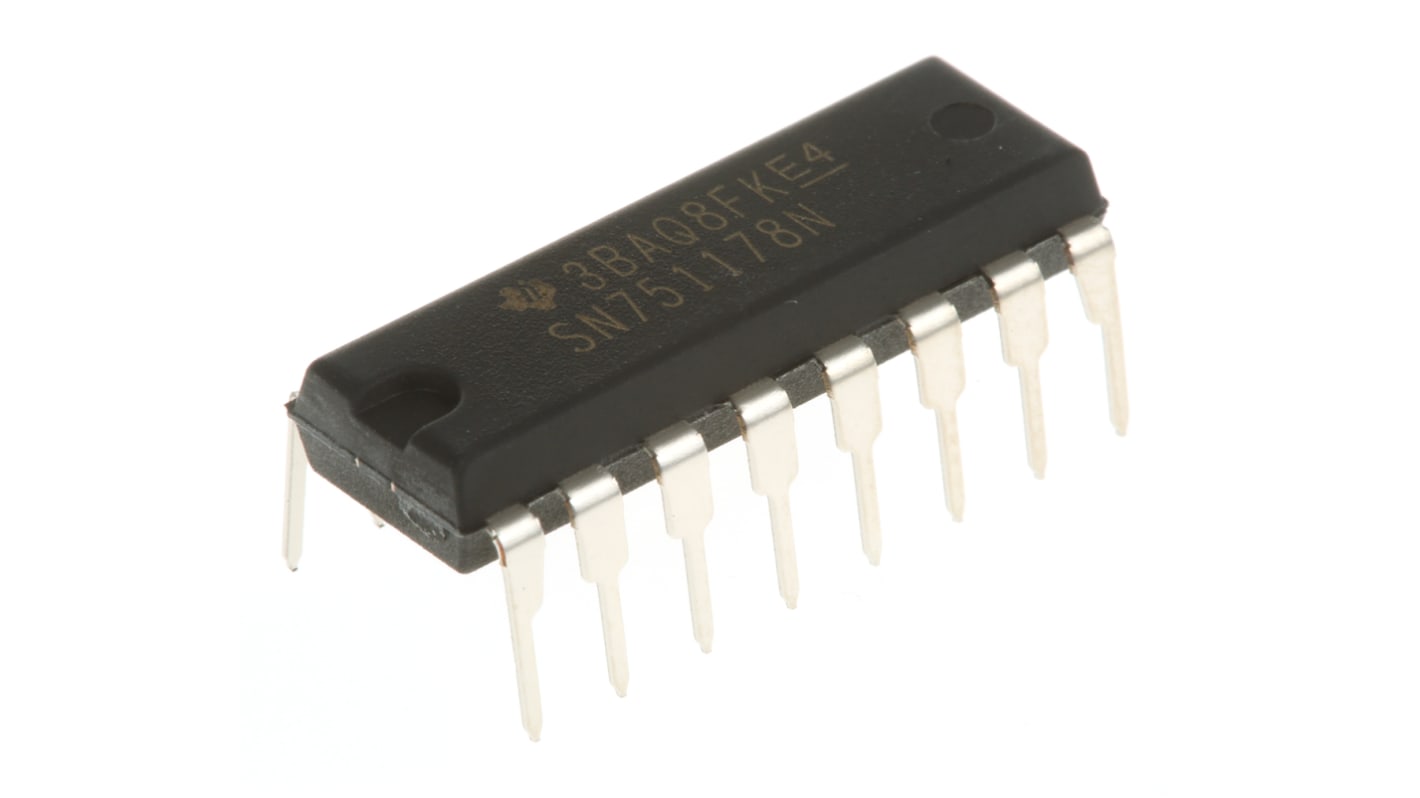

This image is representative of the product range

View all Line Interface ICs
Bulk discount available

Subtotal (1 unit)*

PHP502.51

(exc. VAT)

PHP562.81

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 18 unit(s) shipping from February 09, 2026
  • Plus 67 unit(s) shipping from February 16, 2026
  • Plus 2 unit(s) shipping from February 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9PHP502.51
10 - 49PHP487.44
50 - 99PHP472.81
100 - 249PHP458.60
250 +PHP444.84

*price indicative

Packaging Options:
RS Stock No.:
436-3232
Mfr. Part No.:
SN751178N
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Family

SN75

Product Type

Line Transceiver

Logic Function

Line Transceiver

IC Type

Line Transceiver IC

Number of Channels

2

Input Type

Differential

Output Type

Differential

Polarity

Non-Inverting

Mount Type

Through Hole

Package Type

PDIP

Pin Count

16

Minimum Supply Voltage

4.75V

Maximum High Level Output Current

-60mA

Maximum Supply Voltage

5.25V

Maximum Propagation Delay Time @ CL

35ns

Maximum Low Level Output Current

60mA

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

85°C

Width

6.6 mm

Standards/Approvals

No

Height

5.08mm

Series

SN751178

Length

19.69mm

Supply Current

110mA

Automotive Standard

No

RS-485 Line Drivers and Receivers, High Speed, Texas Instruments


A range of High Speed RS-485 Line Drivers, Receivers and Transceivers from Texas Instruments with data rates of 10 Mbit/s or over.

RS-485 Line Drivers and Receivers
