Texas Instruments 2-Channel Line Transceiver, Differential, Non-Inverting, 16-Pin PDIP

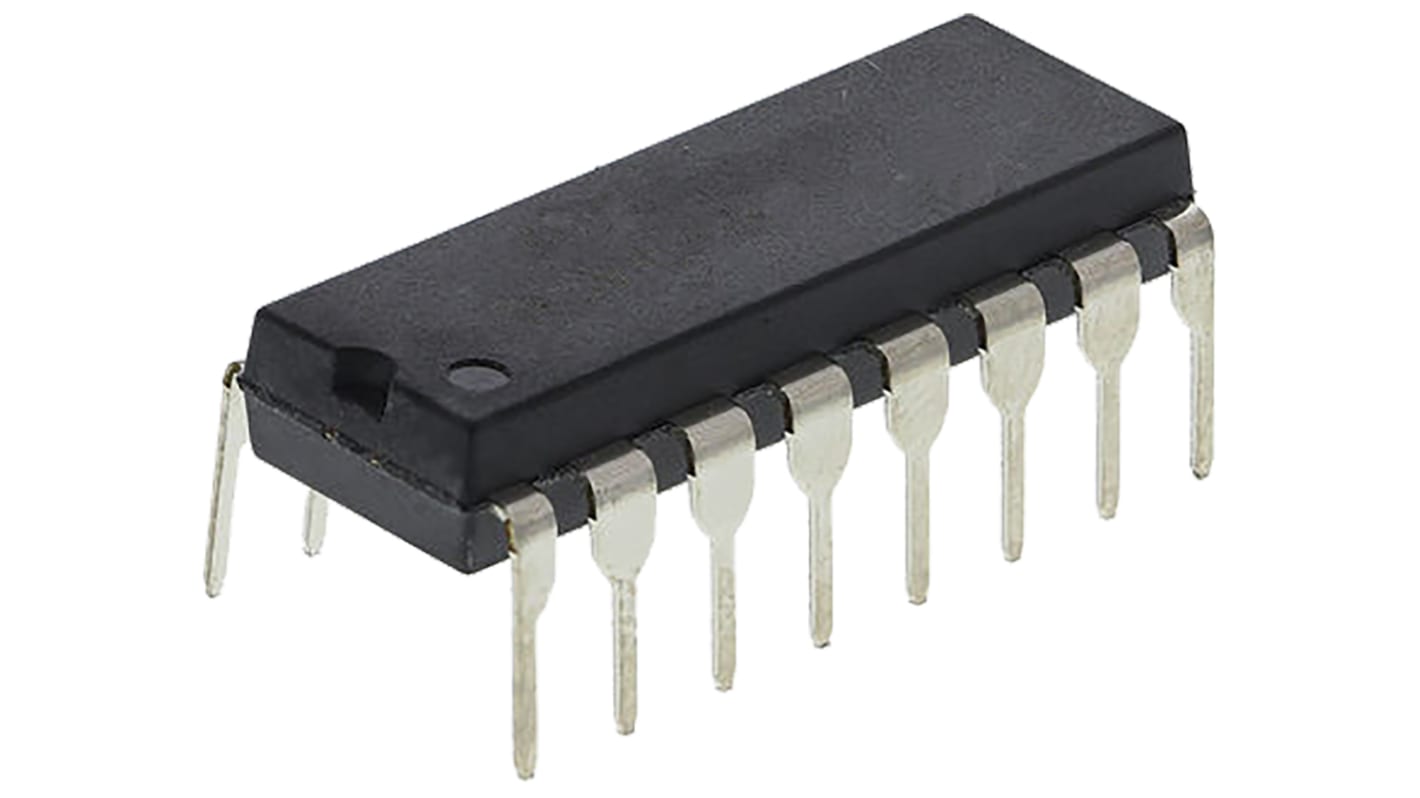

This image is representative of the product range

View all Line Interface ICs

Subtotal (1 tube of 25 units)*

PHP12,181.40

(exc. VAT)

PHP13,643.175

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from April 13, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tube*
25 +PHP487.256PHP12,181.40

*price indicative

RS Stock No.:
121-9094
Mfr. Part No.:
SN751177N
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Product Type

Line Transceiver

Logic Family

SN75

Logic Function

Line Transceiver

IC Type

Dual Channel Transceiver

Number of Channels

2

Input Type

Differential

Output Type

Differential

Polarity

Non-Inverting

Mount Type

Through Hole

Package Type

PDIP

Pin Count

16

Minimum Supply Voltage

4.75V

Maximum High Level Output Current

-60mA

Maximum Supply Voltage

5.25V

Maximum Low Level Output Current

60mA

Minimum Operating Temperature

-20°C

Maximum Propagation Delay Time @ CL

35ns

Maximum Operating Temperature

85°C

Standards/Approvals

No

Height

5.08mm

Series

SN751177

Length

19.69mm

Width

6.6 mm

Automotive Standard

No

Supply Current

110mA

COO (Country of Origin):
DE

RS-422 Line Transceivers, Texas Instruments


RS-422 Line Drivers and Receivers
