Fordata FC LCD LCD Graphic Display, Yellow, Green on, 4 x 20
- RS Stock No.:
- 163-1925
- Mfr. Part No.:
- FC2004B01-RNNYBW-66SE
- Manufacturer:
- Fordata

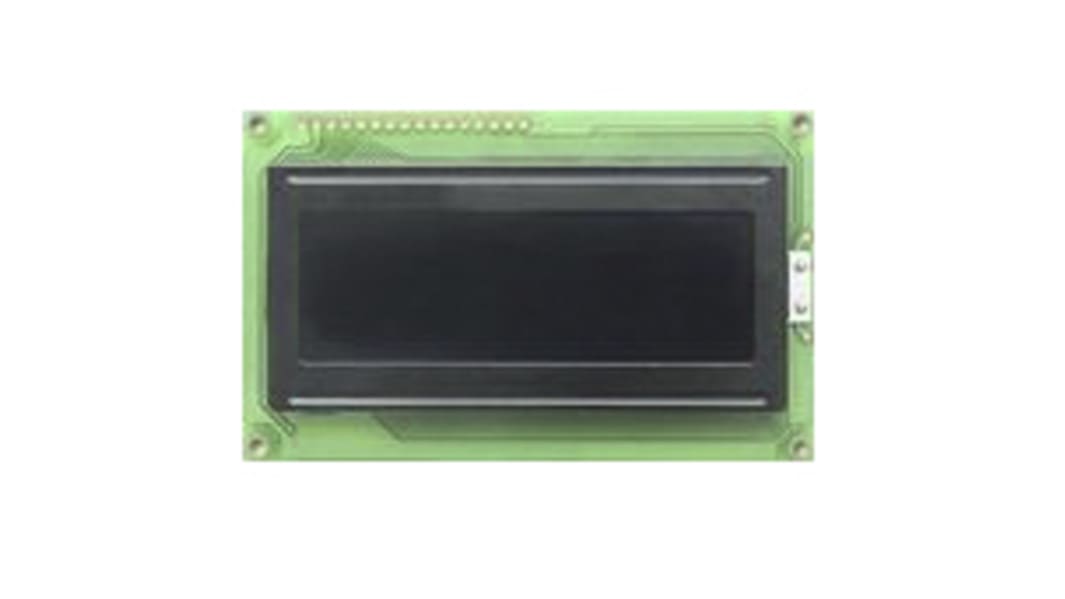

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
PHP1,817.60
(exc. VAT)
PHP2,035.71
(inc. VAT)
FREE delivery for orders over ₱5,000.00
In Stock
- 19 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from October 19, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP1,817.60 |
| 10 - 24 | PHP1,763.07 |
| 25 + | PHP1,710.19 |
*price indicative
- RS Stock No.:
- 163-1925
- Mfr. Part No.:
- FC2004B01-RNNYBW-66SE
- Manufacturer:
- Fordata
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fordata | |
| Display Type | LCD | |
| Product Type | LCD Graphic Display | |
| Character Matrix | 4 x 20 | |
| Viewing Area Dimensions | 76 x 25 mm | |
| Illumination Colour | Yellow, Green | |
| External Depth | 9.5mm | |
| Minimum Operating Temperature | -20°C | |
| Character Height | 5.4mm | |
| External Height | 60mm | |
| Maximum Operating Temperature | 70°C | |
| Character Width | 3mm | |
| External Width | 98mm | |
| Standards/Approvals | RoHS | |
| Series | FC | |
| Select all | ||
|---|---|---|
Brand Fordata | ||
Display Type LCD | ||
Product Type LCD Graphic Display | ||
Character Matrix 4 x 20 | ||
Viewing Area Dimensions 76 x 25 mm | ||
Illumination Colour Yellow, Green | ||
External Depth 9.5mm | ||
Minimum Operating Temperature -20°C | ||
Character Height 5.4mm | ||
External Height 60mm | ||
Maximum Operating Temperature 70°C | ||
Character Width 3mm | ||
External Width 98mm | ||
Standards/Approvals RoHS | ||
Series FC | ||
- COO (Country of Origin):
- CN
5x8 Dots with cursor
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU Interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
