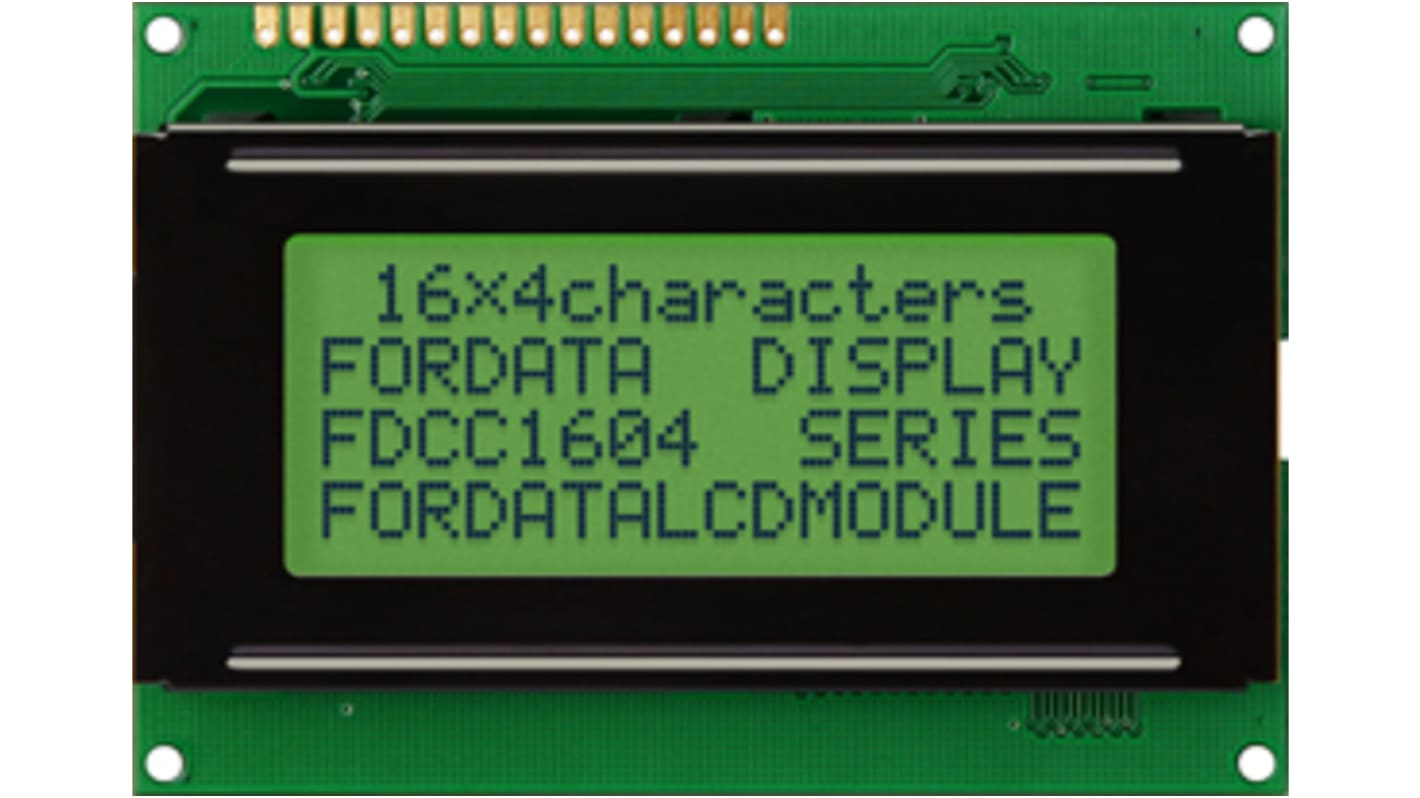

Fordata FC1604A01-RNNYBW-66SE FC Alphanumeric LCD Graphic Display, Green, Yellow on, 4 Rows by 16 Characters, Reflective
- RS Stock No.:
- 163-1915
- Mfr. Part No.:
- FC1604A01-RNNYBW-66SE
- Manufacturer:
- Fordata
Bulk discount available
Subtotal (1 box of 45 units)*
PHP56,544.75
(exc. VAT)
PHP63,330.30
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from March 31, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 45 - 45 | PHP1,256.55 | PHP56,544.75 |
| 90 - 405 | PHP1,218.854 | PHP54,848.43 |
| 450 + | PHP1,096.969 | PHP49,363.61 |
*price indicative
- RS Stock No.:
- 163-1915
- Mfr. Part No.:
- FC1604A01-RNNYBW-66SE
- Manufacturer:
- Fordata
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fordata | |
| Display Type | Alphanumeric | |
| Character Matrix | 4 Rows by 16 Characters | |
| Characters per Row | 16 | |
| Character Rows | 4 | |
| Character Width | 3mm | |
| Character Height | 5.4mm | |
| Viewing Area Width | 61.8mm | |
| Viewing Area Dimensions | 62 x 25mm | |
| Viewing Area Height | 25.2mm | |
| External Depth | 9.5mm | |
| Illumination Colour | Green, Yellow | |
| External Height | 60mm | |
| External Dimensions | 87 x 9.5 x 60mm | |
| External Width | 87mm | |
| Controller Type | SPLC780D | |
| Display Mode | Reflective | |
| Display Matrix Technology | STN | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 5.5V | |
| Maximum Operating Temperature | +70°C | |
| Series | FC | |
| Driver Mounting | COB | |
| Operating Temperature Range | -20 → +70°C | |
| Current Rating | 5mA | |
| Select all | ||
|---|---|---|
Brand Fordata | ||
Display Type Alphanumeric | ||
Character Matrix 4 Rows by 16 Characters | ||
Characters per Row 16 | ||
Character Rows 4 | ||
Character Width 3mm | ||
Character Height 5.4mm | ||
Viewing Area Width 61.8mm | ||
Viewing Area Dimensions 62 x 25mm | ||
Viewing Area Height 25.2mm | ||
External Depth 9.5mm | ||
Illumination Colour Green, Yellow | ||
External Height 60mm | ||
External Dimensions 87 x 9.5 x 60mm | ||
External Width 87mm | ||
Controller Type SPLC780D | ||
Display Mode Reflective | ||
Display Matrix Technology STN | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating 5.5V | ||
Maximum Operating Temperature +70°C | ||
Series FC | ||
Driver Mounting COB | ||
Operating Temperature Range -20 → +70°C | ||
Current Rating 5mA | ||
- COO (Country of Origin):
- CN
5x8 Dots with cursor
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
Built-in controller (SPLC780D or Equivalent)
+5.0V power supply (Also available for +3.0V)
1/16 duty cycle
4-bit or 8-bit MPU interface
BKL to be driven by PIN1,PIN2,or PIN15,PIN16,or A,K
