Schneider Electric 4-Axis Joystick Switch Lever, Spring Return, IP66 600V
- RS Stock No.:
- 609-9876
- Distrelec Article No.:
- 303-02-583
- Mfr. Part No.:
- XD4PA24
- Manufacturer:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
PHP10,077.01
(exc. VAT)
PHP11,286.25
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 99 unit(s) shipping from January 05, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | PHP10,077.01 |
| 5 + | PHP9,774.71 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 609-9876
- Distrelec Article No.:
- 303-02-583
- Mfr. Part No.:
- XD4PA24
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Axes | 4 | |
| Series | Harmony XD4 | |
| Switch Technology | Spring Return | |
| IP Rating | IP66 | |
| Handle Type | Lever | |
| Contact Voltage Rating | 600V | |
| Contact Current Rating | 220 mA @ 600 V ac | |
| Contact Configuration | NO | |
| Contact Material | Silver Nickel | |
| Terminal Type | Screw | |
| Mechanical Life | 1000000Cycles | |
| Depth Behind Panel | 47mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Operating Temperature Range | -25 → +70°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Axes 4 | ||
Series Harmony XD4 | ||
Switch Technology Spring Return | ||
IP Rating IP66 | ||
Handle Type Lever | ||
Contact Voltage Rating 600V | ||
Contact Current Rating 220 mA @ 600 V ac | ||
Contact Configuration NO | ||
Contact Material Silver Nickel | ||
Terminal Type Screw | ||
Mechanical Life 1000000Cycles | ||
Depth Behind Panel 47mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Operating Temperature Range -25 → +70°C | ||
- COO (Country of Origin):
- FR

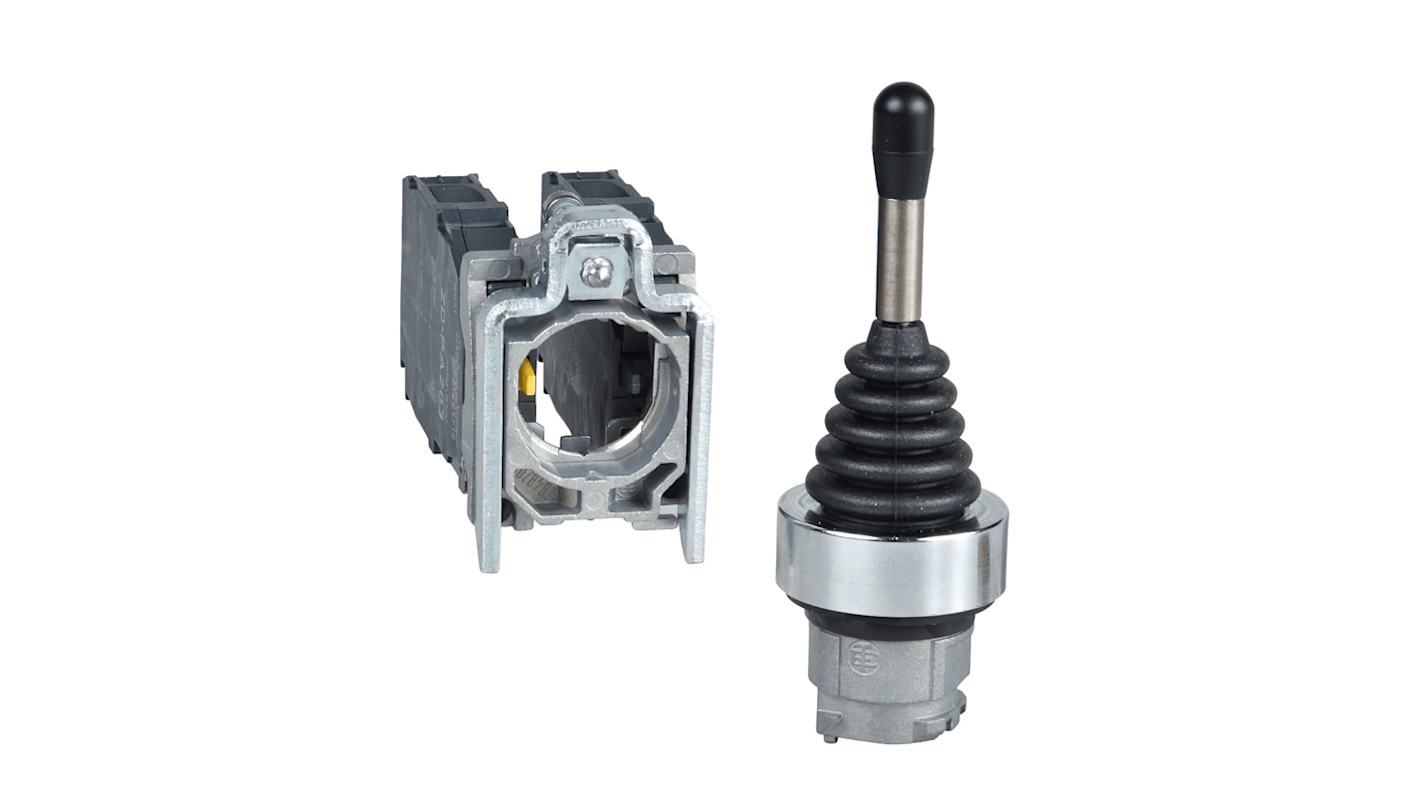

Schneider Electric Harmony XD4 Series Joystick Switch, 4 Axes Number, IP66 - XD4PA24
This joystick switch is a four-axis controller designed for precision and versatility in various industrial applications. Built with a durable spring return mechanism, it offers a reliable user experience. The device features a mounting diameter of 22mm and operates effectively across a temperature range of -25°C to +70°C. With an IP66 rating, it ensures protection against dust and high-pressure water jets, making it suitable for demanding environments.
Features & Benefits
• Provides precise control across four directions for versatile operation
• Spring return mechanism ensures quick return to the neutral position
• Rated IP66 for effective protection against dust and moisture
• Designed for high-voltage applications with a 600V rating
• Durable construction guarantees up to 1,000,000 mechanical cycles
• Compact design allows for easy integration into various panels
• Spring return mechanism ensures quick return to the neutral position
• Rated IP66 for effective protection against dust and moisture
• Designed for high-voltage applications with a 600V rating
• Durable construction guarantees up to 1,000,000 mechanical cycles
• Compact design allows for easy integration into various panels
Applications
• Used in industrial machinery for precise control functions
• Suitable for automation control panels in manufacturing settings
• Ideal for electrical control systems needing reliable user input
• Applicable in construction machinery for directional controls
• Suitable for automation control panels in manufacturing settings
• Ideal for electrical control systems needing reliable user input
• Applicable in construction machinery for directional controls
What makes this joystick switch suitable for high-voltage applications?
The switch has a contact voltage rating of 600V and a robust design capable of handling high electrical loads, ensuring safe and efficient operation in demanding conditions.
How does the mechanical durability of the joystick switch enhance its usability?
With a mechanical life of 1,000,000 cycles, it provides longevity and reliability, reducing maintenance costs and downtime in operational environments.
What is the significance of the IP66 rating for this device?
The IP66 rating signifies it is dust-tight and resistant to powerful water jets, making it an appropriate choice for outdoor or industrial environments where exposure to harsh elements is expected.
Can this joystick switch be mounted in tight spaces?
Yes, with a mounting diameter of 22mm, it is designed to fit into compact areas while maintaining usability and functionality.
How does the spring return mechanism benefit the user?
The spring return feature ensures that the joystick returns to the neutral position automatically, allowing for easier control and operation without the need for constant manual adjustment.
