Schneider Electric 4-Axis Joystick Lever Spring Return, IP65
- RS Stock No.:
- 288-1443
- Mfr. Part No.:
- XD2HL1111
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
PHP48,001.24
(exc. VAT)
PHP53,761.39
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- Plus 1 unit(s) shipping from June 04, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP48,001.24 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 288-1443
- Mfr. Part No.:
- XD2HL1111
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Axes | 4 | |
| Product Type | Joystick | |
| Series | Harmony | |
| Switch Technology | Spring Return | |
| IP Rating | IP65 | |
| Handle Type | Lever | |
| Mechanical Life | 1000000Cycles | |
| Standards/Approvals | IEC 60947-5-1, IEC 61140, IEC 60529, IEC 60068-2-27 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Axes 4 | ||
Product Type Joystick | ||
Series Harmony | ||
Switch Technology Spring Return | ||
IP Rating IP65 | ||
Handle Type Lever | ||
Mechanical Life 1000000Cycles | ||
Standards/Approvals IEC 60947-5-1, IEC 61140, IEC 60529, IEC 60068-2-27 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- FR

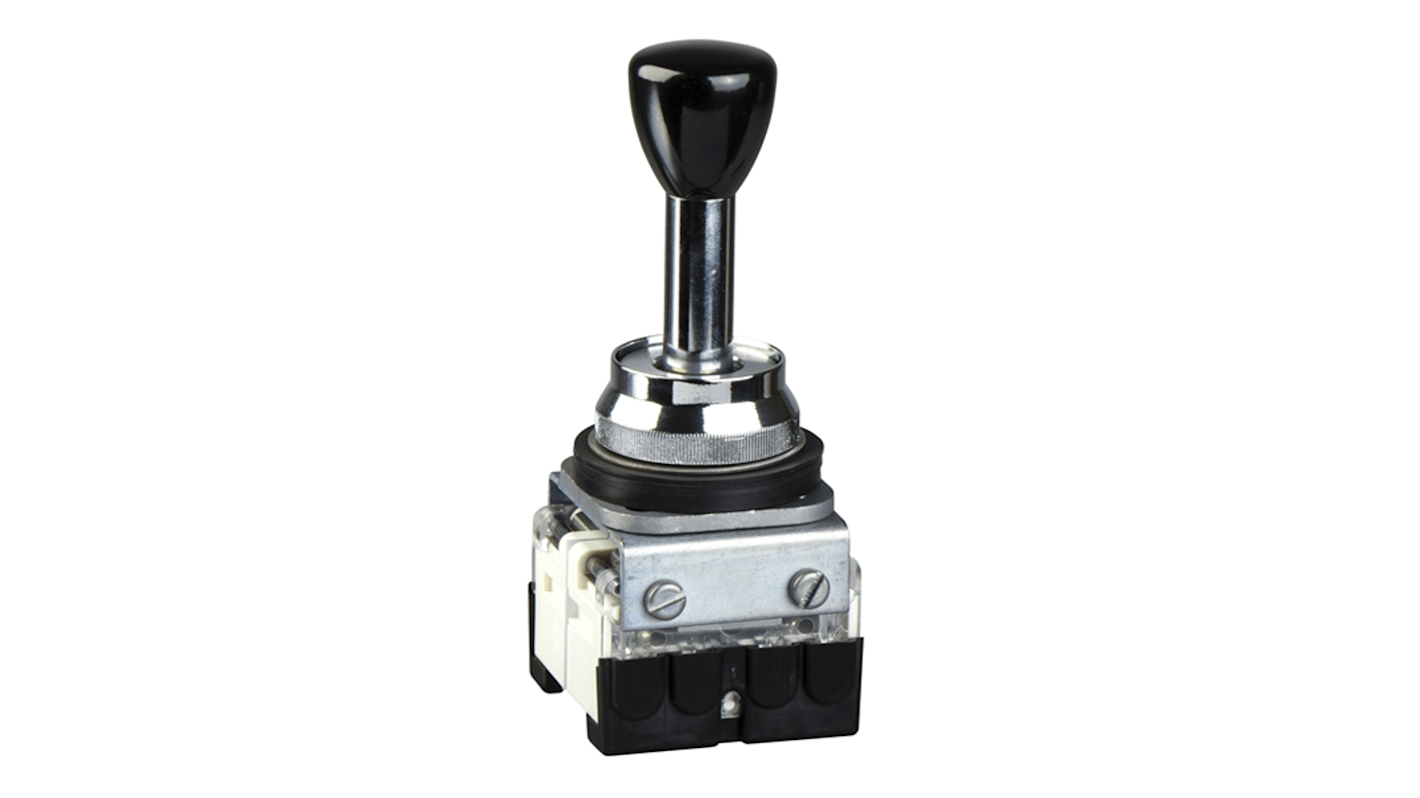

The Schneider Electric Joystick controller is a complete device with a 30mm mounting diameter and 4 directions with 2 notches per direction. It features a spring return to the zero position, making it ideal for precise control applications.
Complete joystick controller for versatile control options
Chromium plated metal bezel for durability
2 NO contacts per direction for snap action
Short circuit protection up to 10 A for safety
Captive screw clamp terminals for easy installation
Mechanical durability of 1000000 cycles for long lasting performance
IP65 degree of protection for use in various environments
