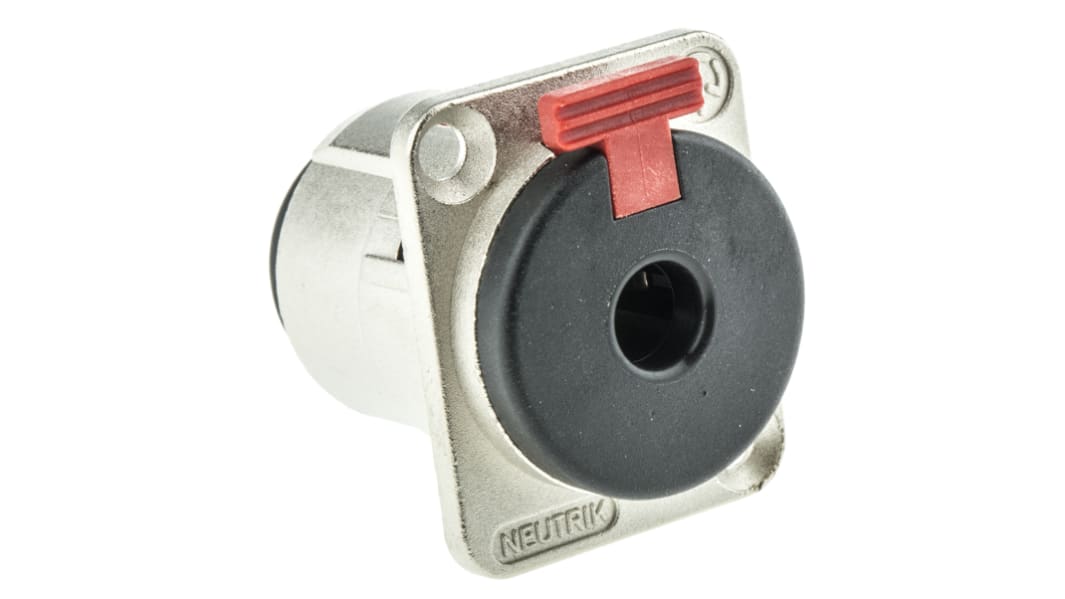

Neutrik Jack Connector 6.35 mm Panel Mount Female 3 Stereo, 10A Solder
- RS Stock No.:
- 448-216
- Distrelec Article No.:
- 142-20-284
- Mfr. Part No.:
- NJ3FP6C
- Manufacturer:
- Neutrik
Bulk discount available
Subtotal (1 unit)*
PHP514.01
(exc. VAT)
PHP575.69
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 56 unit(s) ready to ship from another location
- Plus 707 unit(s) shipping from March 09, 2026
- Plus 400 unit(s) shipping from April 02, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP514.01 |
| 25 - 124 | PHP503.74 |
| 125 + | PHP453.37 |
*price indicative
- RS Stock No.:
- 448-216
- Distrelec Article No.:
- 142-20-284
- Mfr. Part No.:
- NJ3FP6C
- Manufacturer:
- Neutrik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Neutrik | |
| Product Type | Jack Connector | |
| Size | 6.35 mm | |
| Mount Type | Panel Mount | |
| Current | 10A | |
| Number of Ways | 3 | |
| Termination Type | Solder | |
| Sub Type | Stereo | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Contact Plating | Silver | |
| Housing Material | Zinc | |
| Voltage | 50 V | |
| Contact Gender | Female | |
| Series | NJ3 | |
| Contact Material | Bronze | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Neutrik | ||
Product Type Jack Connector | ||
Size 6.35 mm | ||
Mount Type Panel Mount | ||
Current 10A | ||
Number of Ways 3 | ||
Termination Type Solder | ||
Sub Type Stereo | ||
Orientation Straight | ||
Connector Gender Female | ||
Contact Plating Silver | ||
Housing Material Zinc | ||
Voltage 50 V | ||
Contact Gender Female | ||
Series NJ3 | ||
Contact Material Bronze | ||
Standards/Approvals No | ||
Neutrik Stereo Locking Jack
The Neutrik 6.35mm 3-pole stereo locking jack with solder terminations has a current rating of 10A. It is designed to mount in the same hole cut-out as our 'D' and NL4MP series of panel mount receptacles.
Note:
The ring and sleeve must be connected to configure the sockets for use with two-pole plugs. ’B’ gauge (BPO type 316, stock nos. 448-187 and 448-193) are also suitable for use with these sockets but will not latch
6.35mm Neutrik
0.25in professional jack connectors for use where applications demand a rugged connector, built to exacting standards
Features and Benefits
Nickel shell with silver contacts
Mates with all the mono or stereo plugs
Securely push release mechanism locking chassis jack
Operating temperature ranging between -20°C and 65°C
Certifications
IEC 68- 2-20
IEC 60603-11
EIA RS 453
