Neutrik Jack Connector 6.35 mm Locking Jack Female 3 Stereo, 3A Press Fit
- RS Stock No.:
- 448-200
- Distrelec Article No.:
- 142-20-314
- Mfr. Part No.:
- NJ3FC6
- Manufacturer:
- Neutrik
Bulk discount available
Subtotal (1 unit)*
PHP582.24
(exc. VAT)
PHP652.11
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 22 unit(s) ready to ship from another location
- Plus 200 unit(s) shipping from April 30, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | PHP582.24 |
| 25 - 124 | PHP564.77 |
| 125 + | PHP508.30 |
*price indicative
- RS Stock No.:
- 448-200
- Distrelec Article No.:
- 142-20-314
- Mfr. Part No.:
- NJ3FC6
- Manufacturer:
- Neutrik
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Neutrik | |
| Product Type | Jack Connector | |
| Size | 6.35 mm | |
| Mount Type | Locking Jack | |
| Current | 3A | |
| Termination Type | Press Fit | |
| Sub Type | Stereo | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Contact Plating | Silver | |
| Housing Material | Zinc Aluminium Copper Alloy | |
| Colour | Natural | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Brass | |
| Series | RSNJ3 | |
| Select all | ||
|---|---|---|
Brand Neutrik | ||
Product Type Jack Connector | ||
Size 6.35 mm | ||
Mount Type Locking Jack | ||
Current 3A | ||
Termination Type Press Fit | ||
Sub Type Stereo | ||
Connector Gender Female | ||
Orientation Straight | ||
Contact Plating Silver | ||
Housing Material Zinc Aluminium Copper Alloy | ||
Colour Natural | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Brass | ||
Series RSNJ3 | ||

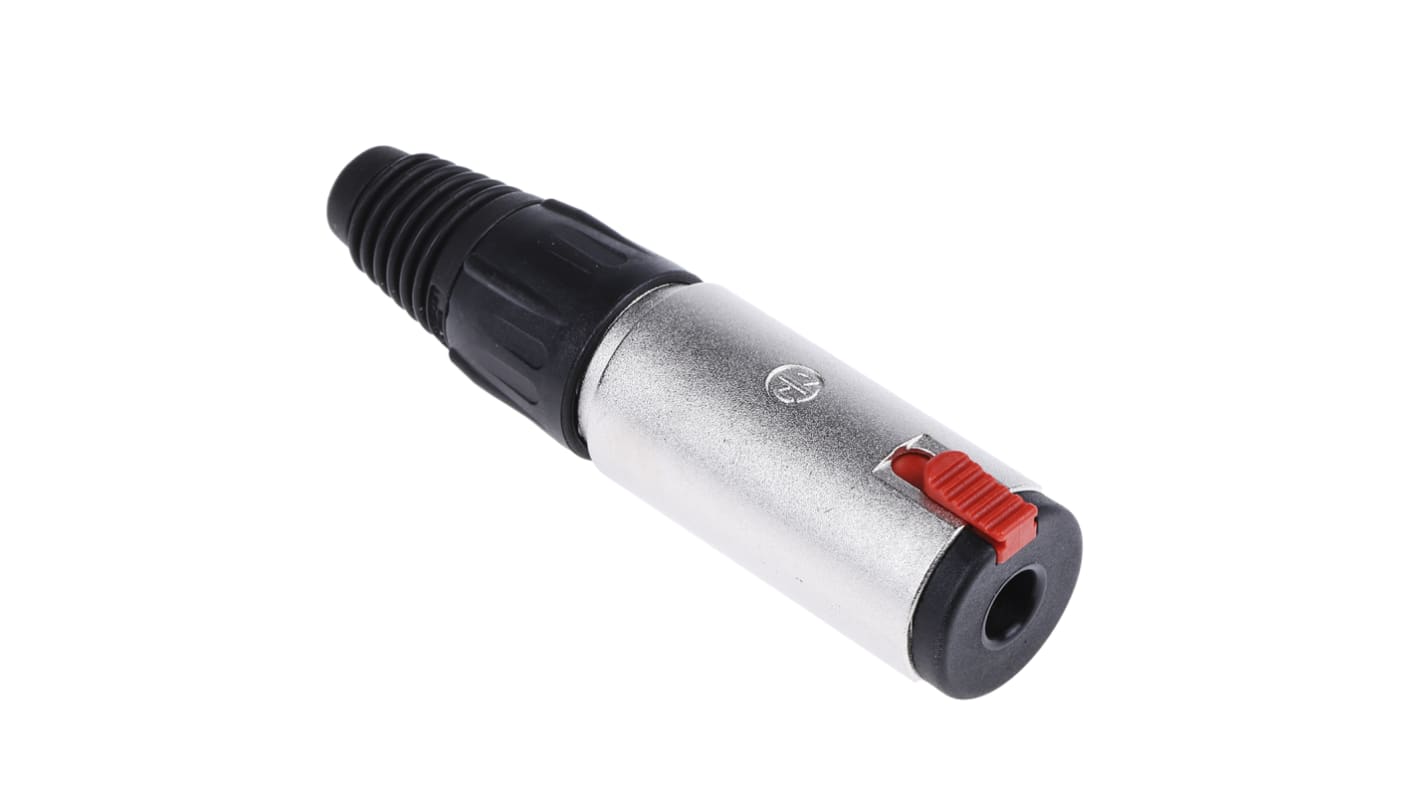

Neutrik Stereo Locking Jack
The Neutrik 6.35mm 3-pole female stereo locking jack has a current rating of 10A. It provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing the red release tab. The housing is made of zinc aluminium copper alloy material with silver contacts.
Note:
The ring and sleeve must be connected to configure the sockets for use with two-pole plugs. ’B’ gauge (BPO type 316, stock nos. 448-187 and 448-193) are also suitable for use with these sockets but will not latch.
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.
Features and Benefits
Securely locking cable jack
Mates with all the mono or stereo plugs
Extremely robust and reliable
Excellent Neutrik cable retention
For cable outer diameter up to 8mm
Certifications
IEC 60603-11
EIA RS-453 compliant
