Vishay TSOP14438, 38 kHz IR Receiver ±45°, 30 m Range 2 V 6 V, Lead 6.95 mm 6 mm 3-Pin 5.6 mm

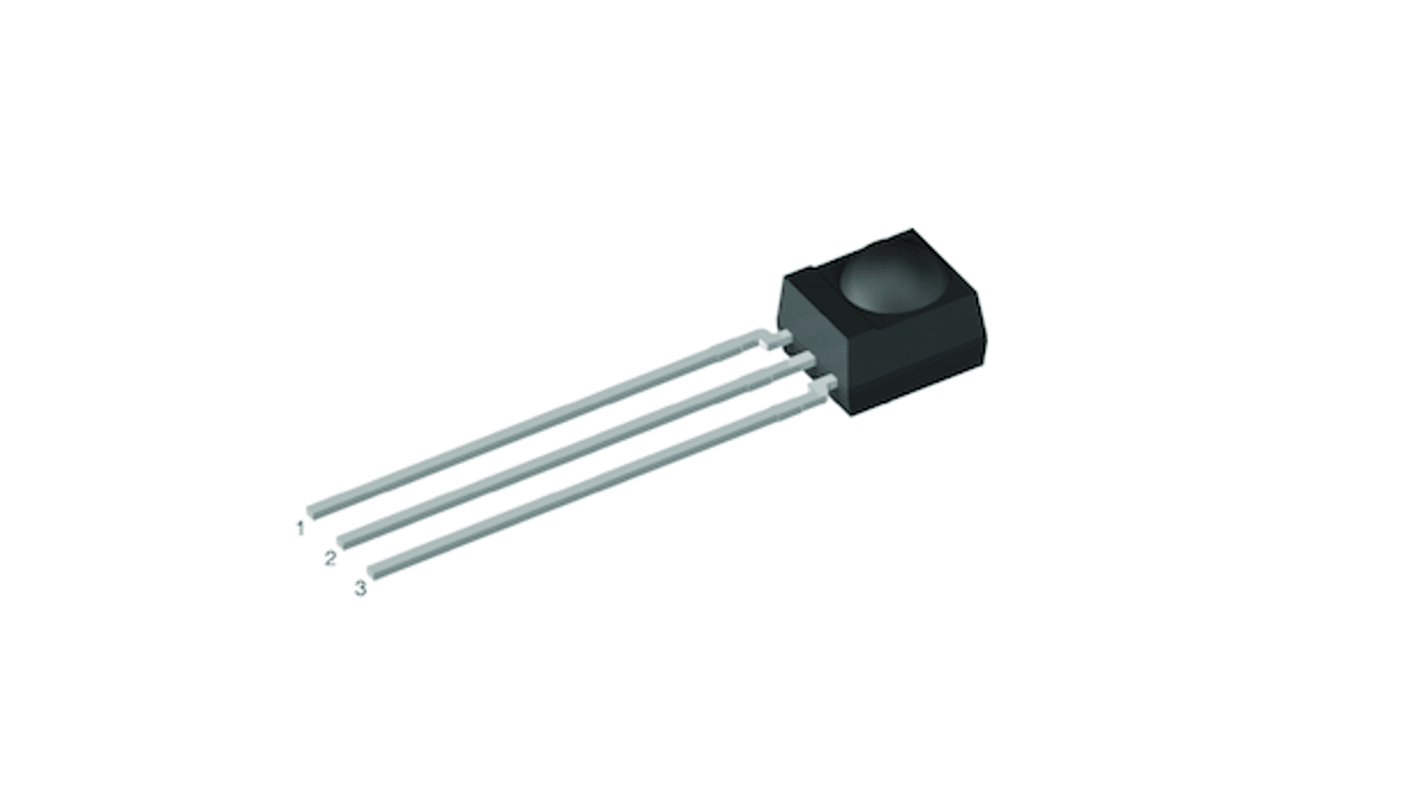

This image is representative of the product range

View all IR Receivers
Bulk discount available

Subtotal (1 unit)*

PHP44.90

(exc. VAT)

PHP50.29

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,064 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9PHP44.90
10 - 24PHP43.54
25 - 49PHP42.24
50 - 99PHP40.97
100 +PHP39.75

*price indicative

Packaging Options:
RS Stock No.:
257-6894
Mfr. Part No.:
TSOP14438
Manufacturer:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

IR Receiver

Carrier Frequency

38kHz

Maximum Transmission Distance

30m

Angle of Half Transmission Distance

±45°

Packaging

Tube

Output Current

5mA

Number of Pins

3

Mount Type

Lead

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

85°C

Width

5.6 mm

Length

6mm

Height

6.95mm

Standards/Approvals

RoHS, GADSL, REACH, IEC 62474, Halogen Free

Maximum Supply Voltage

6V

Minimum Supply Voltage

2V

Automotive Standard

No

Supply Current

3mA

The Vishay IR receiver module is optimized for long burst remote control systems in different environments. The customer can chose between different IC settings (AGC variants), to find the optimum solution for his application. The higher the AGC, the better noise is suppressed, but the lower the code compatibility. The devices contain a PIN diode and a preamplifier assembled on a lead frame. The epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. These components have not been qualified to automotive specifications.

Individual IC settings to reach maximum performance

Immunity against noise (lamps, LCD TV, Wi-Fi)

Low supply current

Photo detector and preamplifier in one package

Supply voltage: 2.0 V to 5.5 V
