Vishay, 36 kHz IR Receiver ±45°, 45 m Range -0.3 V 6 V, Surface 6.95 mm Mold 6 mm 3-Pin 5.6 mm
- RS Stock No.:
- 257-6899
- Mfr. Part No.:
- TSOP4136
- Manufacturer:
- Vishay

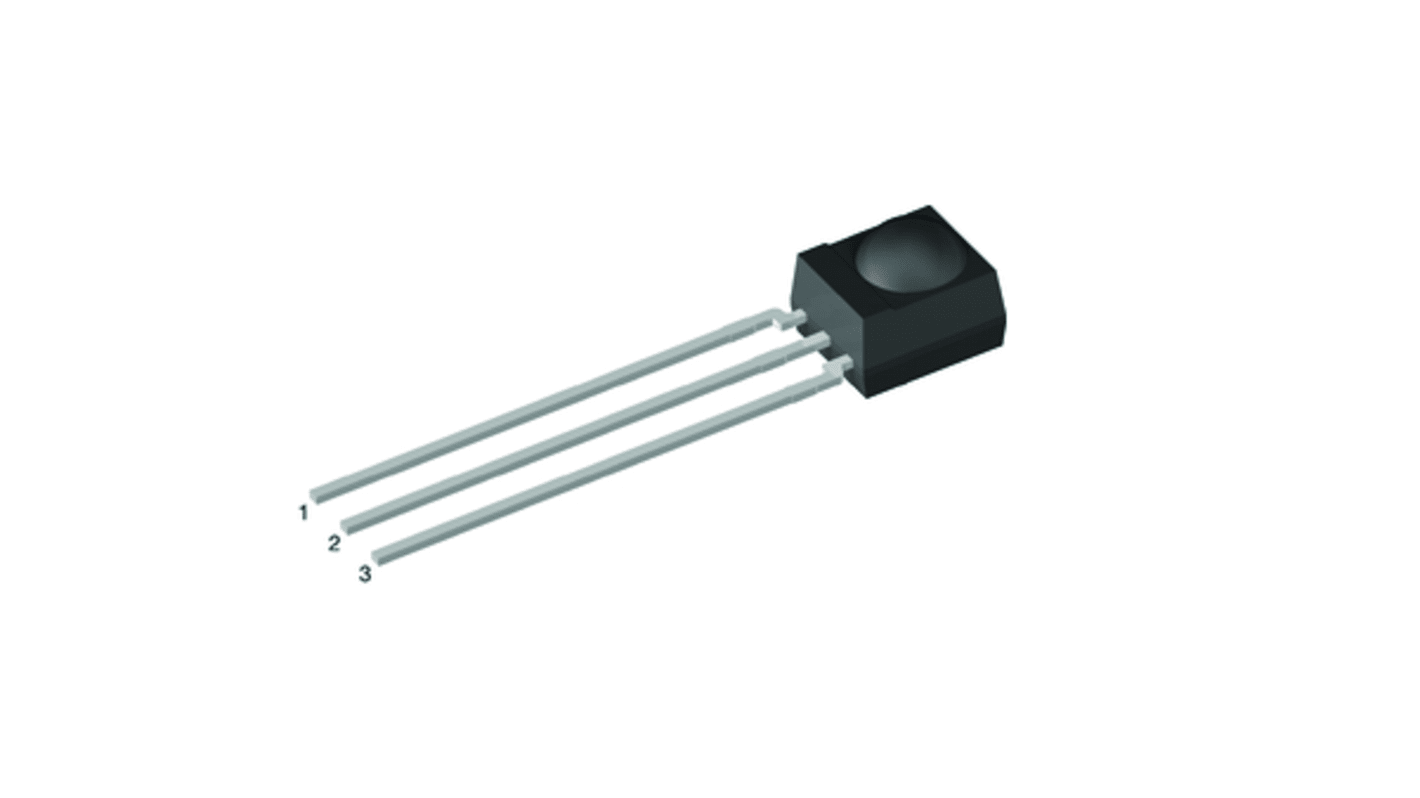

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 90 units)*
PHP3,172.05
(exc. VAT)
PHP3,552.66
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 1,800 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 90 - 90 | PHP35.245 | PHP3,172.05 |
| 180 - 450 | PHP34.188 | PHP3,076.92 |
| 540 - 990 | PHP33.162 | PHP2,984.58 |
| 1080 + | PHP32.167 | PHP2,895.03 |
*price indicative
- RS Stock No.:
- 257-6899
- Mfr. Part No.:
- TSOP4136
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IR Receiver | |
| Carrier Frequency | 36kHz | |
| Maximum Transmission Distance | 45m | |
| Angle of Half Transmission Distance | ±45° | |
| Output Current | 5mA | |
| Number of Pins | 3 | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -25°C | |
| Package Type | Mold | |
| Maximum Operating Temperature | 85°C | |
| Length | 6mm | |
| Maximum Supply Voltage | 6V | |
| Width | 5.6 mm | |
| Height | 6.95mm | |
| Standards/Approvals | Halogen Free, GADSL, IEC 62474, RoHS, REACH | |
| Minimum Supply Voltage | -0.3V | |
| Supply Current | 5mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IR Receiver | ||
Carrier Frequency 36kHz | ||
Maximum Transmission Distance 45m | ||
Angle of Half Transmission Distance ±45° | ||
Output Current 5mA | ||
Number of Pins 3 | ||
Mount Type Surface | ||
Minimum Operating Temperature -25°C | ||
Package Type Mold | ||
Maximum Operating Temperature 85°C | ||
Length 6mm | ||
Maximum Supply Voltage 6V | ||
Width 5.6 mm | ||
Height 6.95mm | ||
Standards/Approvals Halogen Free, GADSL, IEC 62474, RoHS, REACH | ||
Minimum Supply Voltage -0.3V | ||
Supply Current 5mA | ||
Automotive Standard No | ||
The Vishay IR receiver module is optimized for short burst remote control systems in different environments. The customer can chose between different IC settings (AGC variants), to find the optimum solution for his application. The higher the AGC, the better noise is suppressed, but the lower the code compatibility. The devices contain a PIN diode and a preamplifier assembled on a lead frame. The epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. These components have not been qualified to automotive specifications.
Individual IC settings to reach maximum performance
Immunity against noise (lamps, LCD TV, Wi-Fi)
Low supply current
Photo detector and preamplifier in one package
Supply voltage: 2.0 V to 5.5 V
