Vishay TSMP95100XVTR, 38 kHz IR Receiver ±50°, 10 m Range -0.3 V 6 V
- RS Stock No.:
- 228-054
- Mfr. Part No.:
- TSMP95100XVTR
- Manufacturer:
- Vishay

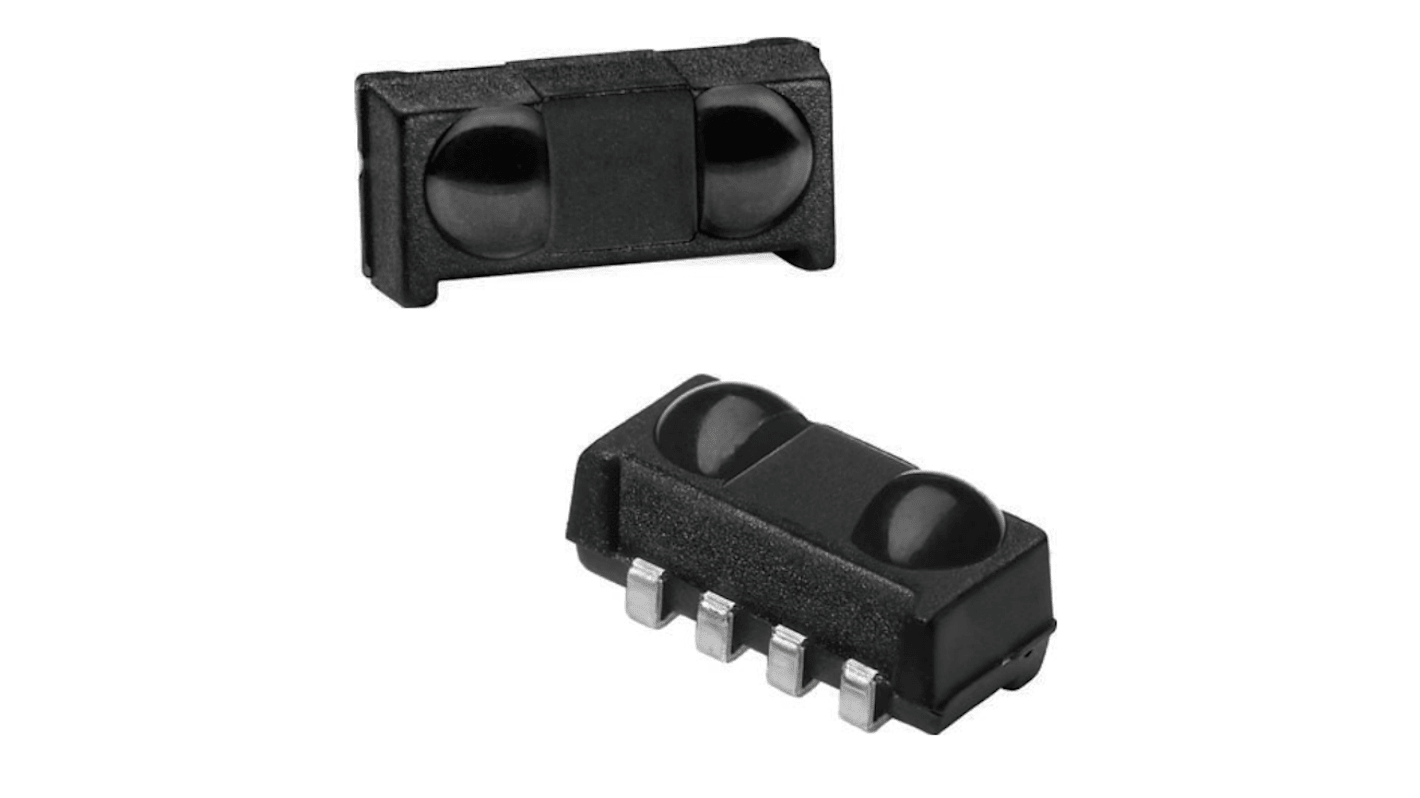

This image is representative of the product range
Subtotal (1 reel of 2300 units)*
PHP160,091.50
(exc. VAT)
PHP179,303.40
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Reel* |
|---|---|---|
| 2300 + | PHP69.605 | PHP160,091.50 |
*price indicative
- RS Stock No.:
- 228-054
- Mfr. Part No.:
- TSMP95100XVTR
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 10m | |
| Angle of Half Transmission Distance | ±50° | |
| Maximum Supply Voltage | 6V | |
| Minimum Supply Voltage | -0.3V | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 10m | ||
Angle of Half Transmission Distance ±50° | ||
Maximum Supply Voltage 6V | ||
Minimum Supply Voltage -0.3V | ||
- COO (Country of Origin):
- PH
The Vishay IR Receiver Module is designed for use in infrared remote control systems. It features a PIN diode and preamplifier assembled on a lead frame, with an epoxy package that includes an integrated IR filter to enhance signal clarity. The module provides a modulated output signal, carrier out which can be used for repeater applications and code learning, enabling the amplification and processing of IR signals for a variety of remote control functionalities.
High sensitivity and wide receiving angle
Improved shielding against electrical field disturbance
AGC to suppress ambient noise
