RS PRO 750mm Galvanised Steel Wire Hydraulic Hose Assembly, 190 bar Max Pressure
- RS Stock No.:
- 110-2244
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
PHP2,309.89
(exc. VAT)
PHP2,587.08
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | PHP2,309.89 |
*price indicative
- RS Stock No.:
- 110-2244
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hydraulic Hose Assembly | |
| Connection Gender A | Female | |
| Connection Size A | 1/4 in | |
| Connection Standard A | G | |
| Connection Type A | Threaded | |
| Overall Length | 750mm | |
| Inside Diameter | 6.35mm | |
| Connection Standard B | G | |
| Connection Type B | Threaded | |
| Connection Size B | 1/4 in | |
| Connection Gender B | Female | |
| Maximum Operating Pressure | 190 bar | |
| Inner Hose Material | Synthetic Rubber | |
| Reinforcing Material | Steel | |
| Cover Material | Galvanised Steel Wire | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 121°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hydraulic Hose Assembly | ||
Connection Gender A Female | ||
Connection Size A 1/4 in | ||
Connection Standard A G | ||
Connection Type A Threaded | ||
Overall Length 750mm | ||
Inside Diameter 6.35mm | ||
Connection Standard B G | ||
Connection Type B Threaded | ||
Connection Size B 1/4 in | ||
Connection Gender B Female | ||
Maximum Operating Pressure 190 bar | ||
Inner Hose Material Synthetic Rubber | ||
Reinforcing Material Steel | ||
Cover Material Galvanised Steel Wire | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 121°C | ||
Standards/Approvals RoHS | ||

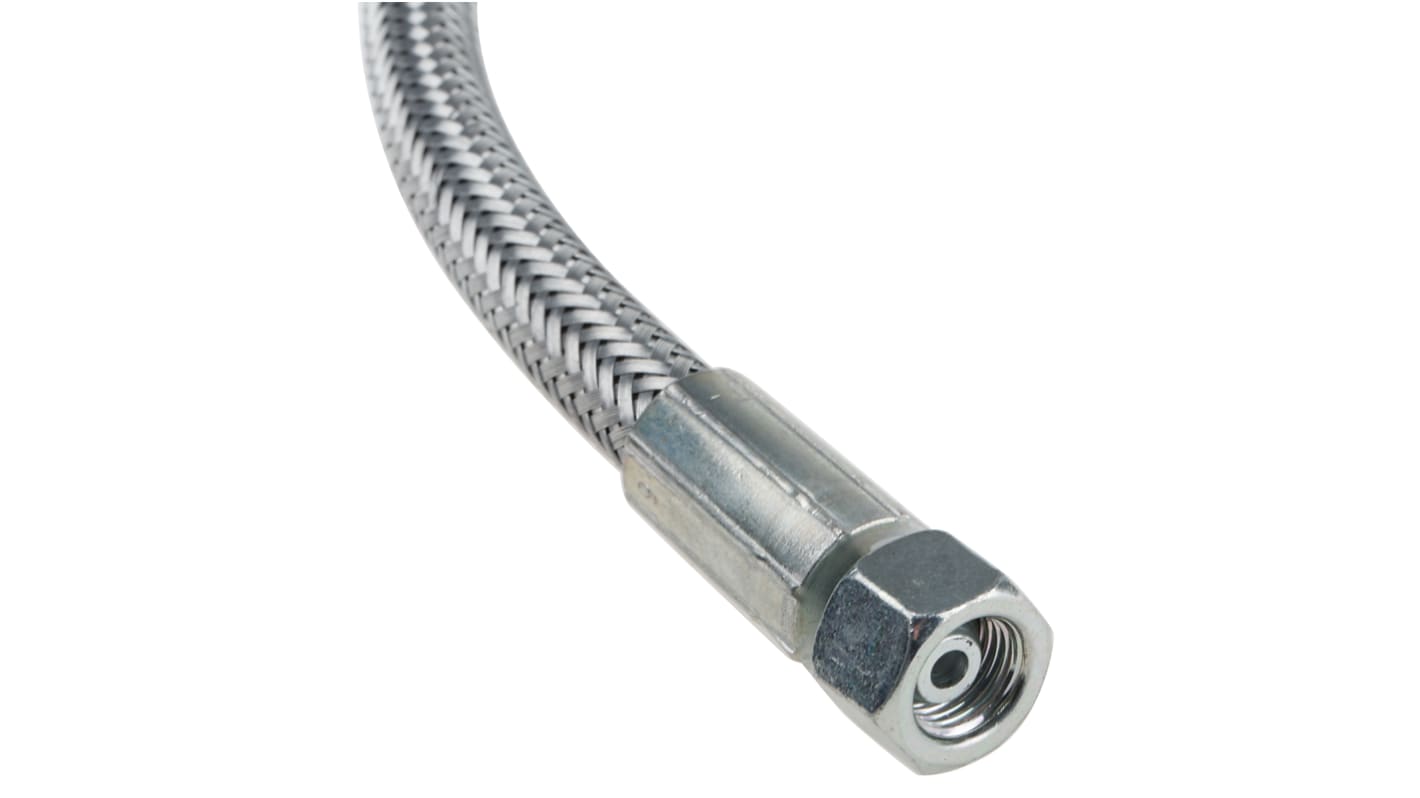

RS PRO Wire Covered Hydraulic Hose
Get connected with RS PRO hydraulic hose assemblies. Our assemblies consist of galvanised steel wire outer covering and high tensile steel wire reinforcing. The hose is flexible, crimped with a female-to-female end fitting ready to connect to other hydraulic components. During application, the hose transmits hydraulic fluid from one location to another in a hydraulic system.
Features and Benefits
Specifications
Applications
Applications include medium-pressure service with petroleum base hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude and fuel oils, air and water.
