RS PRO Hose Connector 12.7 mm ID Threaded, 25 bar
- RS Stock No.:
- 146-3028
- Distrelec Article No.:
- 304-03-981
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 box of 10 units)*
PHP1,785.74
(exc. VAT)
PHP2,000.03
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 45 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from May 12, 2026
- Plus 15 unit(s) shipping from July 06, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per Unit* |
|---|---|---|
| 1 - 1 | PHP1,785.74 | PHP178.574 |
| 2 - 3 | PHP1,746.46 | PHP174.646 |
| 4 + | PHP1,437.34 | PHP143.734 |
*price indicative
- RS Stock No.:
- 146-3028
- Distrelec Article No.:
- 304-03-981
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hose Connector | |
| Hose Inside Diameter | 12.7mm | |
| Sub Type | Connector | |
| Connection Gender A | Male | |
| Connection Size A | 3/4 in | |
| Connection Type A | Threaded | |
| Body Material | Brass | |
| Maximum Operating Pressure | 25 bar | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hose Connector | ||
Hose Inside Diameter 12.7mm | ||
Sub Type Connector | ||
Connection Gender A Male | ||
Connection Size A 3/4 in | ||
Connection Type A Threaded | ||
Body Material Brass | ||
Maximum Operating Pressure 25 bar | ||
Standards/Approvals No | ||
RoHS Status: Exempt

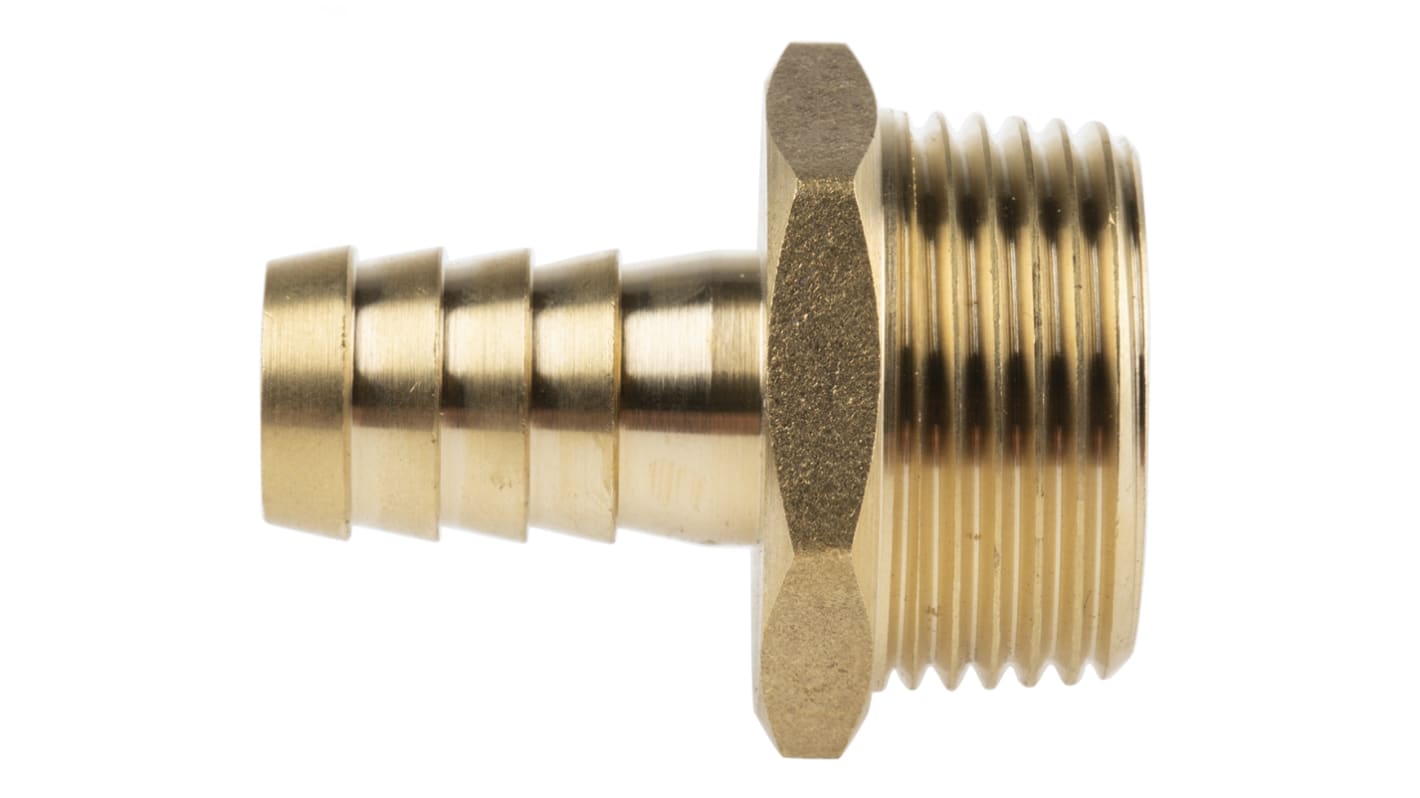

RS PRO Straight Brass Hose Connector, 3/4 in BSP Male
Use this hose connector from RS PRO to join a hose to an industrial water gun or other device. You're assured a free flow of fluids, thanks to its straight body orientation. It's made from corrosion-resistant brass, so you can expect a long service life. It also comes with a three-year warranty for additional peace of mind. These connectors are supplied in boxes of 10.
Making a secure connection using this component is extremely simple. First, push the serrated tail of the connector into the hose. Then, screw the male threaded connection on the other end into whatever you're affixing the hose to. If you need a tighter connection or have to loosen your join, there's a hex nut that can be tightened or loosened with a spanner. Hose connectors such as this one are suitable for general washdown applications in industrial environments such as clean rooms and car washes.
Features and Benefits
• Brass body
• Male connector and male threaded connection
• Straight coupling type
• Inner diameter of hose is 1/2 in
• Thread size of 3/4 in (British Standard Pipe size, BSP)
