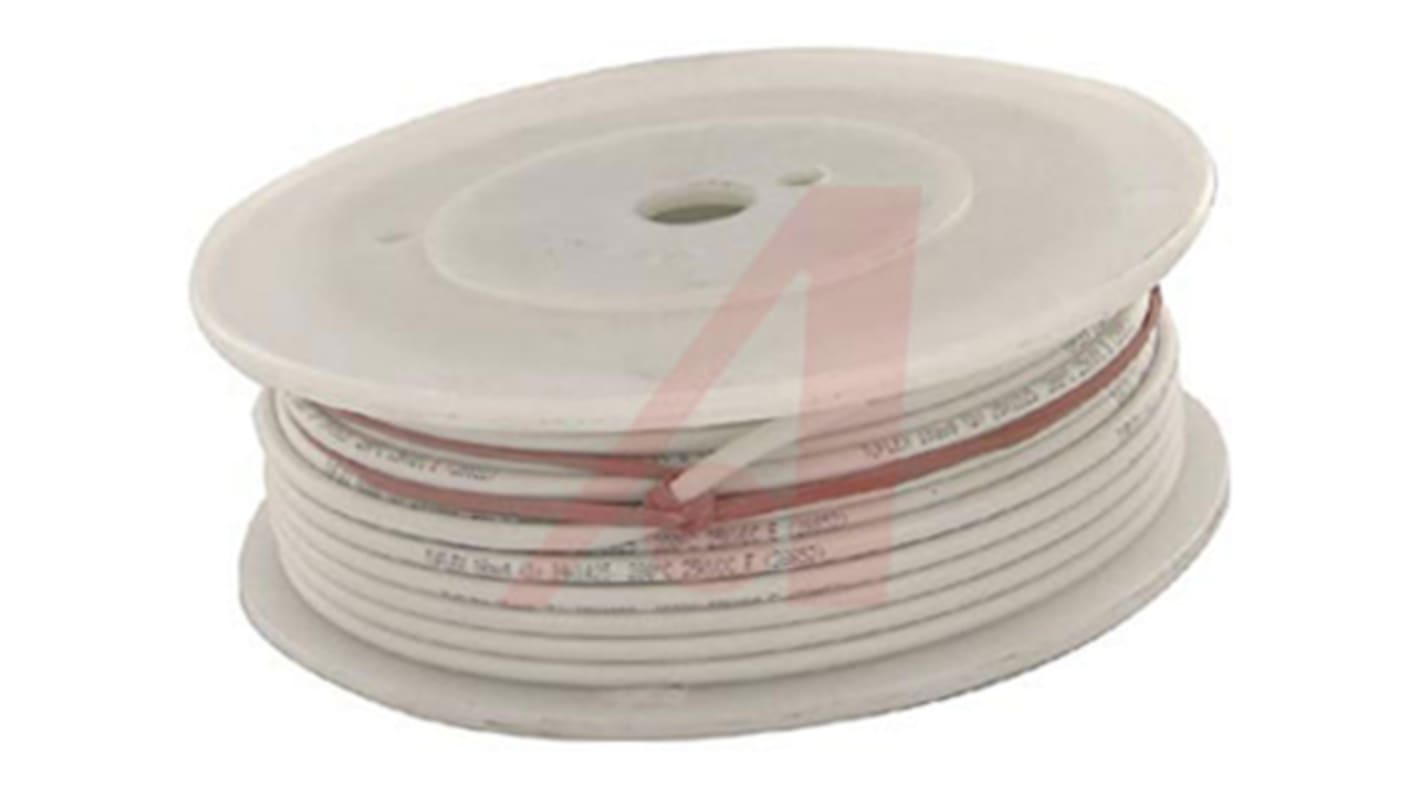

Alpha Wire Hook-up Wire Silicone Series White 0.75 mm² Hook Up Wire, 18 AWG, 19/0.25 mm, 30.5m, Silicone Insulation,
- RS Stock No.:
- 904-3801
- Mfr. Part No.:
- 39X1825 WH005
- Manufacturer:
- Alpha Wire
Subtotal (1 unit)*
PHP42,781.45
(exc. VAT)
PHP47,915.22
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 12 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from April 28, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP42,781.45 |
*price indicative
- RS Stock No.:
- 904-3801
- Mfr. Part No.:
- 39X1825 WH005
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.75 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 18 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 19/0.25 mm | |
| Length | 30.5m | |
| Insulation Material | Silicone | |
| Outer Diameter | 4.06mm | |
| Voltage Rating | 25 kV | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +200°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | CA Prop 65, RoHS Compliant, UL VW-1 | |
| Wire Style | UL3239 | |
| Cable Type | Single Core | |
| Series | Hook-up Wire Silicone | |
| Tri-rated | No | |
| Shield Type | None | |
| Insulation Wall Thickness | 1.4mm | |
| Hook Up Wire Type | High Temperature | |
| Number of Strands | 19 | |
| Size of Strands | 0.25 mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.75 mm² | ||
Sheath Colour White | ||
American Wire Gauge 18 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 19/0.25 mm | ||
Length 30.5m | ||
Insulation Material Silicone | ||
Outer Diameter 4.06mm | ||
Voltage Rating 25 kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +200°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met CA Prop 65, RoHS Compliant, UL VW-1 | ||
Wire Style UL3239 | ||
Cable Type Single Core | ||
Series Hook-up Wire Silicone | ||
Tri-rated No | ||
Shield Type None | ||
Insulation Wall Thickness 1.4mm | ||
Hook Up Wire Type High Temperature | ||
Number of Strands 19 | ||
Size of Strands 0.25 mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Belden Hook-up Wire Silicone Series Hook Up Wire, 0.75mm² Cross Sectional Area, White Sheath Colour - 39X1825 WH005
This hook-up wire is designed for high-temperature applications within the electronics and automation sectors. Featuring a cross-sectional area of 0.75 mm², this wire is built to withstand a maximum operating temperature of +200 °C and a minimum of -40 °C. The wire is insulated with silicone, offering reliable durability and flexibility. At a length of 30.5 m, it provides ample reach for various applications.
Features & Benefits
• Constructed from silver-plated copper to enhance conductivity
• Rated for up to 25 kV, ensuring high voltage resilience
• Silicone insulation provides oil and chemical resistance
• 18 AWG size suitable for a broad range of applications
• Complies with UL3239 standards for peace of mind
• 1.4mm insulation wall thickness enhances structural integrity
• Rated for up to 25 kV, ensuring high voltage resilience
• Silicone insulation provides oil and chemical resistance
• 18 AWG size suitable for a broad range of applications
• Complies with UL3239 standards for peace of mind
• 1.4mm insulation wall thickness enhances structural integrity
Applications
• Used in high-temperature electrical assemblies
• Utilised for wiring in industrial equipment
• Suitable for automation and control systems
• Implemented in devices requiring chemical resistance
• Employed in installations exposed to oil or solvents
• Utilised for wiring in industrial equipment
• Suitable for automation and control systems
• Implemented in devices requiring chemical resistance
• Employed in installations exposed to oil or solvents
What makes the insulation material a suitable choice for extreme environments?
The silicone insulation withstands high temperatures, ranging from -40 °C to +200 °C, while also offering significant resistance to oils and solvents, making it ideal for harsh environments.
How does this wire ensure safety in high-voltage applications?
Its voltage rating of 25 kV ensures robust performance even under demanding conditions, minimising the risk of electrical failures during operation.
Is this wire suitable for use in mechanical systems?
Yes, the combination of high conductivity from silver-plated copper and chemical resistance makes it ideal for use in mechanical systems where durability is essential.
What benefits does the 18 AWG sising provide in practical use?
The 18 AWG size balances flexibility and strength, allowing it to fit into tight spaces while providing sufficient current-carrying capacity for various electronic components.
