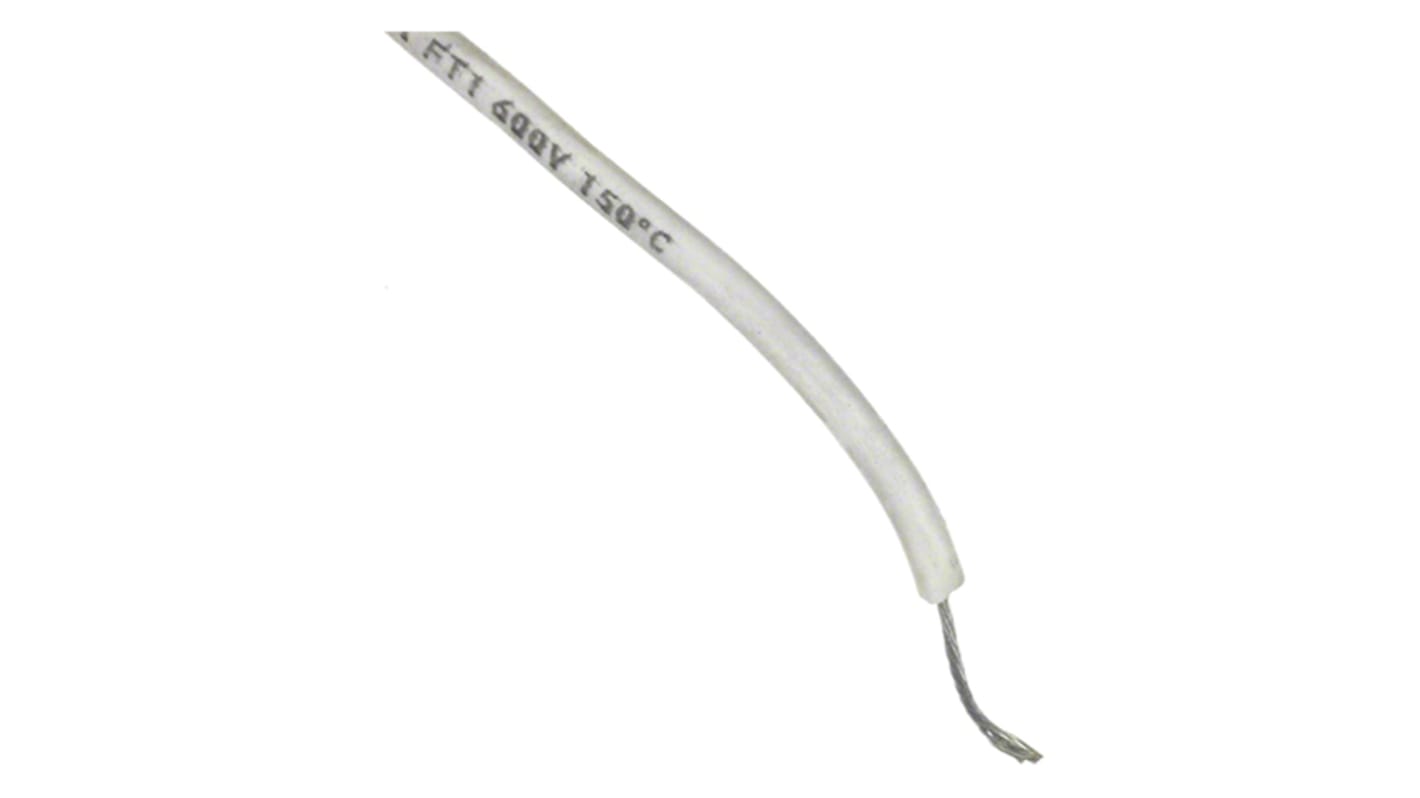

Alpha Wire Hook-up Wire Silicone Series White 0.33 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 30.5m, Silicone Insulation,
- RS Stock No.:
- 904-3696
- Mfr. Part No.:
- 392250 WH005
- Manufacturer:
- Alpha Wire
Subtotal (1 unit)*
PHP16,734.23
(exc. VAT)
PHP18,742.34
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 8 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from December 18, 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | PHP16,734.23 |
*price indicative
- RS Stock No.:
- 904-3696
- Mfr. Part No.:
- 392250 WH005
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Sheath Colour | White | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 7/0.25 mm | |
| Length | 30.5m | |
| Insulation Material | Silicone | |
| Voltage Rating | 20 kV | |
| Outer Diameter | 3.33mm | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | CA Prop 65, RoHS Compliant, UL AWM 3239, UL Listed | |
| Wire Style | UL3239 | |
| Series | Hook-up Wire Silicone | |
| Shield Type | None | |
| Insulation Wall Thickness | 1.3mm | |
| Number of Strands | 7 | |
| Size of Strands | 0.25 mm | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Sheath Colour White | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 22 AWG | ||
Core Strands 7/0.25 mm | ||
Length 30.5m | ||
Insulation Material Silicone | ||
Voltage Rating 20 kV | ||
Outer Diameter 3.33mm | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Standards Met CA Prop 65, RoHS Compliant, UL AWM 3239, UL Listed | ||
Wire Style UL3239 | ||
Series Hook-up Wire Silicone | ||
Shield Type None | ||
Insulation Wall Thickness 1.3mm | ||
Number of Strands 7 | ||
Size of Strands 0.25 mm | ||
Non Compliant
Belden Hook-up Wire, 30.5m Length, 22AWG Wire Gauge - 392250 WH005
This hook-up wire is designed for high temperature applications and features robust silicone rubber insulation. With a length of 30.5m and an outer diameter of 3.33mm, it offers an impressive voltage rating of 20 kV and operates within a wide temperature range of -40 to +150°C.
Features & Benefits
• High temperature hook-up wire withstands extreme conditions
• Silicone rubber insulation ensures flexibility and durability
• Tinned copper construction enhances conductivity and corrosion resistance
• Chemical resistant wire is ideal for harsh environments
• UL listed for safety and compliance with industry standards
• Oil resistant electrical wire protects against damaging substances
• Silicone rubber insulation ensures flexibility and durability
• Tinned copper construction enhances conductivity and corrosion resistance
• Chemical resistant wire is ideal for harsh environments
• UL listed for safety and compliance with industry standards
• Oil resistant electrical wire protects against damaging substances
Applications
• Used for connecting electronic components in hot environments
• Utilised in automation systems requiring durable wiring solutions
• Suitable for electrical and mechanical needing flexibility
• Ideal for industrial equipment exposed to chemicals and oils
• Effective in with elevated voltage requirements
• Utilised in automation systems requiring durable wiring solutions
• Suitable for electrical and mechanical needing flexibility
• Ideal for industrial equipment exposed to chemicals and oils
• Effective in with elevated voltage requirements
What insulation material contributes to the wire’s performance in extreme temperatures?
The wire features silicone rubber insulation, which remains flexible and stable across a temperature range of -40 to +150°C, ensuring it performs reliably in high-temperature environments.
How does the wire’s construction affect its resistance to chemicals?
With a tinned copper conductor and silicone insulation, it offers superior resistance to oils, solvents, and chemicals, making it suitable for demanding applications in industrial settings.
What voltage can this electrical wire safely handle?
It is rated for a maximum voltage of 20 kV, enabling its use in high-voltage applications while ensuring safety and reliability throughout its operational lifespan.
